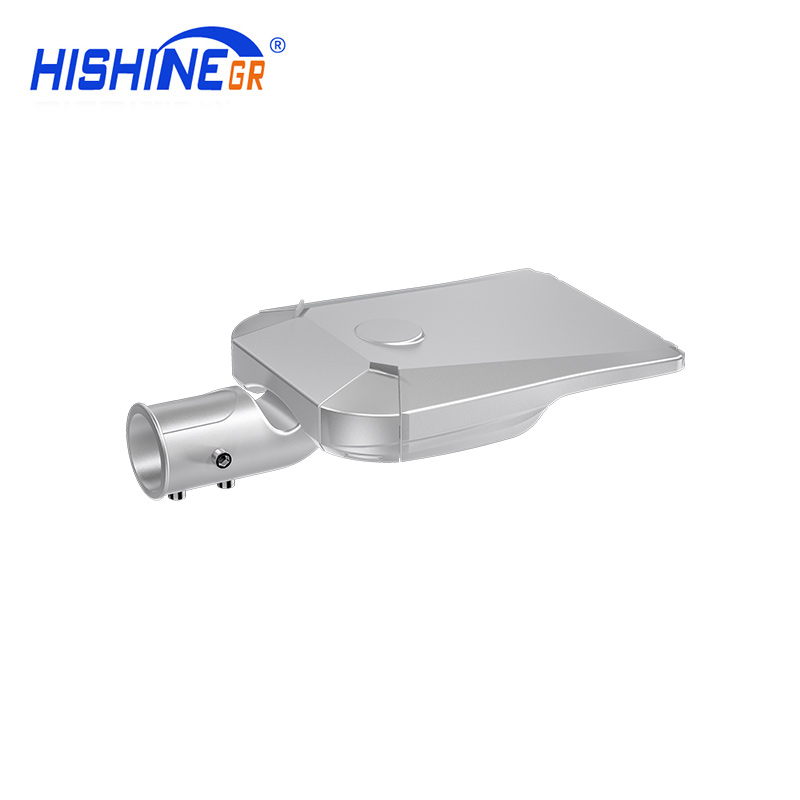

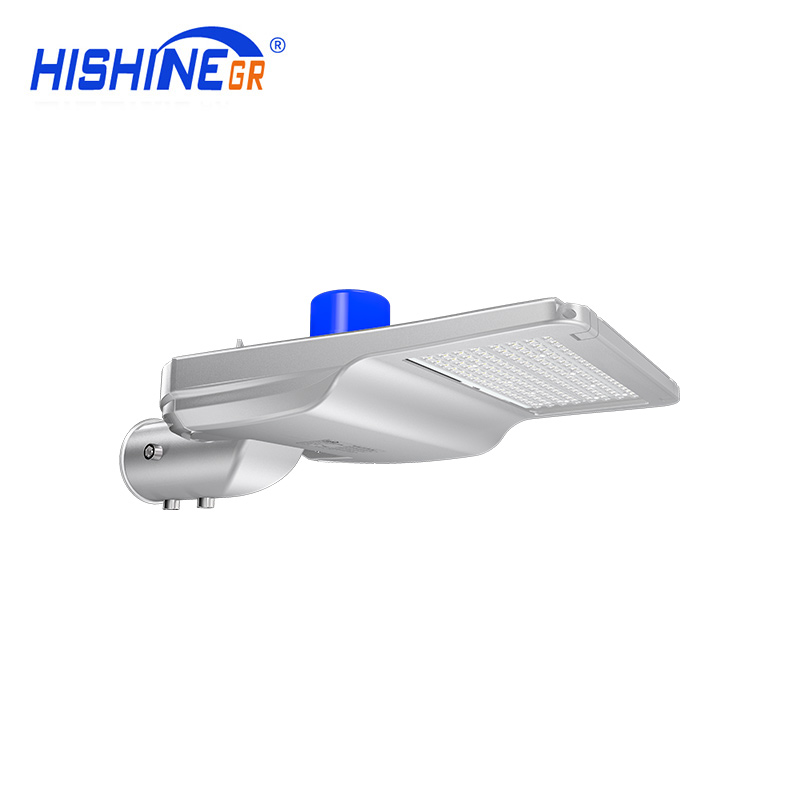

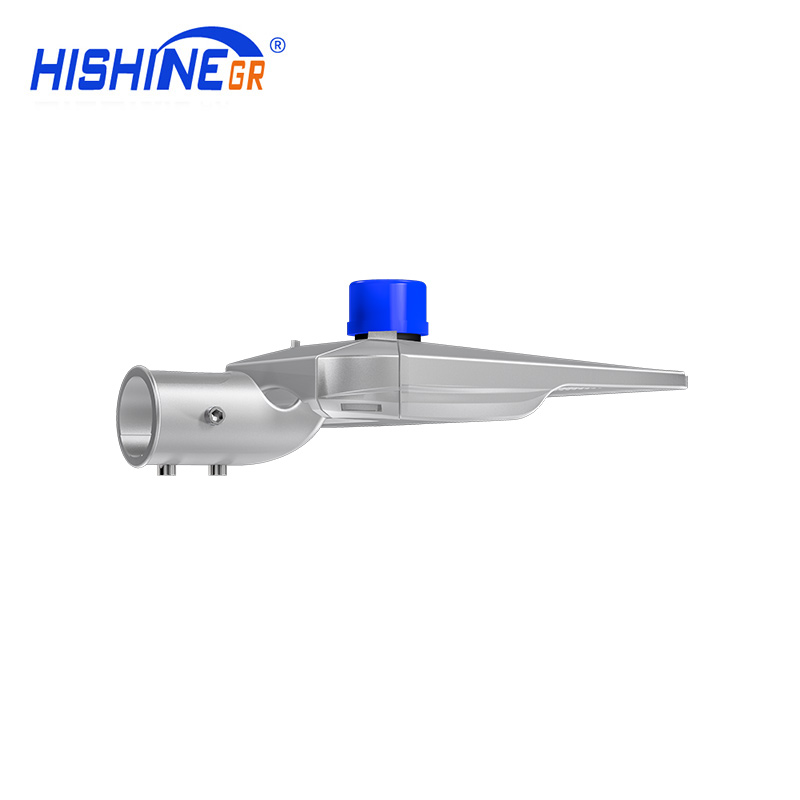

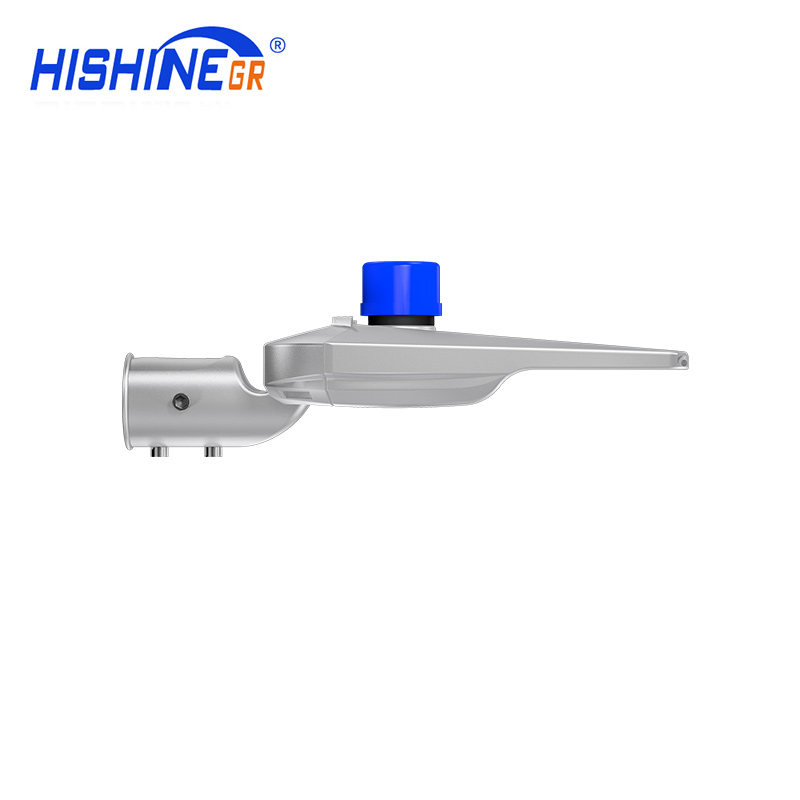

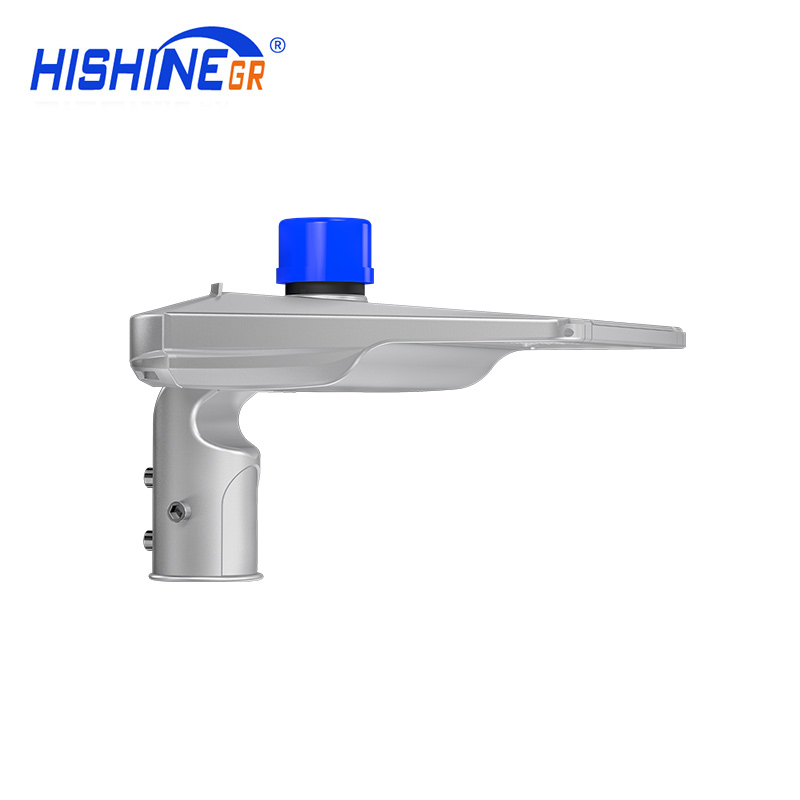

Hi-Slim LED Street Light 45W 75W 100W

Description

HISHINE launched Hi-Slim series of Led Street light-B. It is equipped with LED indicators and various dimming and remote management options, which can significantly reduce energy consumption. It provides a very competitive alternative for lamps equipped with traditional light sources (such as high-pressure sodium lamps).

By providing higher value to municipalities and facility managers, continue to improve performance standards and reduce total cost of ownership. The new Hi-Slim street lamp has an unmatched lumen output, can be used for road lighting and economic performance, expanding the range of applications, can replace up to 200W HPSV / MH street lamps.

The Hi-Slim series is ideal for a variety of road applications, helping to increase the economic value of development departments, municipalities or own utilities. Made of die-cast aluminum to provide effective heat dissipation. This will ensure that the LEDs and drivers will operate at low temperatures during operation and can last 5 to 10 years!

Hi-Slim Led Street Light Product Specifications

Key Features Of Hi-Slim Led Street Light

1. Ultra slim heat sink design makes the lamp lighter and better in heat dissipation

2. High lumen SMD3030/SMD5050 chip

3. Waterproof IP67,high thermal conductivity housing

4. Beam angle Type II,III,IV  glass lens with transmittance 92%

5.Maximised savings on energy and maintenance costs

6.Contractor-friendly installation and maintenance

7.Minimal total cost of ownership

8.Flexible and intelligent lighting control options

9.Low windage and lightweight

Hi-Slim Led Street Light Product Parameters

(5050 Chip Series)

Part Number	HS-SL45W-B	HS-SL75W-B	HS-SL100W-B
Wattage	45W	75W	100W
Lumen Output	6975lm	11625lm	15500lm
LED Quantity	40pcs	80pcs	80pcs
LED Chip	Lumileds 5050
Luminous Efficacy	155LM/W
Beam Angle	TypeII,TypeIII

(3030 Chip Series)

Part Number	HS-SL45W-B	HS-SL75W-B	HS-SL100W-B
Wattage	45W	75W	100W
Lumen Output	5850lm	9750lm	13000lm
LED Quantity	77pcs	154pcs	154pcs
Size(MM)	L378*W280*H82
LED Chip	Lumileds 3030
Luminous Efficacy	130LM/W
CCT	3000K-6500K
CRI	≥80
Beam Angle	TypeII,TypeIII,TypeIV
IP Rating	IP66
Working Temperature	-30℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Die-casting Aluminum housing+PC lens+Tempered glass cover



Hi-Slim Led Street Light Highlights

Hi-Slim LED Street Light Lens And Beam Angle

Hi-Slim LED Street Light Smart City Lighting

Hi-Slim Smart lighting includes 0-10V Dimming,Timer Control, Photocell, Occupancy sensor,DALI Control,Solar Compatible

Hi-Slim LED Street Light Tool-Free LED Driver Replacement

Hi-Slim LED Street Light With Buckle

Hi-Slim LED Street Light Power-Off Protection

Hi-Slim LED Street Light Vent

There are two vents with a balanced atmosphere

Pressure and moisture prevention

Hi-Slim LED Street Light Multiple Mounting Options

Hi-Slim LED Street Light Applications

Widely use in high way, parking lot area, roadway, pathway, square,stadium,residential area,yard,industrial area and etc.
