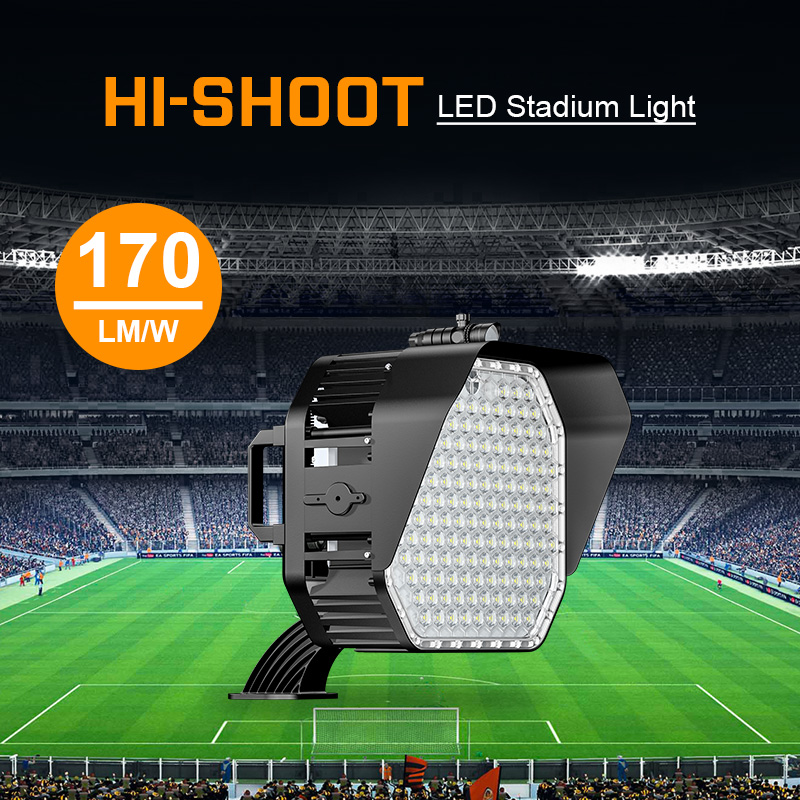

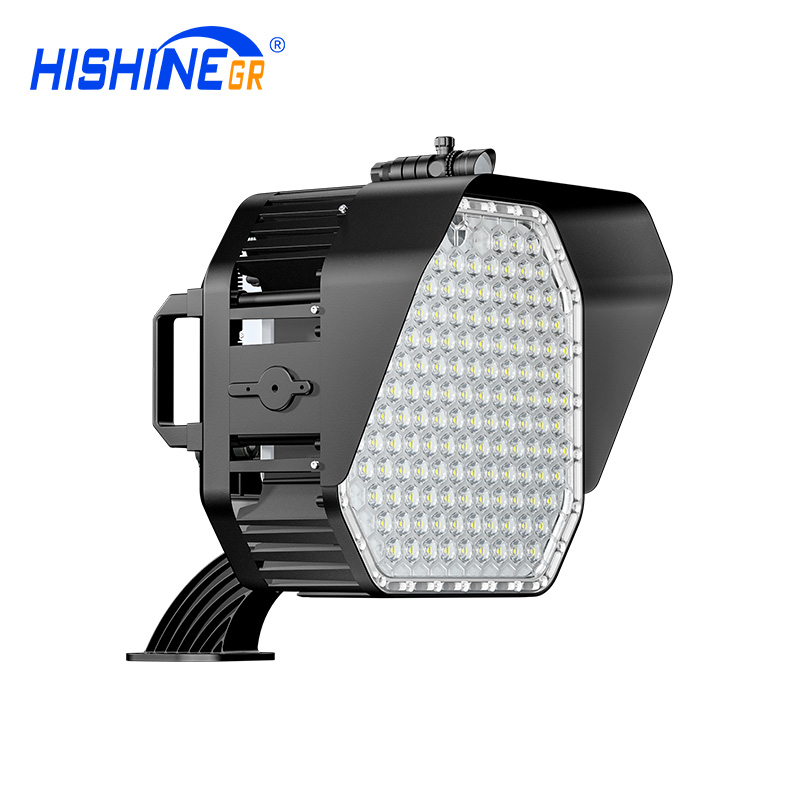

LED Stadium Light 600W

Product Parameters:

  • Product Name: Hi-Shoot Series LED Stadium Lights
  • Wattage: 600W
  • Luminous Efficacy: 170lm/w
  • Beam Angle: 20°/30°/45°/60°
  • Supply Voltage: 100-227V/347V/480V AC
  • Certification: UL, DLC, CB, SAA, IK10, IP67

Product Details


LED Stadium Light 600W插图


Hi-Shoot provides safety and security for a variety of high-quality outdoor area lighting. Hi-Shoot LED Stadium Light has excellent appearance, performance and durability, and can provide versatility while meeting your outdoor lighting requirements.


Hi-Shoot LED Stadium Light Product Specifications


LED Stadium Light 600W插图1


Hi-Shoot LED Stadium Light Structure


LED Stadium Light 600W插图2


Hi-Shoot LED Stadium Light Product Parameters


 Part Number HS-HM600W-A
 Wattage 600W
 Lumen Output 102000lm
 LED Quantity 144pcs
 Size(MM) L397*W369*H174
 LED Chip Lumileds 7070
 Luminous Efficacy 170LM/W
 CCT 3000K-6500K
 CRI ≥80
 Beam Angle 20°/30°/45°/60°
 IP Rating IP67
 Working Temperature -30℃ to +55℃
 Input Voltage AC100-277V/347V/480V, 50/60Hz, >0.92
 Warranty 7 years
 Lifespan >50,000hrs
 Material Die-casting Aluminum housing+PC lens


13 Allows You To Buy Hi-Shoot LED Stadium Light Reasons


1. Super bright

High lumen efficacy 170lm/w, saving cost by 40%

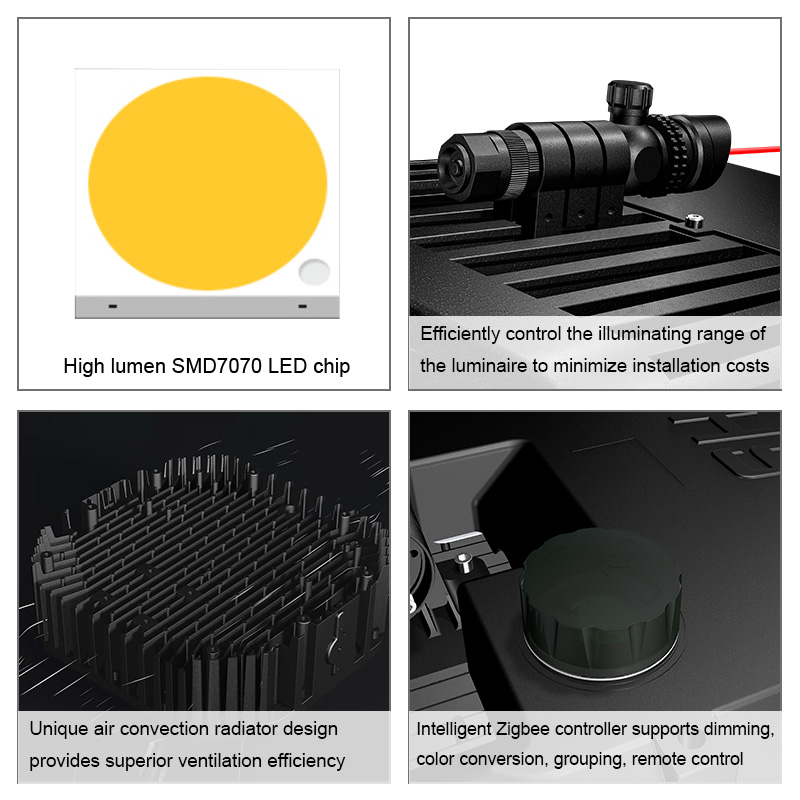

2. High light effect

High lumen SMD7070 LED chip, 40% stronger than SMD3030 penetration, 10% stronger than SMD5050 penetration


LED Stadium Light 600W插图3


3. Unique design

Anti-bird and leaves, independent cooling of light source and driver, which will reduce light decay.


4. Anti 17-level Wind Power

The air convection structure of the luminaire can effectively reduce the wind load, light weight and small windward surface, and has strong wind resistance.


LED Stadium Light 600W插图4

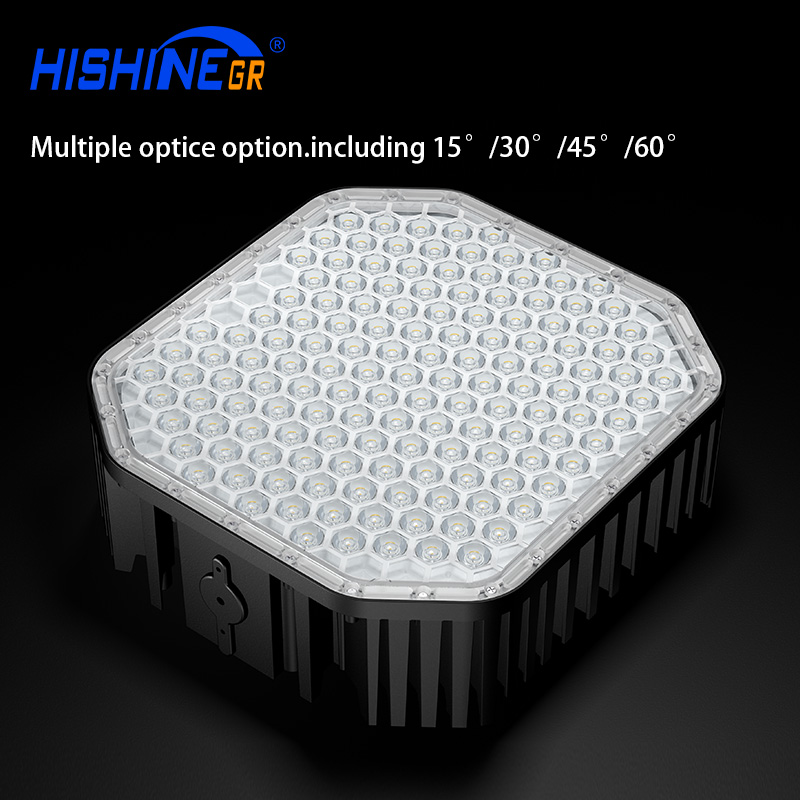

5. Various Beam Angle

Beam Angle: 15°, 30°, 45°, 60° are available. The lens adopts hexagonal honeycomb design and UV stabilized materials.


LED Stadium Light 600W插图5


6. Laser sight

Efficiently control the illuminating range of the luminaire to minimize installation costs


LED Stadium Light 600W插图6


7. Extraordinary Thermal Management

Unique air convection radiator design provides superior ventilation efficiency. Air is freely flowable among the pins in any direction, maximizing heat dissipation and lifespan of the LEDs.


LED Stadium Light 600W插图7


8. High Impact Resistance

Meet IK10 standards.Protected against 20 joules of impact (the equivalent to the impact of a 5kg mass dropped from 400mm above the impacted surface).


9. Support TV broadcast standard


10. Hood

To control the light pollution better especially needed when lamps are applied near the airport etc.


LED Stadium Light 600W插图8


11. High Protection Level up to IP67

silicone rubber ring sealing process, IP grade reach IP67,completely prevent dust invasion and heavy rain.


12. Intelligent Control

Intelligent Zigbee controller, supports wireless on/off, dimming, color turning, grouping, status monitoring, remote control, all simply and easily via smart-phone.

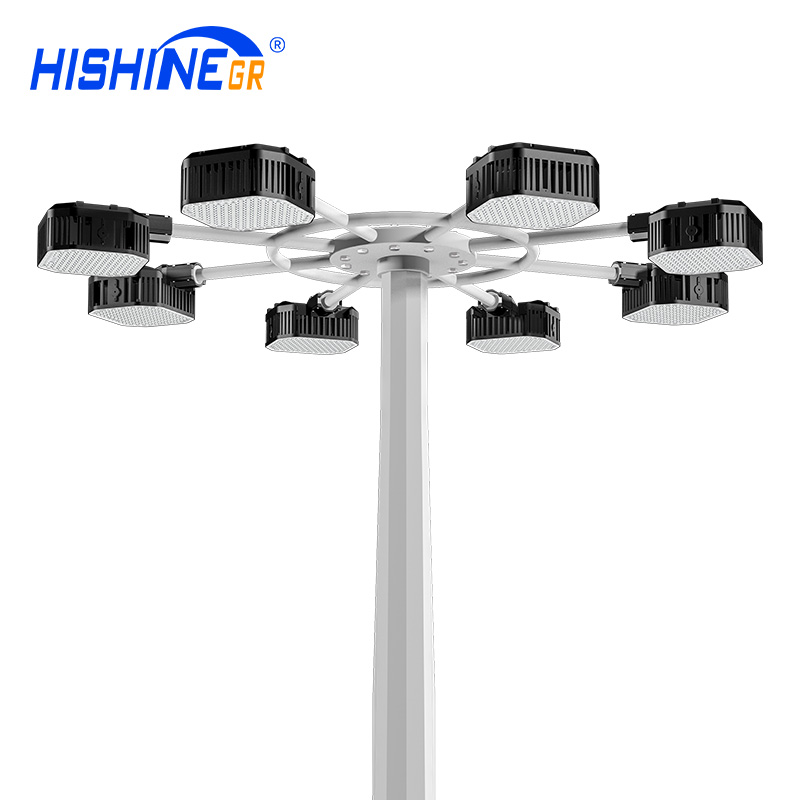

13. Hi-Shoot LED Stadium Light Multiple Mounting

LED Stadium Light 600W插图9

Hi-Shoot LED Stadium Light Applications

Various light distributions meets widely sports lighting applications : outdoor and indoor sports arenas, stadiums, etc. High mast flood lighting applications: expressways merge or intersect, airport, shipping terminals, heavy-industry zones, Highway rest area,Plazas, square, prison yards, etc.




LED Stadium Light 600W插图10LED Stadium Light 600W插图11LED Stadium Light 600W插图12

(Recommend a module splicing led stadium light for you)
