Reliable solar lighting for public road projects, helping reduce wiring work, simplify installation, and support stable nighttime visibility.
Hishine LED Lighting Manufacturer

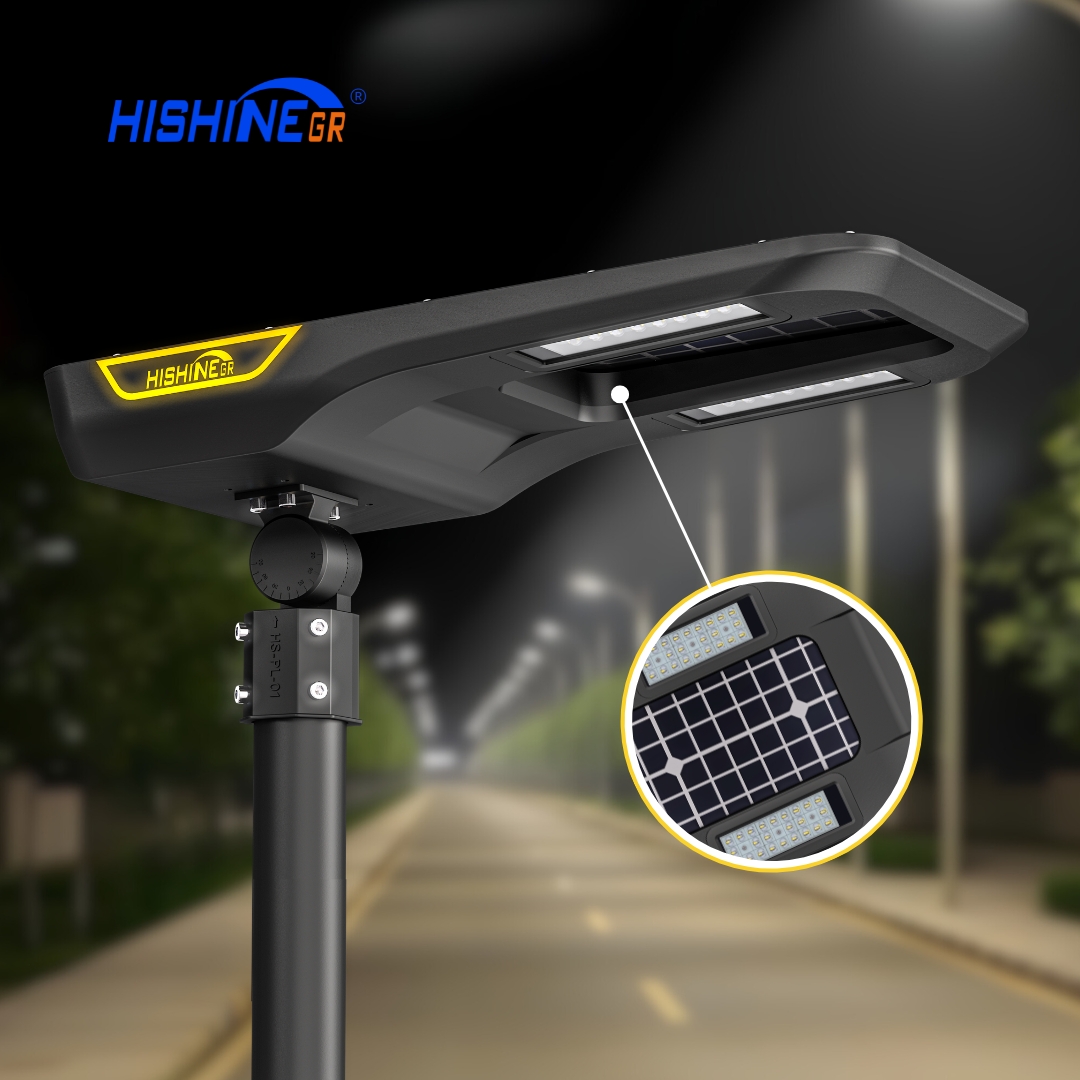

Hishine E Series All-in-One Solar LED Street Light
Hishine E Series All-in-One Solar LED Street Light is built for municipal roads, industrial parks, rural roads, parking lots, and remote off-grid lighting projects. It supports 30W-150W configurations, 3mm tempered glass lens, bifacial solar panel charging, MPPT control, microwave sensing, optional smart control, and solar-grid hybrid power for B2B project procurement.
Power
30W-150W
IP Rating
IP65
Warranty
5 years standard, project warranty options available
Certifications
CE, RoHS and project certification support available on request
Features
01
3mm Anti-UV Tempered Glass Lens
Impact-resistant lens that helps reduce oxidation, yellowing, and long-term optical aging for outdoor solar street lighting projects.
02

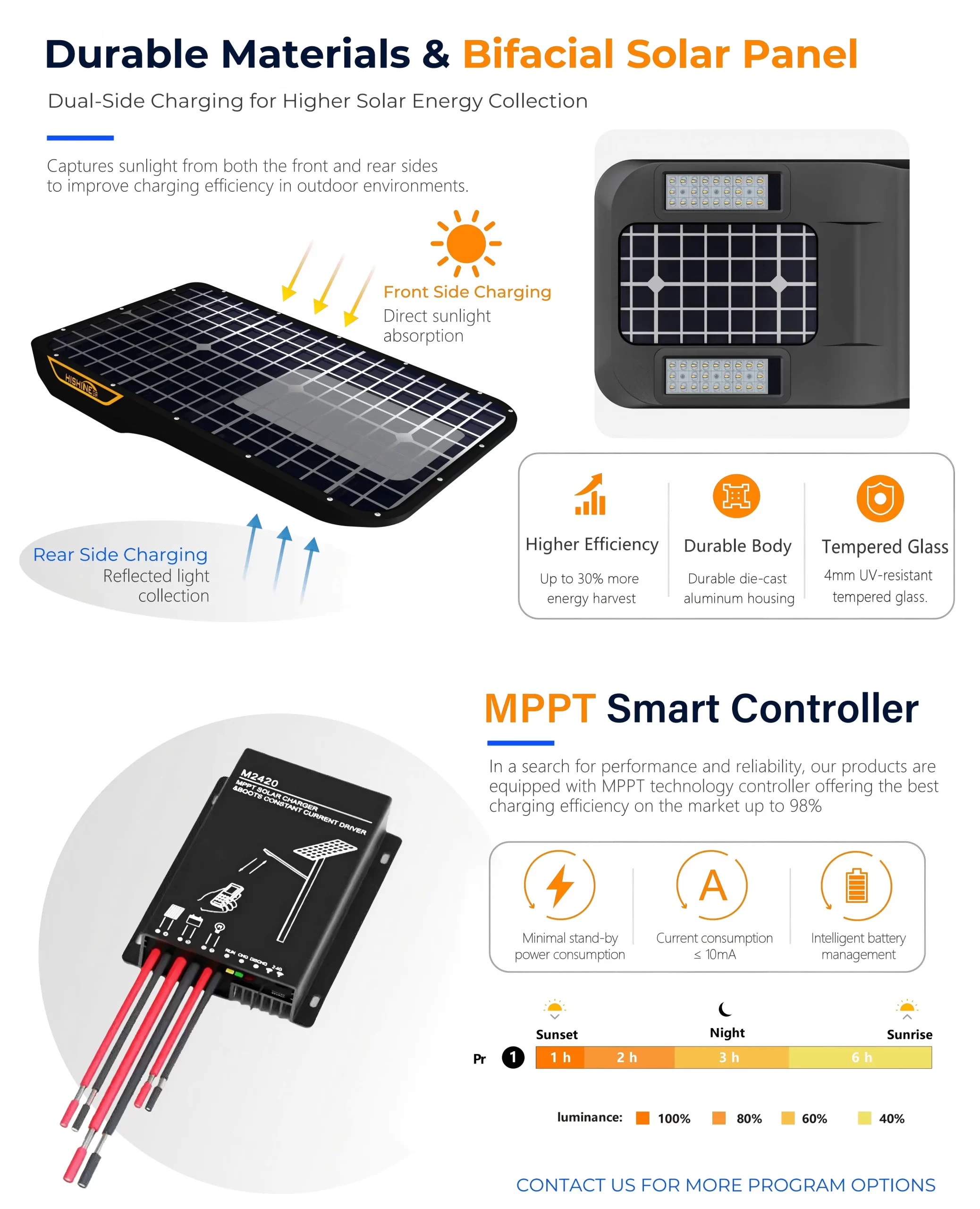

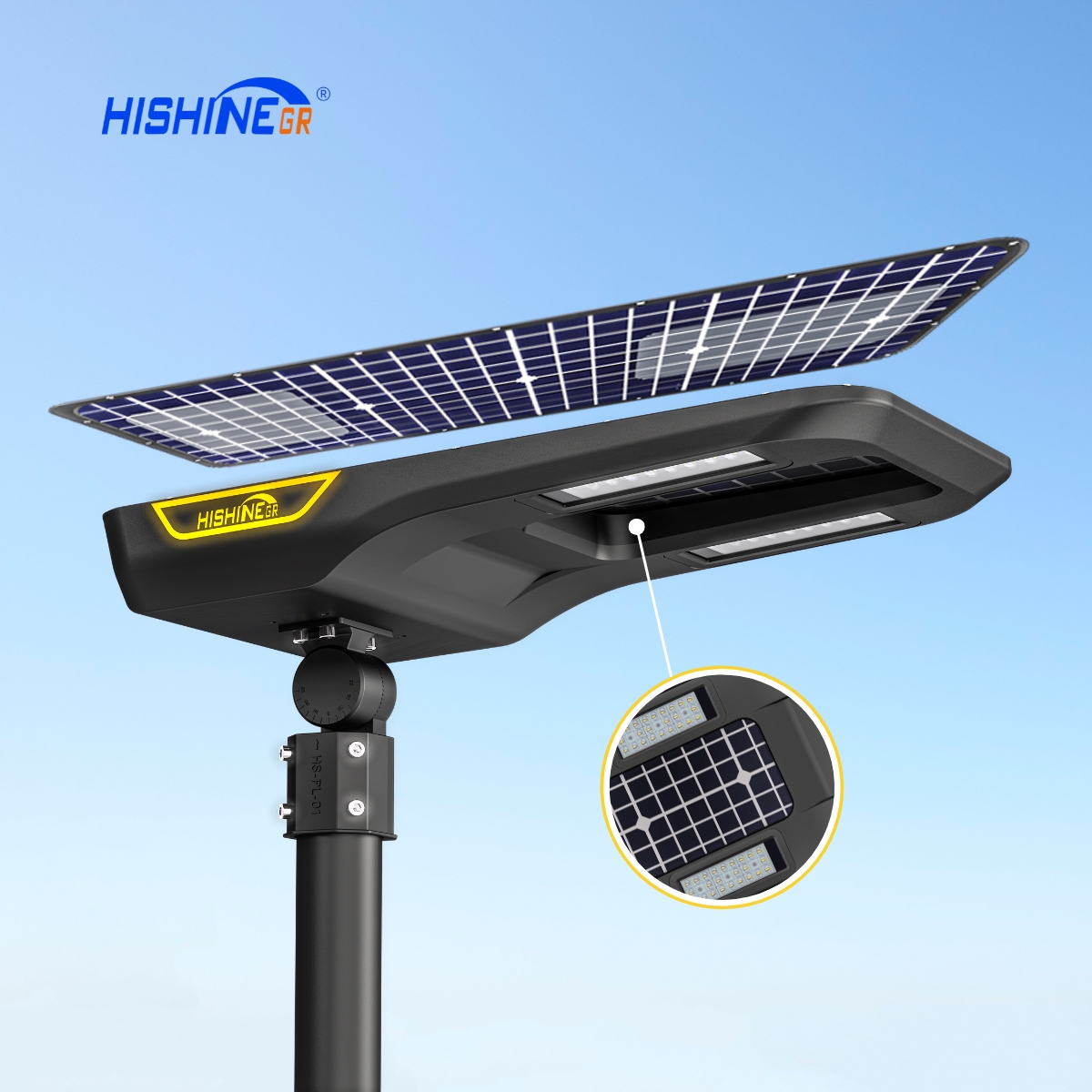

Bifacial Solar Panel
Bifacial solar panel design improves charging efficiency and helps capture more sunlight during daytime operation.
03

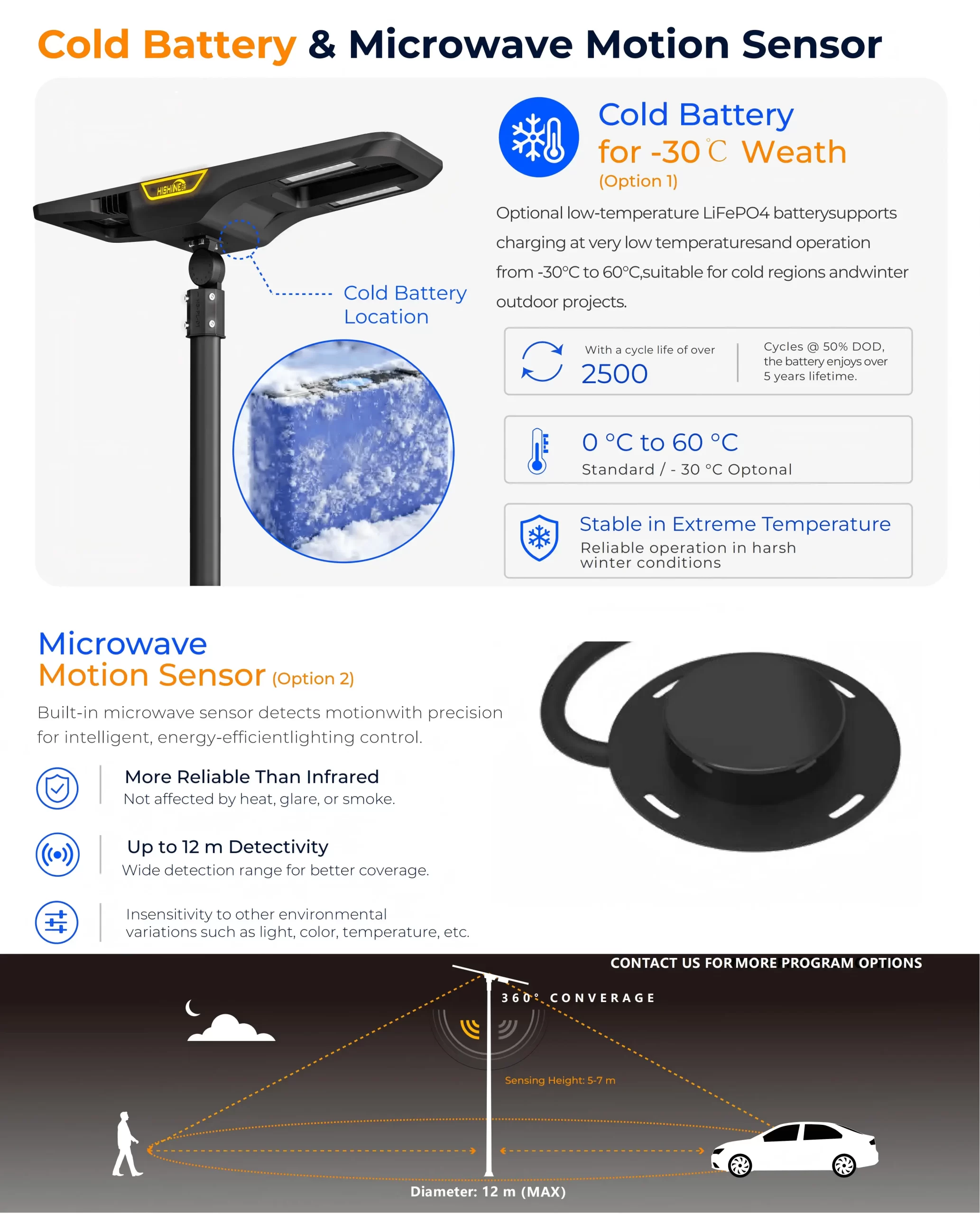

New Lithium Battery
Integrated lithium battery with optional low-temperature version for reliable operation from -30°C to 60°C.
04
MPPT Intelligent Controller
MPPT control improves charging efficiency, battery management, and overall system stability in changing weather conditions.
05

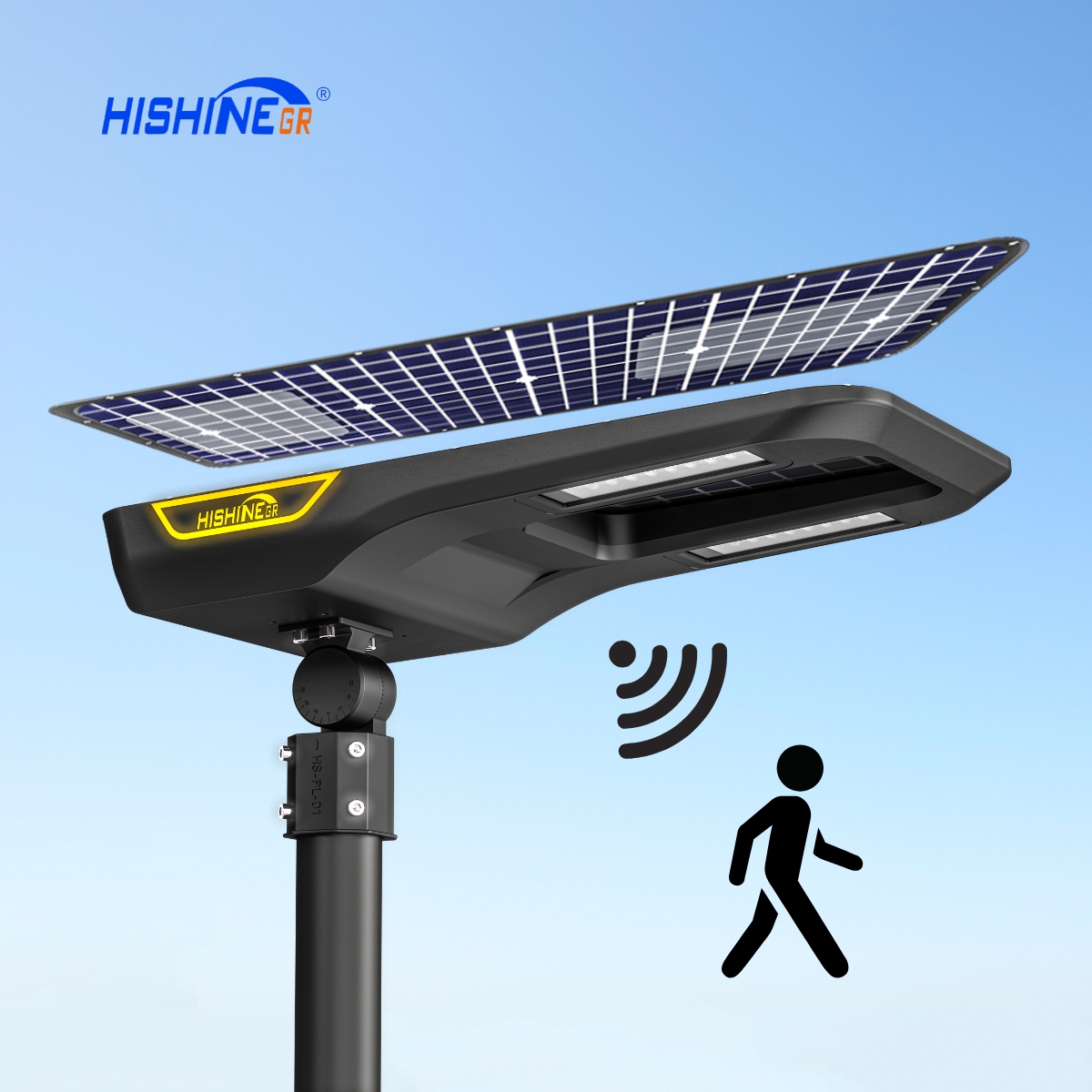

Microwave Motion Sensor
Microwave motion sensing helps reduce energy use by adjusting brightness based on movement detection.
06
Optional Smart Control System
Optional LoRa, 4G, 2.4G, and ZigBee control systems support remote monitoring and intelligent project management.
Specification

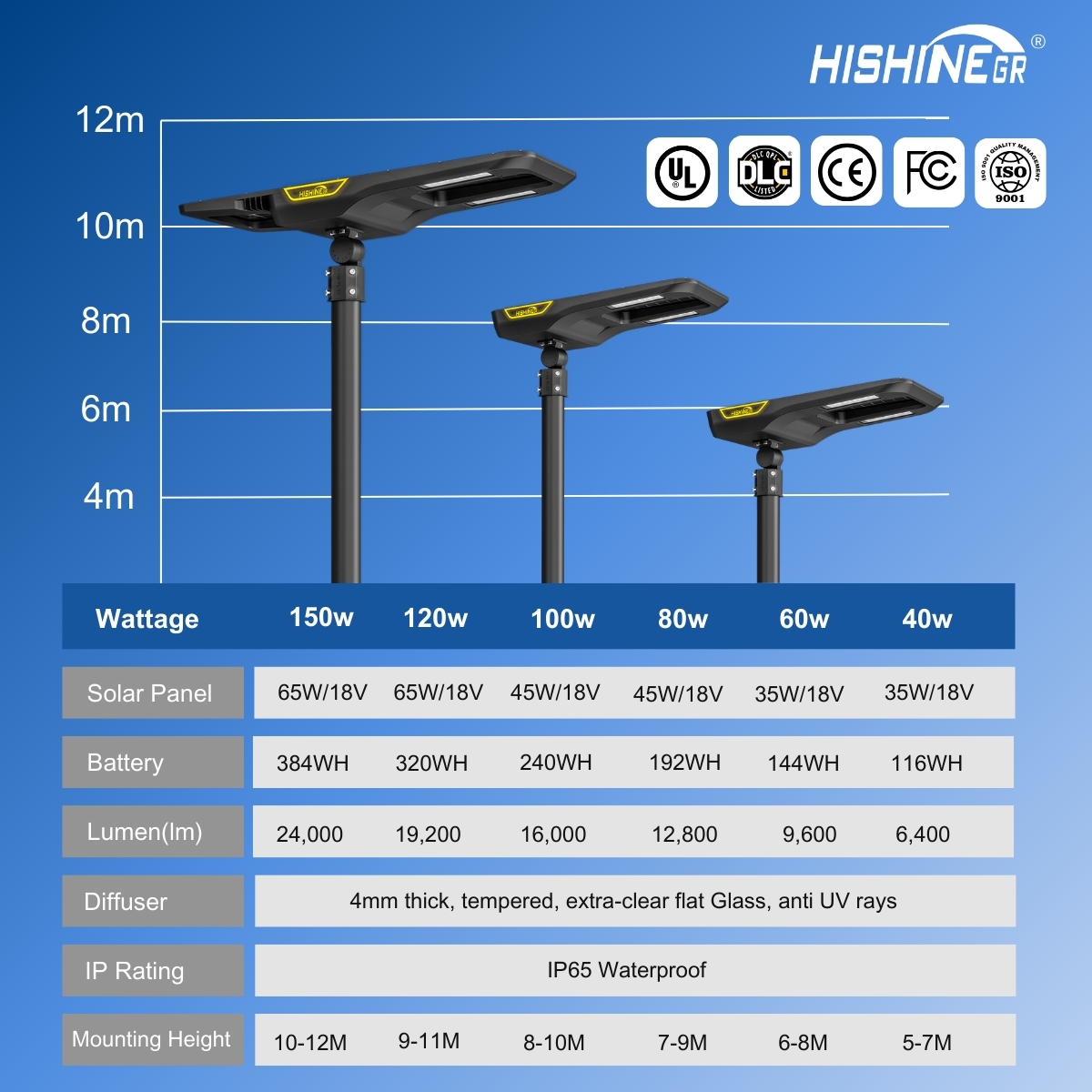

How to Choose the Right Wattage
Not sure which wattage to choose? Send us your pole height, road width, working hours, and project location.
Request Model Recommendation
30W-40W Pole Height: 4-6 m
Pathways, village roads, residential roads
60W Pole Height: 5-7 m
Campus roads, local streets, park paths
80W Pole Height: 6-8 m
Industrial park roads, parking areas, public roads
100W Pole Height: 9-10 m
Wider roads, factory roads, outdoor work areas
120W Pole Height: 10-11 m
Municipal roads, logistics parks, government projects
150W Pole Height: 12-13 m
Large road lighting projects, wider outdoor areas
Full Technical Specification
The following specifications are for standard E Series models. Final configuration can be adjusted according to project requirements, local sunshine conditions, working hours, and backup time.
| Model | Power | Solar Panel | Lithium Battery | Lamp Size (mm) | Mounting Height | Beam Angle | Lens Material |
|---|---|---|---|---|---|---|---|
| HS-SSL30W-E | 30W | 18V/35W | 96WH 3.2V | 675*382*88 | 4-6m / 73mm pole diameter | T2 / T3 | PC + Glass |
| HS-SSL40W-E | 40W | 18V/35W | 144WH 3.2V | 675*382*88 | 4-6m / 73mm pole diameter | T2 / T3 | PC + Glass |
| HS-SSL60W-E | 60W | 18V/35W | 144WH 3.2V | 675*382*88 | 5-7m / 73mm pole diameter | T2 / T3 | PC + Glass |
| HS-SSL80W-E | 80W | 18V/45W | 192WH 3.2V | 675*382*88 | 6-8m / 73mm pole diameter | T2 / T3 | PC + Glass |
| HS-SSL100W-E | 100W | 18V/45W | 240WH 3.2V | 675*382*88 | 9-10m / 73mm pole diameter | T2 / T3 | PC + Glass |
| HS-SSL120W-E | 120W | 18V/65W | 288WH 3.2V | 924*382*88 | 10-11m / 73mm pole diameter | T2 / T3 | PC + Glass |
| HS-SSL150W-E | 150W | 18V/65W | 336WH 3.2V | 924*382*88 | 12-13m / 73mm pole diameter | T2 / T3 | PC + Glass |

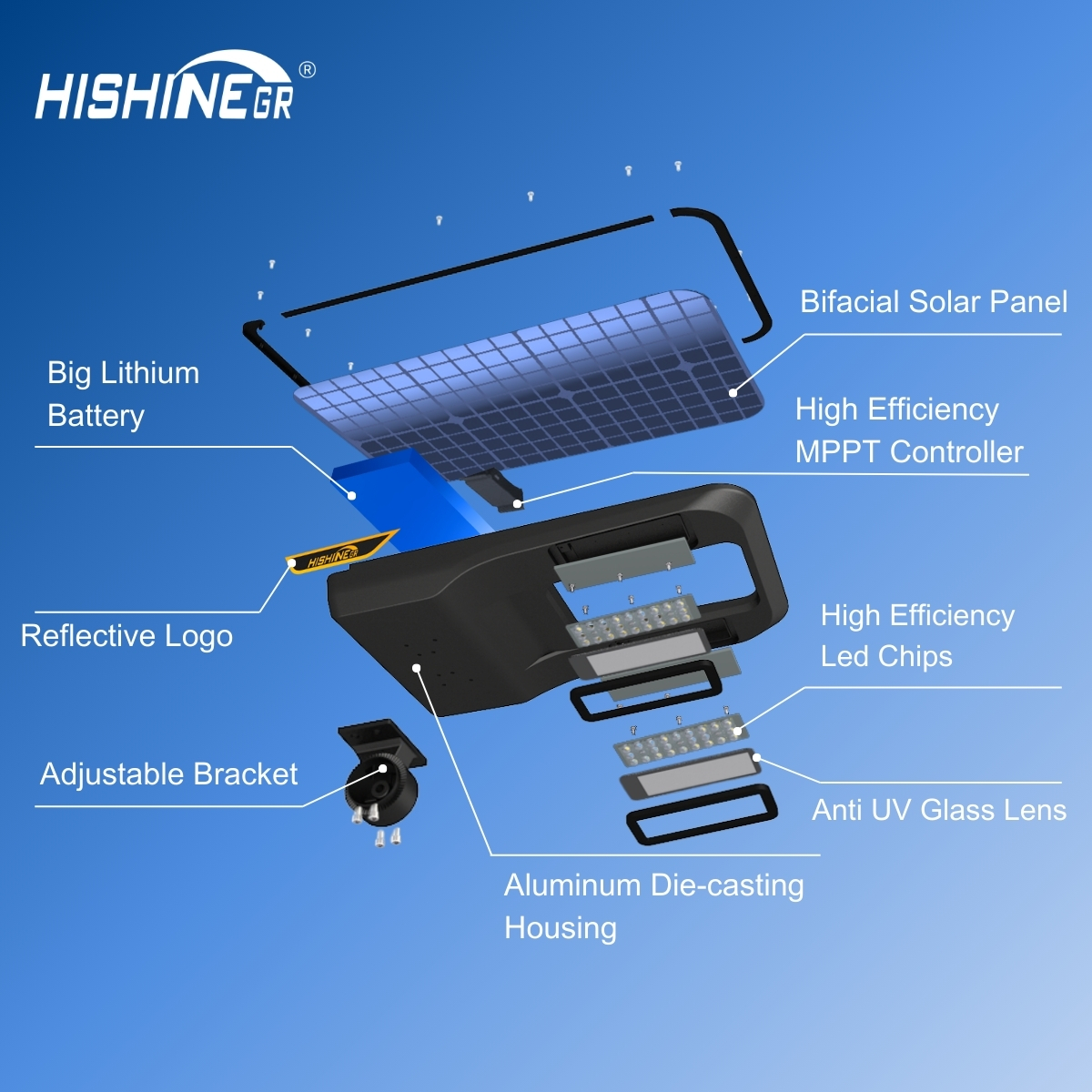

Integrated Solar Street Light System
The E Series integrates the solar panel, LED optical module, lithium battery, MPPT controller, microwave motion sensor, and mounting bracket into one compact structure. This all-in-one design helps reduce wiring work, simplify installation, and improve project efficiency for outdoor solar lighting applications.
- Bifacial Solar Panel: Improves daytime charging efficiency for outdoor road lighting projects.
- 3mm Tempered Glass Lens: Helps protect the optical area from UV exposure, oxidation, and yellowing.
- Lithium Battery System: Supports stable energy storage, with low-temperature battery options available.
- MPPT Controller: Optimizes solar charging and battery discharge management.
- Microwave Motion Sensor: Adjusts brightness based on movement to save energy.
- Adjustable Mounting Bracket: Supports flexible installation for different pole heights and project layouts.
Project Selection Checklist
Before Model Selection
Please confirm the following project information before selecting the model:
- Pole height
- Road width
- Target brightness or lux level
- Working hours per night
- Local sunshine condition
- Rainy-day backup requirement
- Project location and temperature range
- Solar-only or solar-grid hybrid power requirement
Hishine Can Provide
Hishine can support B2B buyers with:
- Recommended wattage selection
- IES files
- Dialux lighting simulation
- Solar panel and battery configuration
- Smart control options
- Installation and project documentation
Not sure which wattage to choose? Send us your project details. Hishine will recommend a suitable E Series solar street light configuration.
Request Project RecommendationOptics

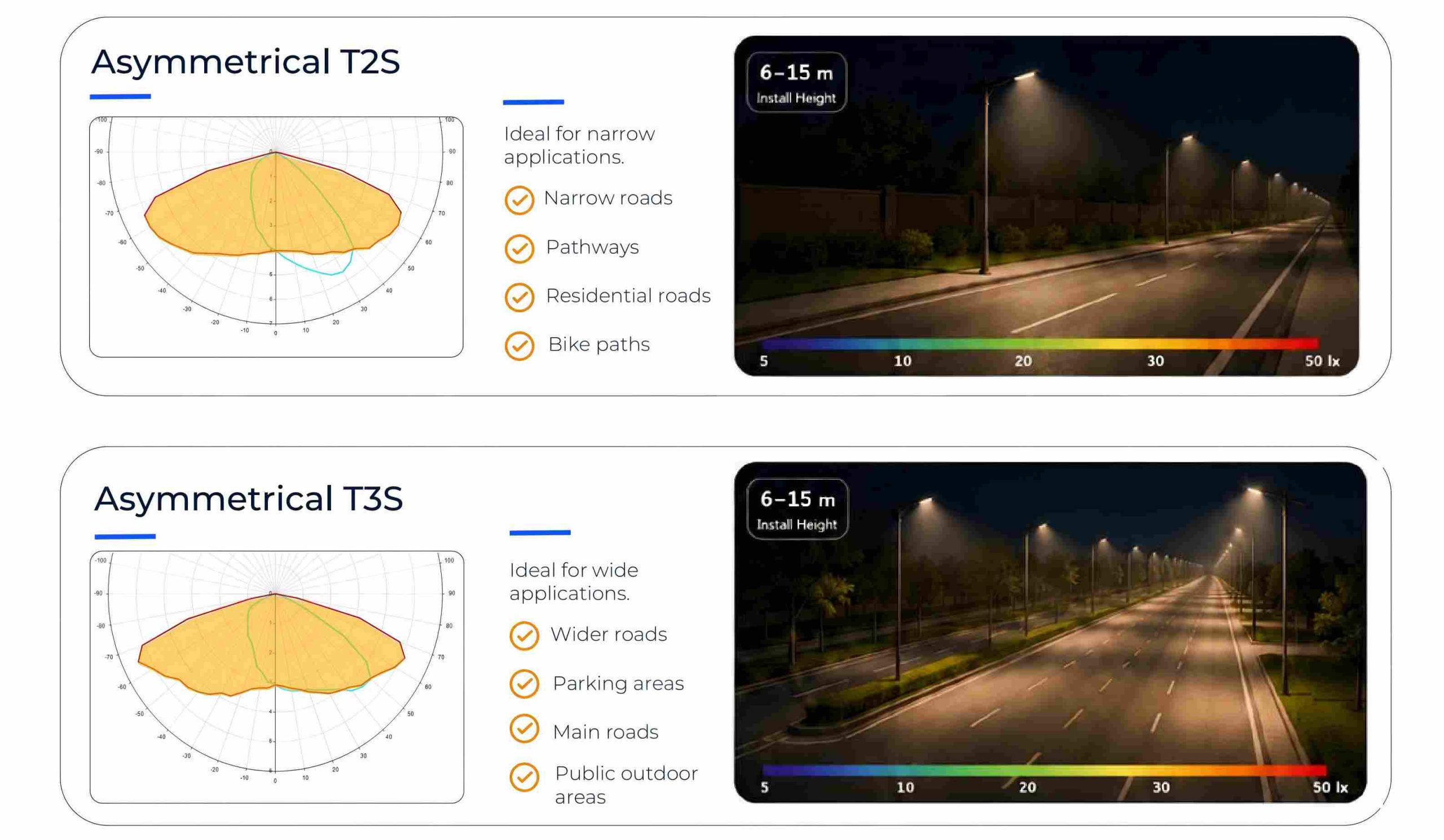

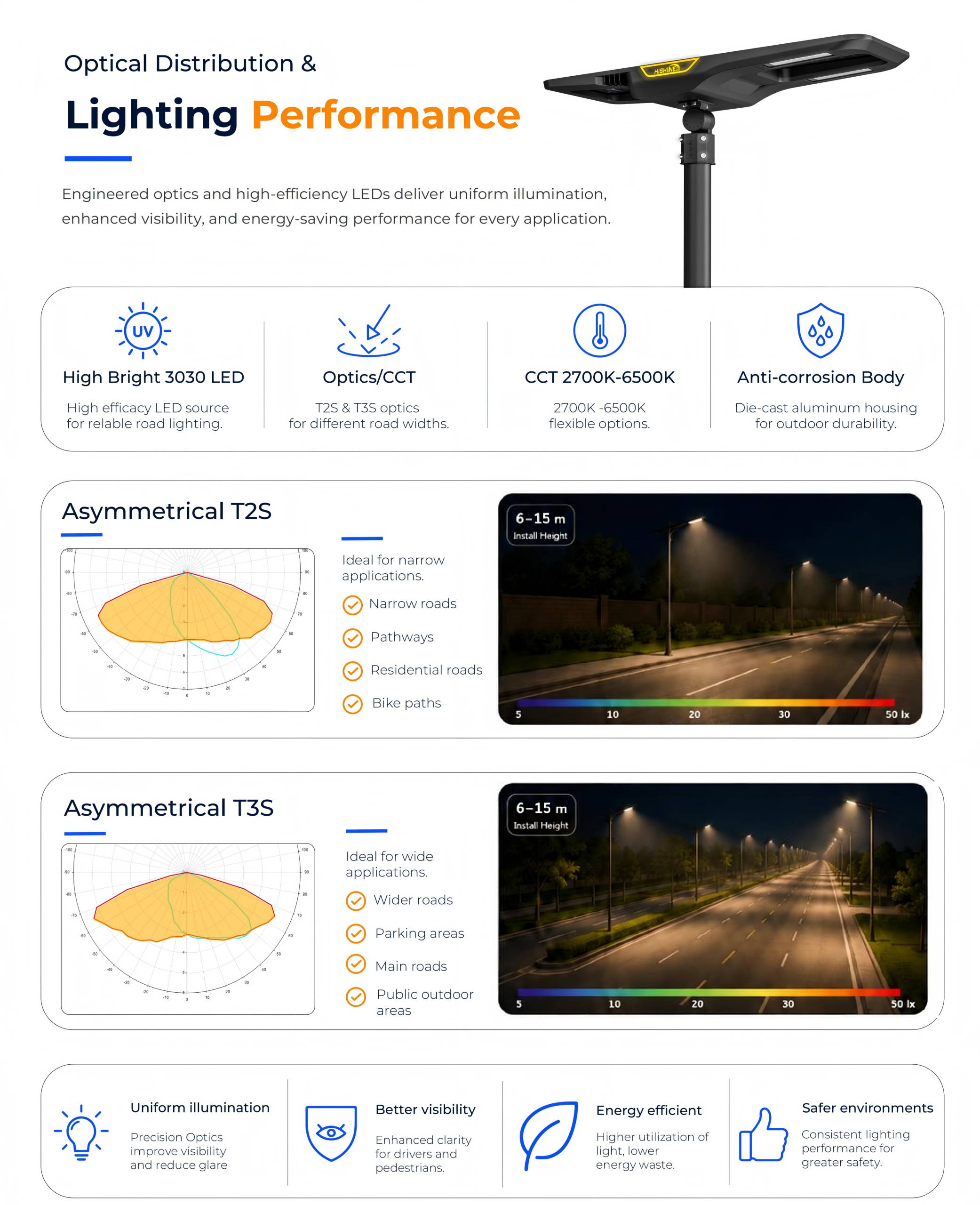

Hishine E Series All-in-One Solar LED Street Light supports project-oriented optical distribution. Beam options from the quotation include T2/T3. Contact Hishine for IES files and lighting simulation.
Applications
The E Series all-in-one solar LED street light is designed for outdoor projects where cable-free installation, stable night lighting, and simple maintenance are important.
Industrial Area

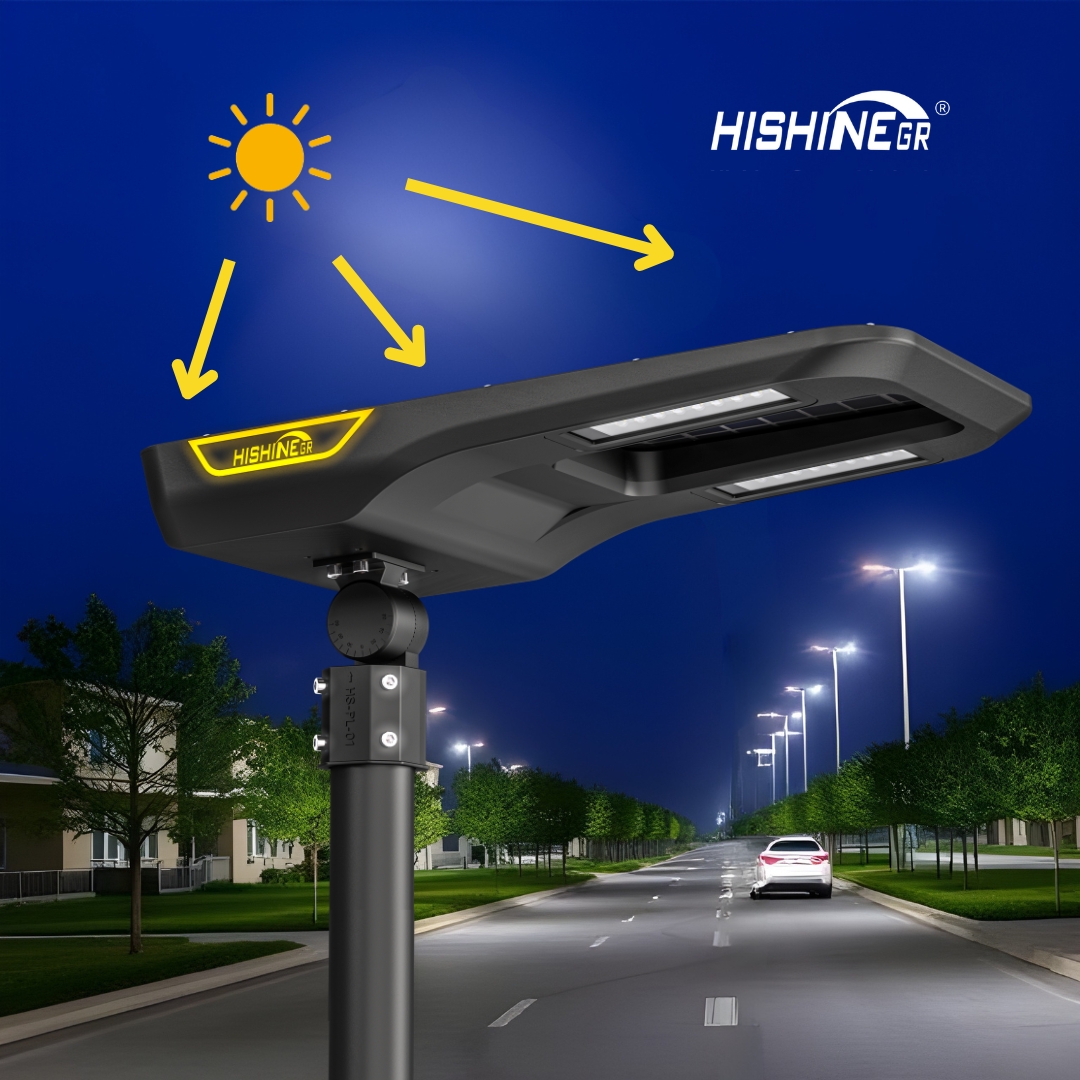

Industrial Park Roads
Suitable for factory roads, industrial parks, and outdoor work areas that require dependable lighting with lower cabling requirements.
Logistics
Warehouse & Logistics Parks
A practical lighting solution for warehouse roads, logistics entrances, loading areas, and outdoor transport routes.
Off-Grid
Rural Roads
Designed for village roads and remote areas where grid power access is limited and cable-free solar lighting is preferred.
Parking Area

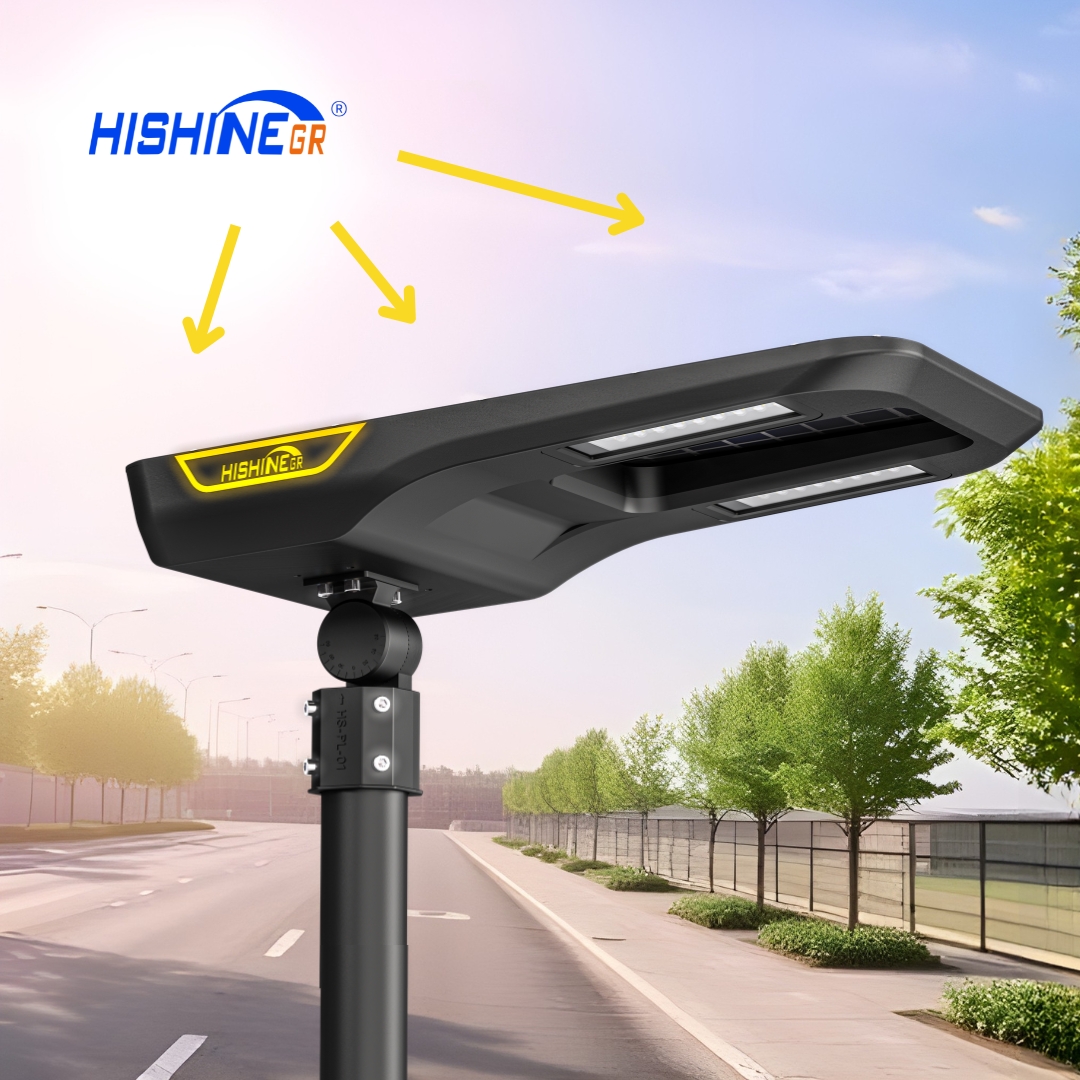

Parking Lots
Supports safe lighting for outdoor parking areas, public spaces, and low-to-medium traffic zones with smart energy management.
Public Area

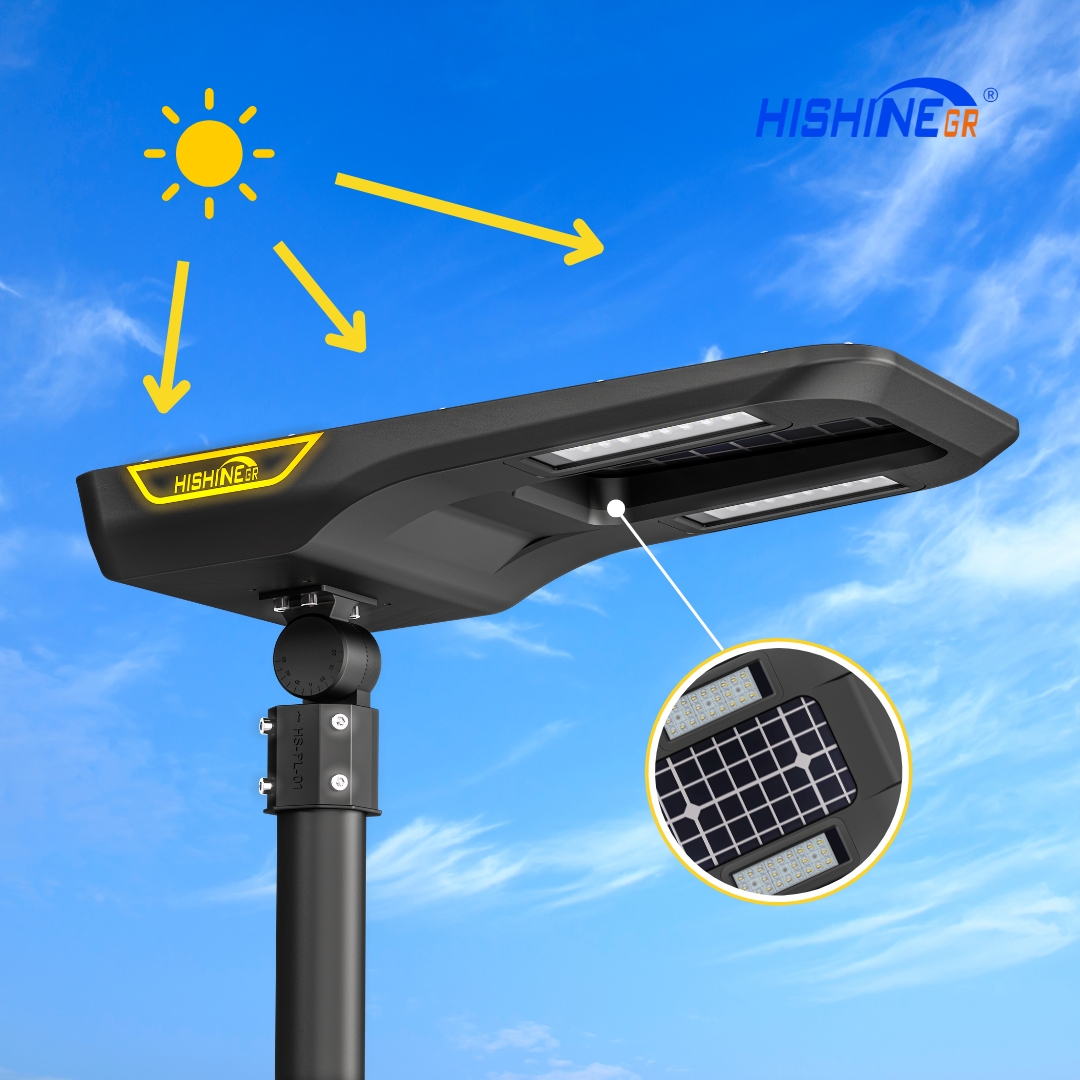

Parks & Public Pathways
Suitable for parks, sidewalks, public pathways, campus roads, and community areas that need clean and efficient outdoor lighting.
Also suitable for campus roads, residential community roads, remote off-grid areas, government solar lighting projects, public outdoor spaces, and security area lighting.
Video
Watch how the Hishine E Series all-in-one solar LED street light is designed for outdoor road lighting projects, including integrated solar panel, tempered glass lens, lithium battery system, MPPT control, and microwave motion sensing.
Cases
Project Case
Camp As Sayliyah Solar Lighting Project
- Location
- Doha, Qatar
- Product
- Hishine E Series All-in-One Solar LED Street Light
- Power
- 100W
- Application
- Camp road lighting / perimeter road lighting / outdoor security lighting
Challenge
The project required a reliable outdoor lighting solution for road areas where reduced wiring work, simple installation, and stable night lighting performance were important.
Solution
Hishine supplied the E Series all-in-one solar LED street light with integrated solar panel, lithium battery, controller, and LED light source.
Benefits
- Cable-free installation
- No electricity bill
- Reliable off-grid lighting
- Reduced maintenance workload
- Suitable for remote outdoor projects
Download
Request the E Series solar street light datasheet for model details, power range, solar panel and battery options, mounting height guidance, and project configuration support. IES files, Dialux support, certificates, and installation documents can be provided after project requirements are confirmed.
FAQ
The E Series is available from 30W to 150W. Lower wattages such as 30W and 40W are suitable for 4-6m poles and narrower roads, while 100W to 150W options are used for higher mounting heights and wider road lighting projects.
The 3mm tempered glass lens helps protect the optical area from outdoor impact, dust, UV exposure, and weather aging. It supports more stable light transmission and is suitable for long-term municipal and commercial solar street light projects.
The bifacial solar panel is designed to improve charging efficiency by collecting more usable sunlight during daytime operation. This helps support stable battery charging in road, park, and off-grid lighting applications.
Yes. The E Series can be configured with a new lithium battery and a low-temperature option for cold regions. The final battery configuration should be selected according to project temperature, working hours, and rainy-day backup requirements.
The MPPT intelligent controller optimizes solar charging and manages discharge to improve energy use. It helps the system operate automatically and supports more reliable lighting performance for B2B solar road lighting projects.
The microwave motion sensor can reduce brightness when no movement is detected and increase brightness when people or vehicles pass. This helps extend battery runtime for low-traffic roads, parking areas, rural roads, and industrial park roads.

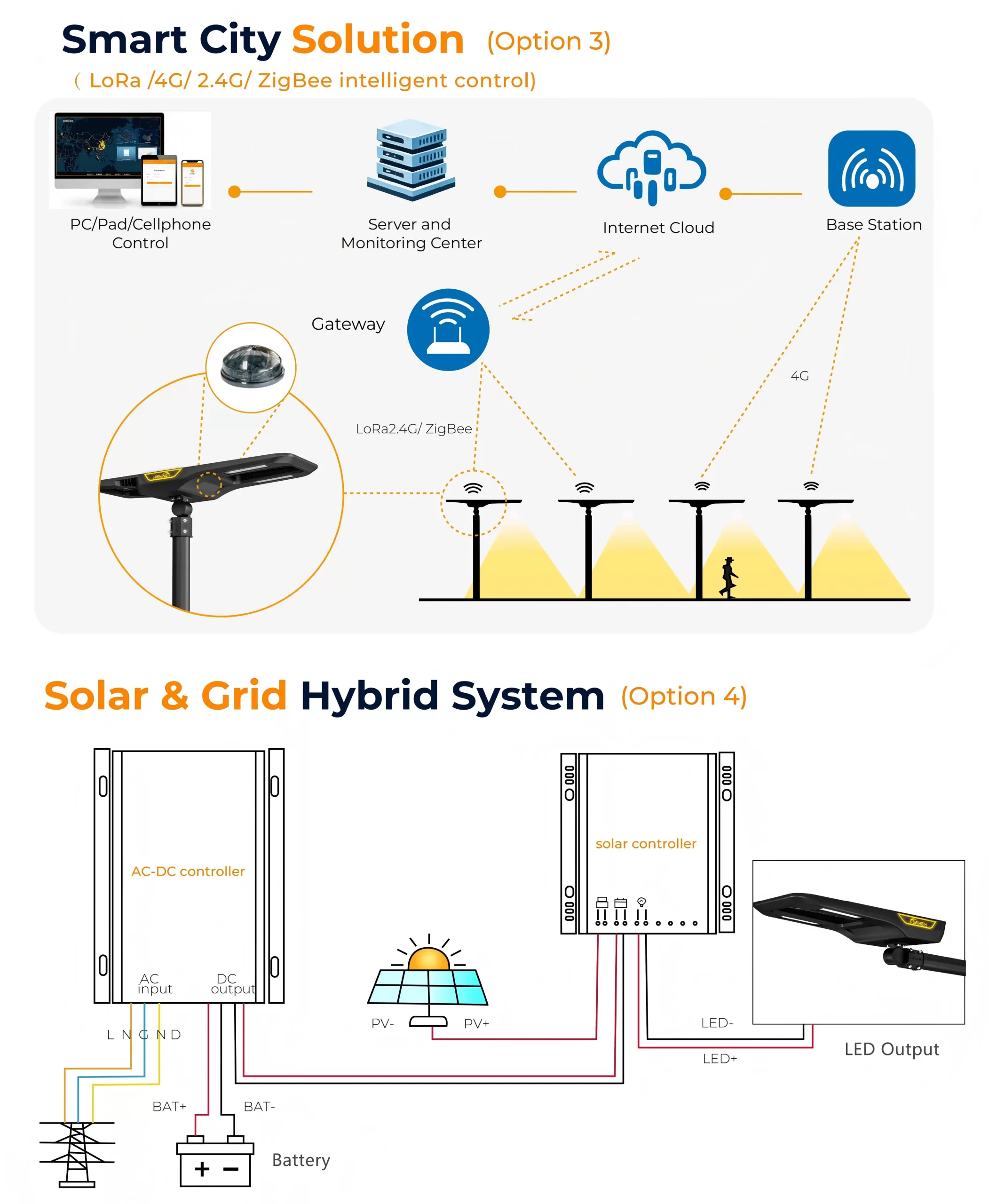

Optional intelligent control systems including LoRa, 4G, 2.4G, and ZigBee can be configured for project requirements. These options can support remote monitoring, grouped control, and smarter management for municipal and government lighting projects.
Yes. A solar and grid hybrid power option is available for projects that require additional reliability during long rainy seasons or limited sunlight periods. This option helps maintain lighting continuity while reducing grid energy use.
Yes. Hishine can provide IES files and Dialux simulation support for project evaluation. Please share road width, pole height, layout distance, target lux level, and application area so the team can recommend a suitable configuration.
For a faster quotation, please provide wattage or mounting height, road width, quantity, project country, working hours, rainy-day backup requirement, control options, certification requirements, and whether you need solar-only or solar-grid hybrid power.
