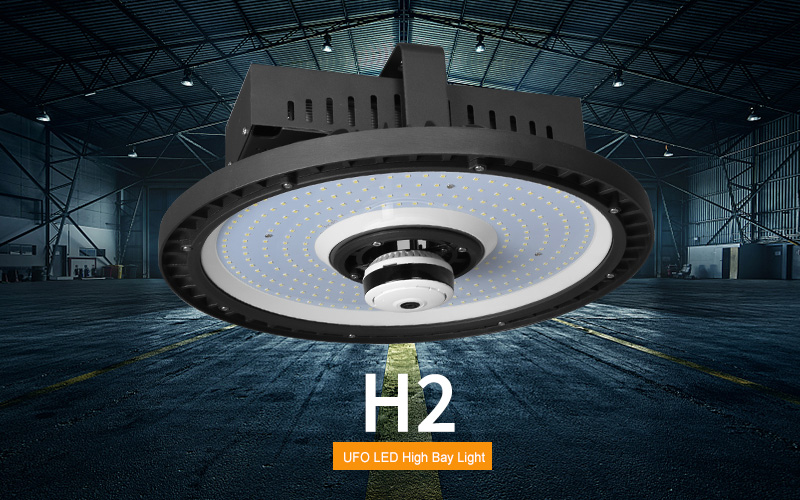

Hishine H2 UFO LED High Bay Light
Low-profile 100W-250W UFO LED high bay light for warehouses, factories, workshops, garages, and other high-ceiling industrial projects. Quoted configurations deliver 150 lm/W with SMD2835 LEDs.
Features
150 lm/W Industrial Efficiency
Quoted SMD2835 configurations deliver 150 lumens per watt, helping reduce installed power while maintaining practical high-bay illumination.

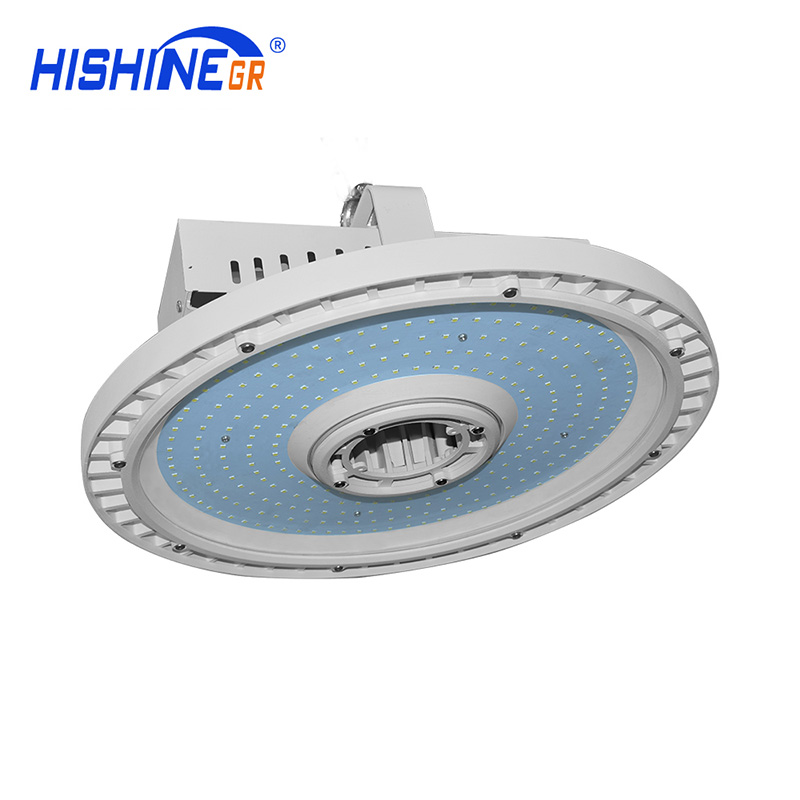

Low-Profile Die-Cast Housing
A compact aluminum housing supports efficient heat transfer and reduces fixture bulk in warehouses and production areas.
100W-250W Project Range
Four wattage options make it easier to match mounting height, spacing, target illuminance, and energy targets.

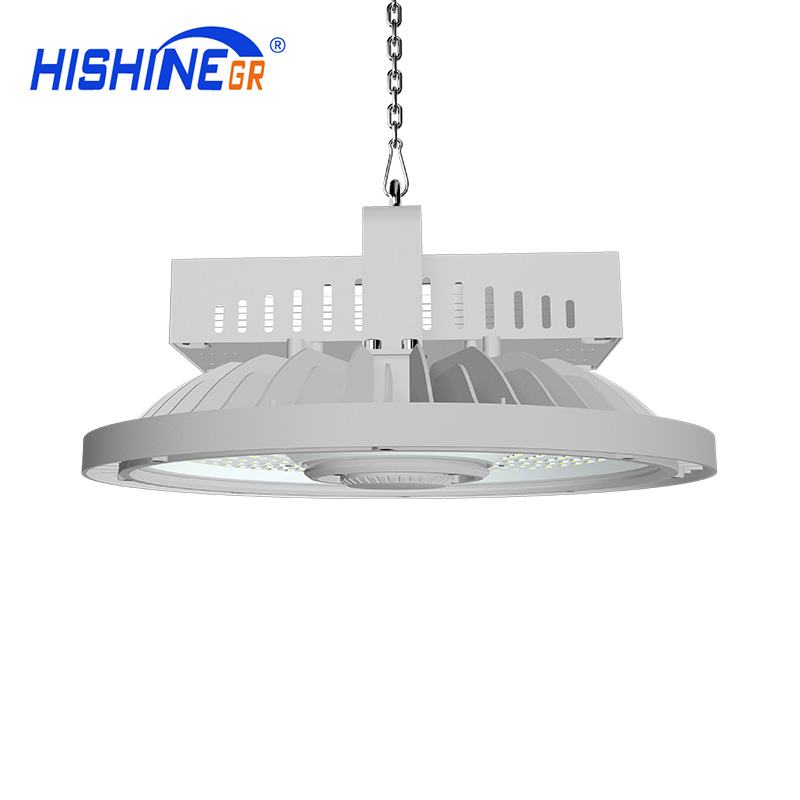

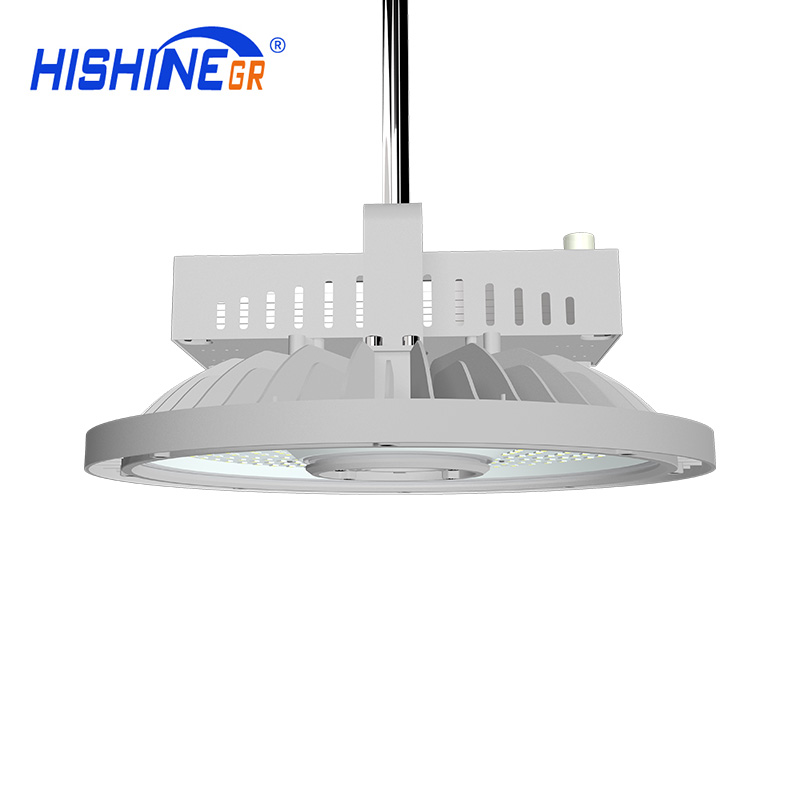

Flexible Mounting Options
Suspended, pipe, and ceiling-mounting arrangements support retrofit and new-build industrial lighting projects.

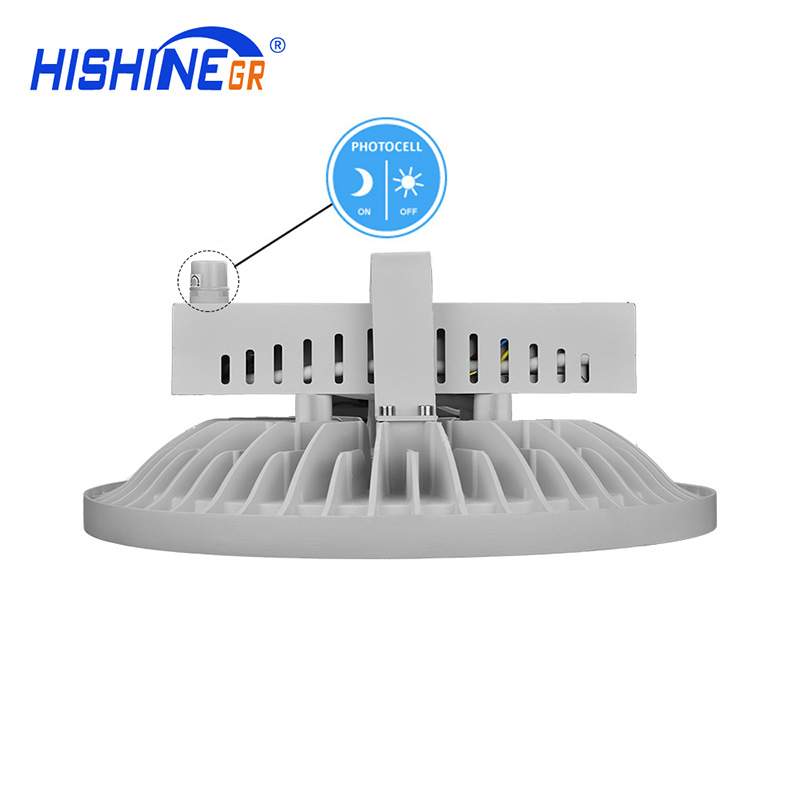

Optional Dimming and Sensors
0-10V dimming and occupancy or daylight sensor options can support additional energy savings when specified.
Specification
Compare the quoted configurations below. Final selection should be confirmed against the project layout, target illuminance, voltage, controls, and certification requirements.
| Model | Power | LED Chip | Luminous Flux | LED Qty | Beam Angle | IP Rating | Weight | Dimensions | Input Voltage | Driver |
|---|---|---|---|---|---|---|---|---|---|---|
| HS-HB100W-H22 | 100W | SMD2835 | 15,000 lm | 189 | 120° | — | 8.5 kg gross | Φ380 × H190 mm | AC100-277V | Hishine |
| HS-HB150W-H22 | 150W | SMD2835 | 22,500 lm | 308 | 120° | — | 8.5 kg gross | Φ380 × H190 mm | AC100-277V | Hishine |
| HS-HB200W-H22 | 200W | SMD2835 | 30,000 lm | 396 | 120° | — | 8.5 kg gross | Φ380 × H190 mm | AC100-277V | Hishine |
| HS-HB250W-H22 | 250W | SMD2835 | 37,500 lm | 480 | 120° | — | 8.5 kg gross | Φ380 × H190 mm | AC100-277V | Hishine |
Procurement note: Prices are not published on this page. Request a project quotation with quantity, destination, voltage, optics, controls, mounting accessories, and certification requirements.
Optics
IES photometric files and DIALux support are available for project evaluation. Contact Hishine with mounting positions, heights, spacing, and target illuminance.
Applications
Recommended project applications include:
- Warehouses and distribution centers
- Factories and production workshops
- Garages and maintenance bays
- Storage facilities
- Gymnasiums and indoor sports areas
- Gas stations and commercial high-bay spaces
Video
Download
FAQ
The available range is 100W-250W. Final model selection should consider mounting height, spacing, target illuminance, operating hours, input voltage, and the required control method.
The quoted configuration uses SMD2835 LEDs with 150 lm/W luminous efficacy. Alternative LED or driver configurations should be confirmed before ordering.
Available optics are 120°. Hishine can recommend a distribution after reviewing pole or mounting positions, road or floor geometry, and the target lighting level.
The standard quoted input is AC100-277V with Hishine constant-current driver. High-voltage, dimming, or branded-driver requirements should be stated in the inquiry.
The listed protection is project-specific IP and environmental protection. Suitability for coastal, corrosive, high-temperature, cold-storage, vibration, or wash-down environments must be checked against the final project configuration.
Optional 0-10V dimming and sensor control are available. Control accessories and protocols are optional unless explicitly included in the final quotation.
Please provide mounting height, pole or ceiling layout, spacing, application dimensions, target lux level, operating schedule, ambient conditions, supply voltage, and quantity.
Yes. IES photometric files and DIALux support are available for project evaluation. Please share the site drawing, mounting positions, heights, and target illuminance.
The current warranty basis is Project-specific warranty terms. Warranty terms depend on the selected LED, driver, controls, working conditions, and final order configuration.
Please send the model or wattage, quantity, destination market, input voltage, color temperature, beam distribution, control requirements, certification needs, mounting accessories, and expected delivery schedule.
