Hishine LED Lighting Manufacturer
Hishine H3 UFO LED High Bay Light
Ultra-slim 100W-250W UFO LED high bay light with SMD3030 LEDs, 152 lm/W quoted efficacy, IP67 protection, and driver options for demanding warehouse and factory projects.
Features

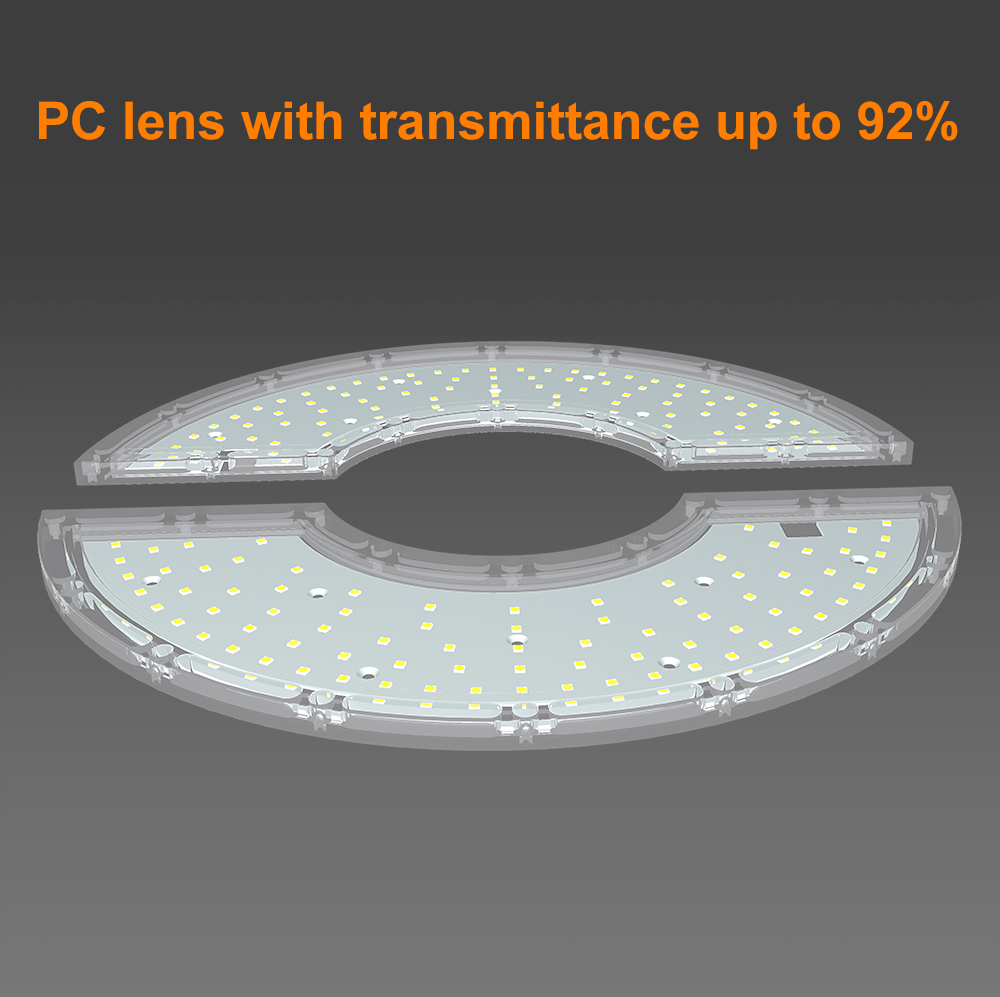

152 lm/W SMD3030 Platform
The quoted SMD3030 configuration reaches approximately 152 lm/W for efficient industrial illumination.

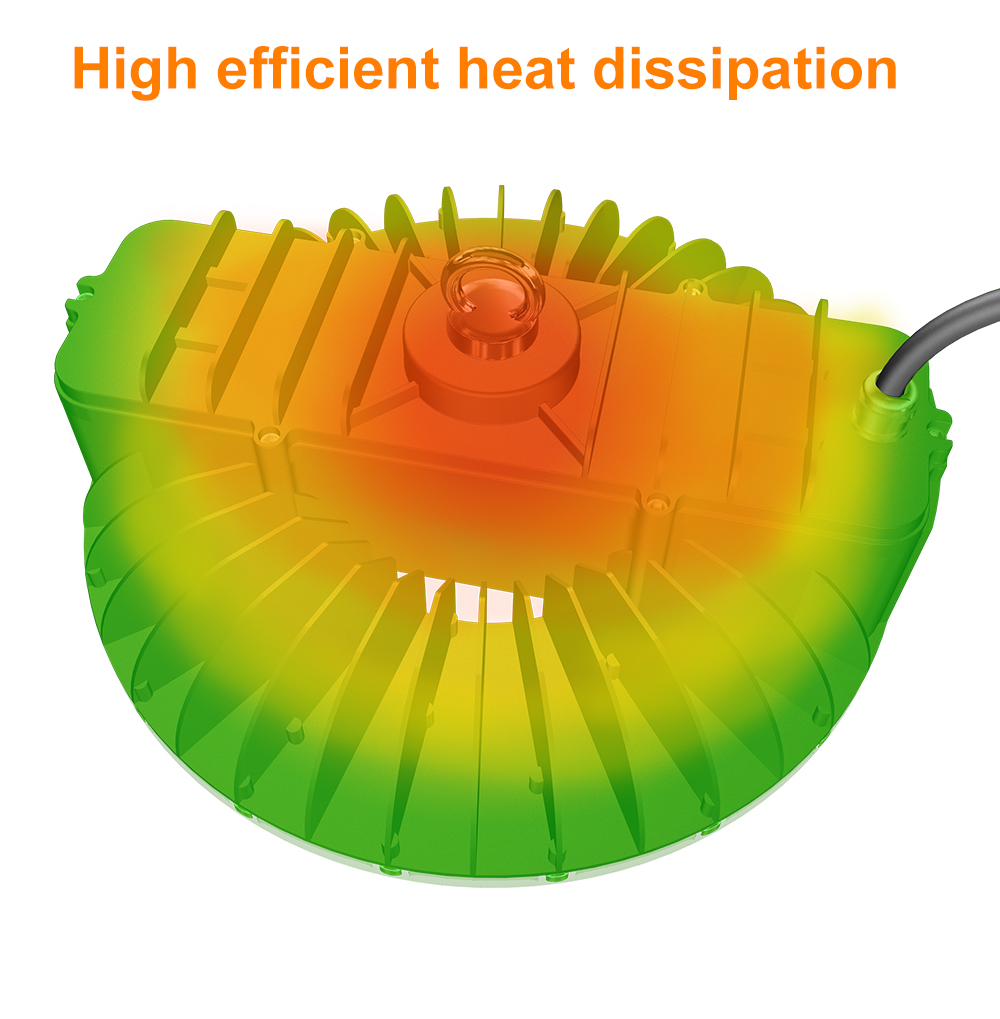

Ultra-Slim Thermal Structure
A lightweight heat-sink profile supports heat dissipation while reducing fixture height and installation load.
IP67 Environmental Protection
The sealed design is specified for dusty and wet industrial locations where reliable ingress protection is required.
Flexible Driver Configuration
Hishine and optional Inventronics drivers, plus 347V/480V solutions, support different project electrical standards.

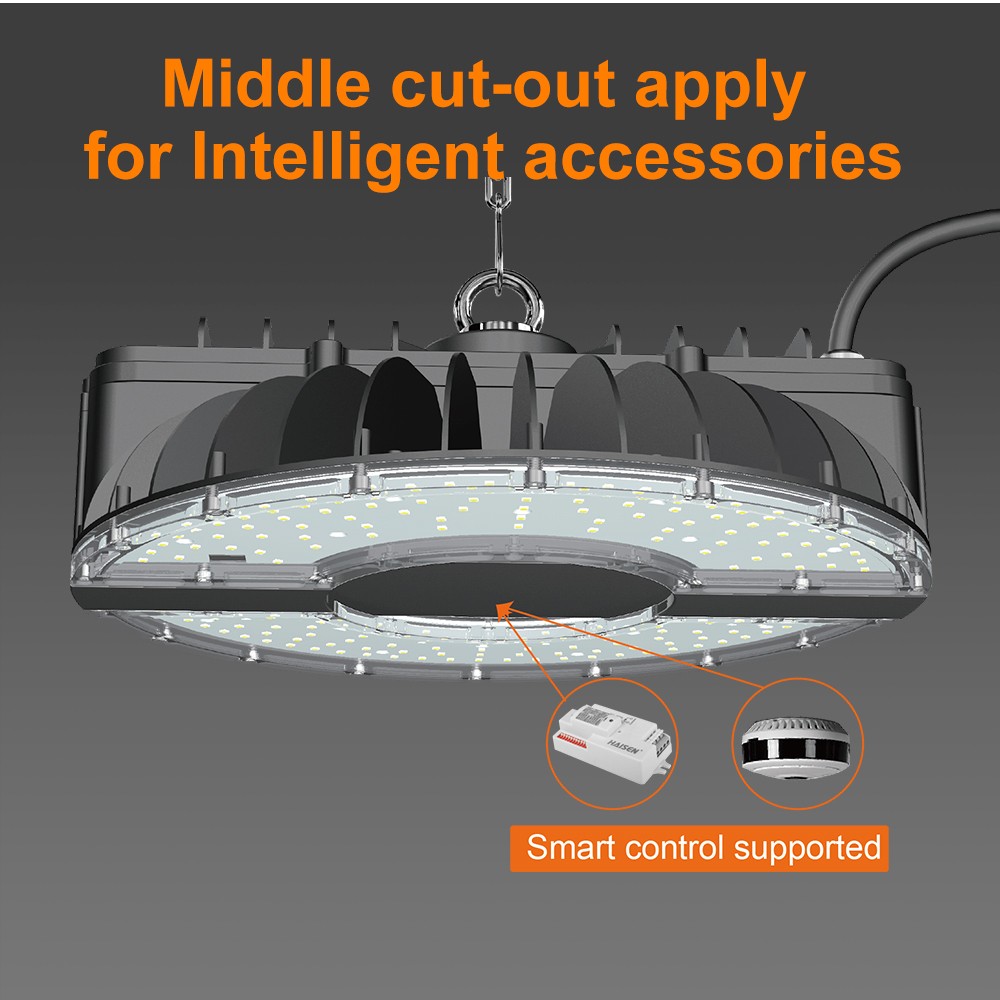

Dimming and Sensor Ready
Optional 0-10V dimming and smart sensing can be specified for warehouses with changing occupancy patterns.
Specification
Compare the quoted configurations below. Final selection should be confirmed against the project layout, target illuminance, voltage, controls, and certification requirements.
| Model | Power | LED Chip | Luminous Flux | LED Qty | Beam Angle | IP Rating | Weight | Dimensions | Input Voltage | Driver |
|---|---|---|---|---|---|---|---|---|---|---|
| HS-HB100W-H3 | 100W | SMD3030 | 15,200 lm | 154 | 120° | IP67 | — | Φ340 × H113 mm | AC100-277V | Hishine / Inventronics optional |
| HS-HB150W-H3 | 150W | SMD3030 | 22,800 lm | 210 | 120° | IP67 | — | Φ340 × H113 mm | AC100-277V | Hishine / Inventronics optional |
| HS-HB200W-H3 | 200W | SMD3030 | 30,400 lm | 308 | 120° | IP67 | — | Φ340 × H113 mm | AC100-277V | Hishine / Inventronics optional |
| HS-HB250W-H3 | 250W | SMD3030 | 38,000 lm | 308 | 120° | IP67 | — | Φ340 × H113 mm | AC100-277V | Hishine / Inventronics optional |
Procurement note: Prices are not published on this page. Request a project quotation with quantity, destination, voltage, optics, controls, mounting accessories, and certification requirements.
Optics
IES photometric files and DIALux support are available for project evaluation. Contact Hishine with mounting positions, heights, spacing, and target illuminance.
Applications
Recommended project applications include:
- Warehouses and logistics centers
- Factories and assembly halls
- Industrial workshops
- High-ceiling storage areas
- Indoor sports halls
- Commercial high-bay facilities
Video
Download
FAQ
The available range is 100W-250W. Final model selection should consider mounting height, spacing, target illuminance, operating hours, input voltage, and the required control method.
The quoted configuration uses SMD3030 LEDs with 152 lm/W luminous efficacy. Alternative LED or driver configurations should be confirmed before ordering.
Available optics are 120°. Hishine can recommend a distribution after reviewing pole or mounting positions, road or floor geometry, and the target lighting level.
The standard quoted input is AC100-277V; 347V/480V optional with Hishine or Inventronics optional. High-voltage, dimming, or branded-driver requirements should be stated in the inquiry.
The listed protection is IP67 ingress protection. Suitability for coastal, corrosive, high-temperature, cold-storage, vibration, or wash-down environments must be checked against the final project configuration.
Optional 0-10V dimming and sensor configurations are available. Control accessories and protocols are optional unless explicitly included in the final quotation.
Please provide mounting height, pole or ceiling layout, spacing, application dimensions, target lux level, operating schedule, ambient conditions, supply voltage, and quantity.
Yes. IES photometric files and DIALux support are available for project evaluation. Please share the site drawing, mounting positions, heights, and target illuminance.
The current warranty basis is Up to 7 years, subject to configuration. Warranty terms depend on the selected LED, driver, controls, working conditions, and final order configuration.
Please send the model or wattage, quantity, destination market, input voltage, color temperature, beam distribution, control requirements, certification needs, mounting accessories, and expected delivery schedule.
Project Inquiry
Need a lighting solution for your project?
Send us your project details, including installation height, application area, quantity, voltage, and certification requirements. Hishine will recommend a suitable LED lighting solution.
