Hishine H4 UFO LED High Bay Light
Compact 50W-150W UFO LED high bay light with hidden sensor integration, IK10 impact resistance, IP65 protection, and 130 lm/W quoted efficacy for efficient industrial lighting.
Features
Compact 50W-150W Range
The compact platform covers lower and medium high-bay requirements without oversized fixtures.

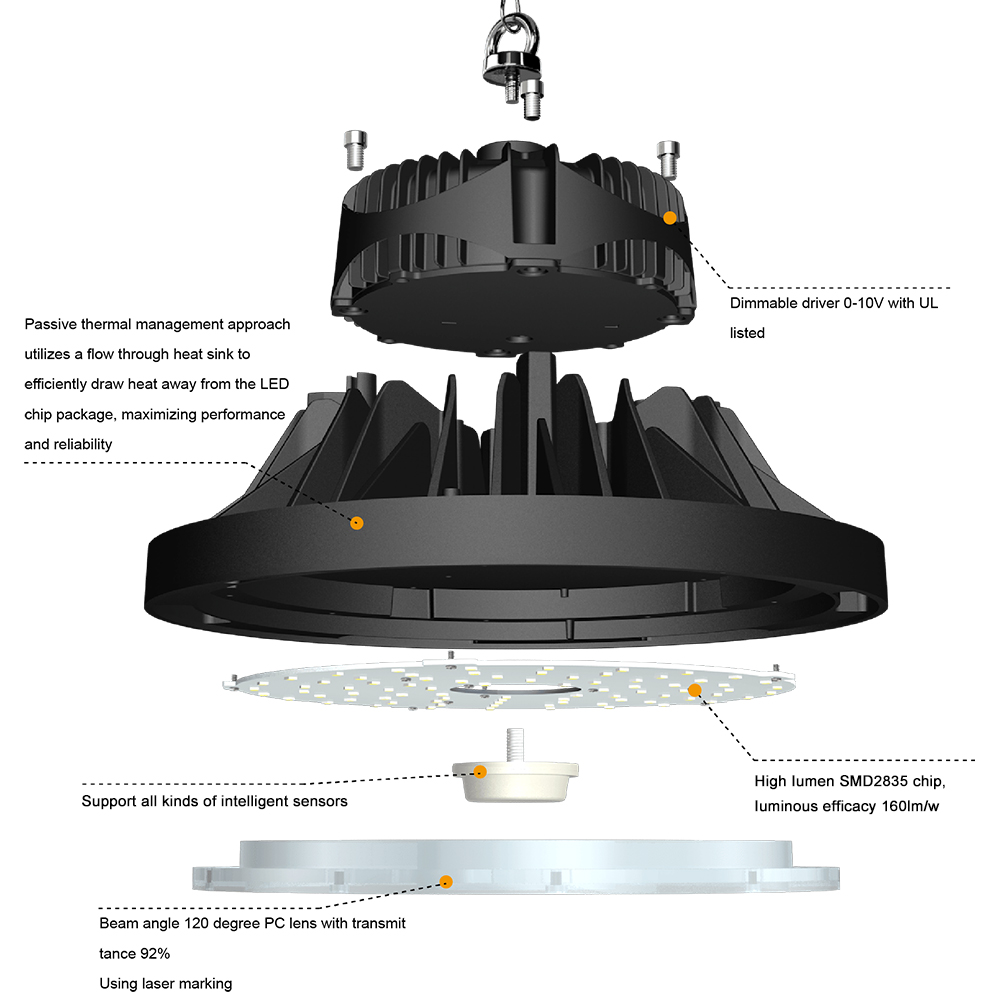

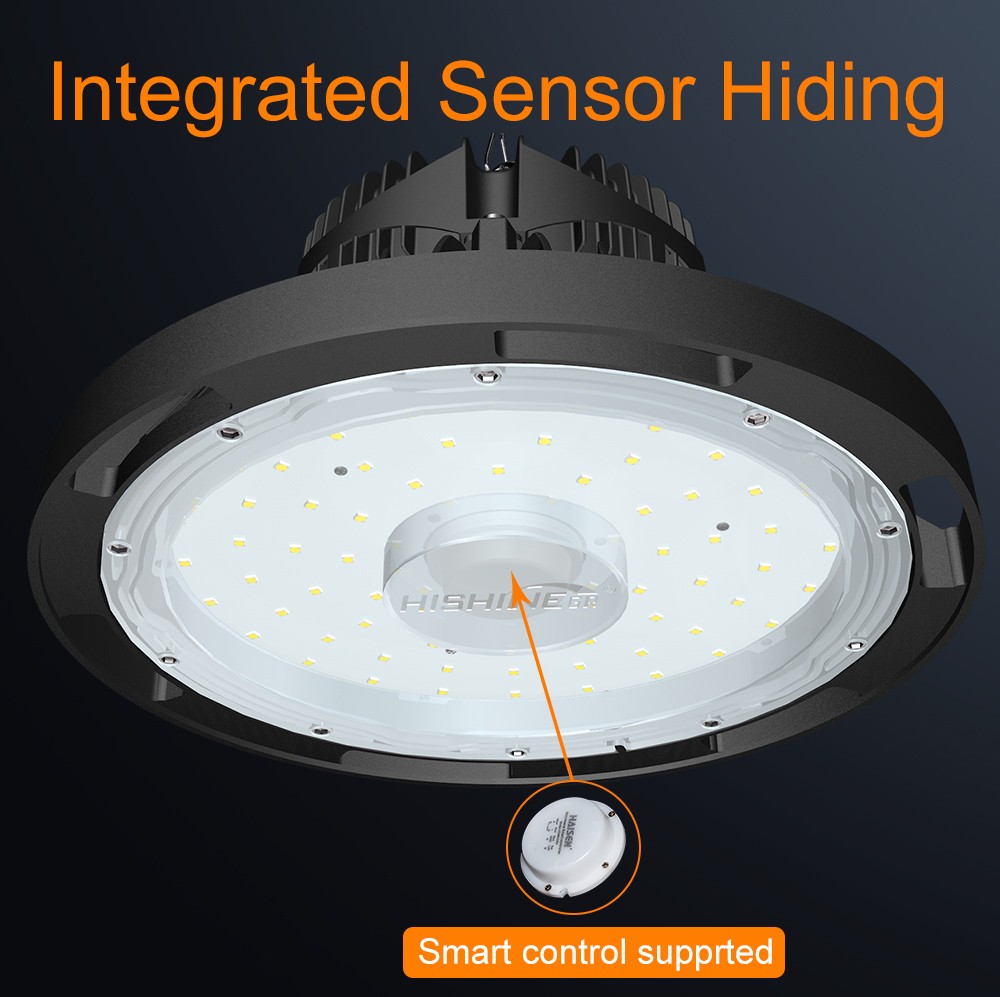

Hidden Sensor Integration
A concealed sensor arrangement keeps the fixture profile clean while supporting occupancy-based control.
IK10 Impact Resistance
Robust construction is designed for industrial locations where accidental impact is a concern.
IP65 Dust and Water Protection
IP65 protection supports dependable operation in dusty and damp indoor industrial environments.
Smart Energy-Saving Operation
Sensor-based control can reduce unnecessary operating hours in intermittently occupied areas.
Specification
Compare the quoted configurations below. Final selection should be confirmed against the project layout, target illuminance, voltage, controls, and certification requirements.
| Model | Power | LED Chip | Luminous Flux | LED Qty | Beam Angle | IP Rating | Weight | Dimensions | Input Voltage | Driver |
|---|---|---|---|---|---|---|---|---|---|---|
| HS-HB50W-H4 | 50W | SMD2835 | 6,500 lm | 108 | 120° | IP65 | 2.4 kg | Φ250 × H147 mm | AC100-277V | Hishine |
| HS-HB100W-H4 | 100W | SMD2835 | 13,000 lm | 189 | 120° | IP65 | 2.5 kg | Φ250 × H147 mm | AC100-277V | Hishine |
| HS-HB150W-H4 | 150W | SMD2835 | 19,500 lm | 308 | 120° | IP65 | 2.83 kg | Φ250 × H147 mm | AC100-277V | Hishine |
Procurement note: Prices are not published on this page. Request a project quotation with quantity, destination, voltage, optics, controls, mounting accessories, and certification requirements.
Optics
IES photometric files and DIALux support are available for project evaluation. Contact Hishine with mounting positions, heights, spacing, and target illuminance.
Applications
Recommended project applications include:
- Warehouses
- Factories and workshops
- Retail stockrooms
- Commercial high-bay areas
- Service bays
- Low-to-medium mounting-height industrial spaces
Video
Download
FAQ
The available range is 50W-150W. Final model selection should consider mounting height, spacing, target illuminance, operating hours, input voltage, and the required control method.
The quoted configuration uses SMD2835 LEDs with 130 lm/W luminous efficacy. Alternative LED or driver configurations should be confirmed before ordering.
Available optics are 120°. Hishine can recommend a distribution after reviewing pole or mounting positions, road or floor geometry, and the target lighting level.
The standard quoted input is AC100-277V with Hishine driver. High-voltage, dimming, or branded-driver requirements should be stated in the inquiry.
The listed protection is IP65 and IK10. Suitability for coastal, corrosive, high-temperature, cold-storage, vibration, or wash-down environments must be checked against the final project configuration.
Integrated hidden sensor design and smart energy-saving modes are available. Control accessories and protocols are optional unless explicitly included in the final quotation.
Please provide mounting height, pole or ceiling layout, spacing, application dimensions, target lux level, operating schedule, ambient conditions, supply voltage, and quantity.
Yes. IES photometric files and DIALux support are available for project evaluation. Please share the site drawing, mounting positions, heights, and target illuminance.
The current warranty basis is Project-specific warranty terms. Warranty terms depend on the selected LED, driver, controls, working conditions, and final order configuration.
Please send the model or wattage, quantity, destination market, input voltage, color temperature, beam distribution, control requirements, certification needs, mounting accessories, and expected delivery schedule.
