Hishine Hi-Talent LED Parking Lot Light
Modular 100W-300W LED parking lot and area light with 150 lm/W SMD3030 LEDs, Type III/IV/V optics, wide-voltage drivers, and project-ready mounting options.
Features
100W-300W Modular Platform
Five wattages support parking lots ranging from local commercial sites to large industrial areas.
150 lm/W SMD3030 Output
High-efficacy quoted configurations reduce input power while supporting broad area-lighting targets.

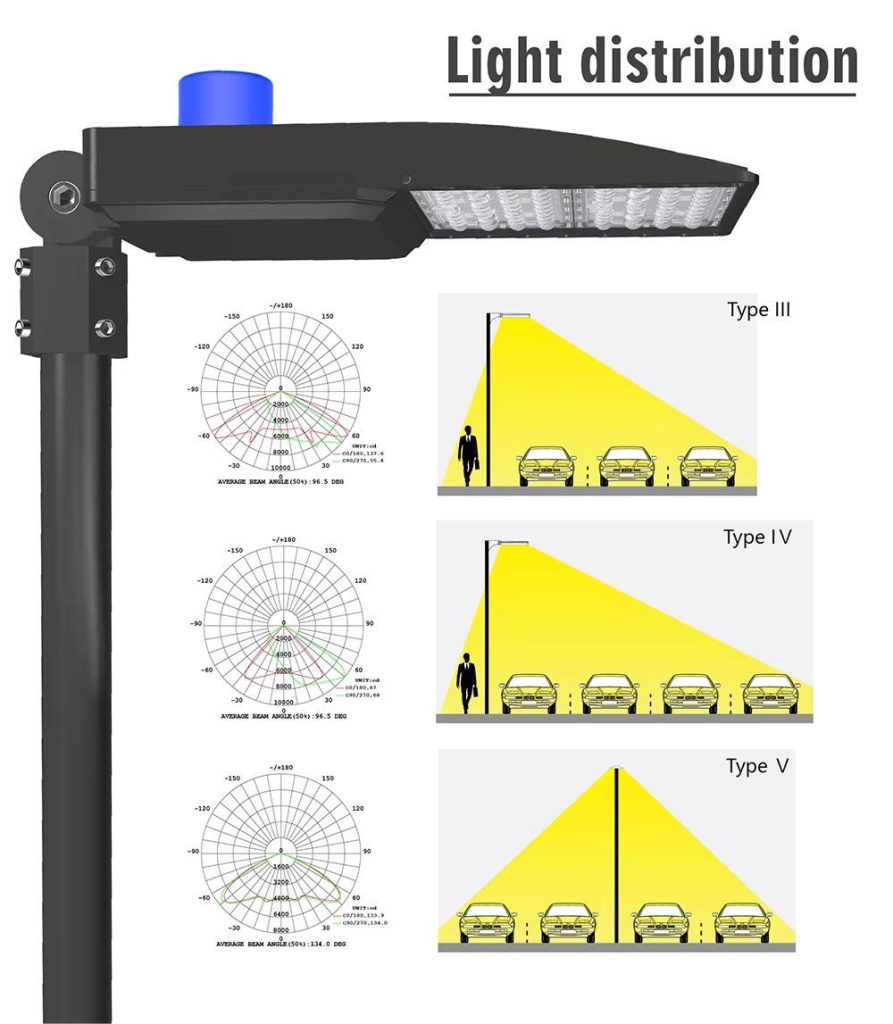

Type III, IV and V Optics
Multiple distributions help place light along perimeter rows, internal aisles, and open parking areas.

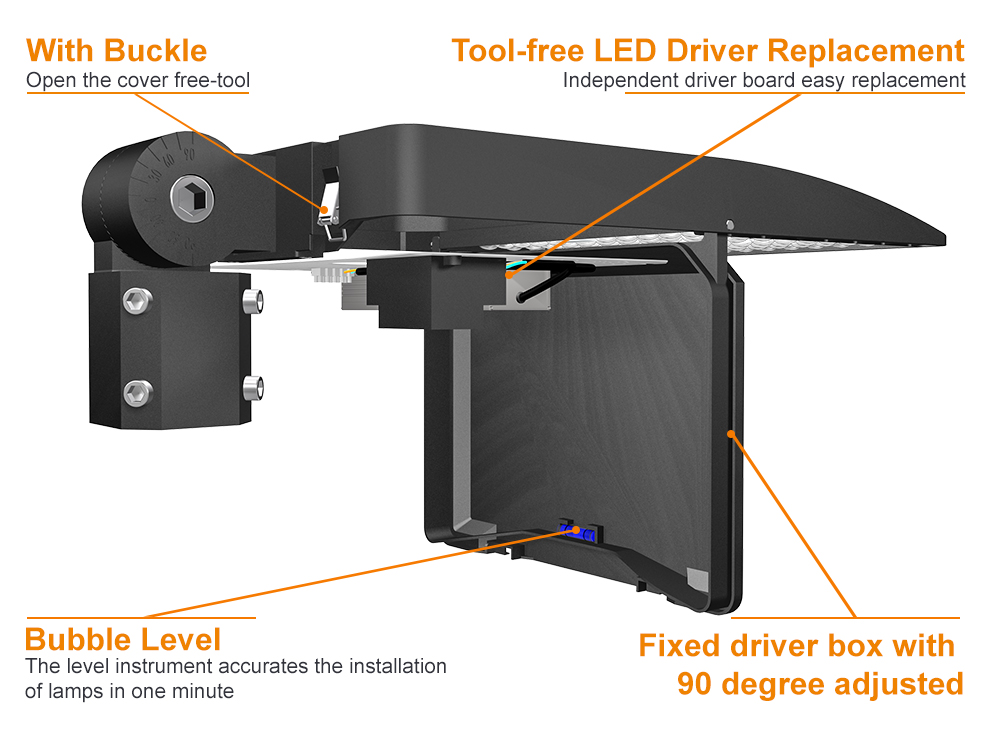

Tool-Free Driver Access
A service-friendly driver compartment can reduce maintenance time during inspection or component replacement.
Project Mounting and Controls
Mounting accessories, surge protection, 0-10V dimming, photocells, and sensors can be configured by project.
Specification
Compare the quoted configurations below. Final selection should be confirmed against the project layout, target illuminance, voltage, controls, and certification requirements.
| Model | Power | LED Chip | Luminous Flux | LED Qty | Beam Angle | IP Rating | Weight | Dimensions | Input Voltage | Driver |
|---|---|---|---|---|---|---|---|---|---|---|
| HS-PL100W-B | 100W | SMD3030 | 15,000 lm | 144 | Type III / IV / V | — | — | 369 × 305 × 67 mm | AC100-277V | Hishine |
| HS-PL150W-B | 150W | SMD3030 | 22,500 lm | 288 | Type III / IV / V | — | — | 490 × 305 × 67 mm | AC100-277V | Hishine |
| HS-PL200W-B | 200W | SMD3030 | 30,000 lm | 288 | Type III / IV / V | — | — | 490 × 305 × 67 mm | AC100-277V | Hishine |
| HS-PL250W-B | 250W | SMD3030 | 37,500 lm | 432 | Type III / IV / V | — | — | 611 × 305 × 67 mm | AC100-277V | Hishine |
| HS-PL300W-B | 300W | SMD3030 | 45,000 lm | 432 | Type III / IV / V | — | — | 611 × 305 × 67 mm | AC100-277V | Hishine |
Procurement note: Prices are not published on this page. Request a project quotation with quantity, destination, voltage, optics, controls, mounting accessories, and certification requirements.
Optics
IES photometric files and DIALux support are available for project evaluation. Contact Hishine with mounting positions, heights, spacing, and target illuminance.
Applications
Recommended project applications include:
- Commercial parking lots
- Industrial yards
- Logistics and loading areas
- Car dealerships
- Campus and public parking
- Large outdoor area-lighting projects
Video
Download
FAQ
The available range is 100W-300W. Final model selection should consider mounting height, spacing, target illuminance, operating hours, input voltage, and the required control method.
The quoted configuration uses SMD3030 LEDs with 150 lm/W luminous efficacy. Alternative LED or driver configurations should be confirmed before ordering.
Available optics are Type III / Type IV / Type V. Hishine can recommend a distribution after reviewing pole or mounting positions, road or floor geometry, and the target lighting level.
The standard quoted input is AC100-277V with Hishine driver. High-voltage, dimming, or branded-driver requirements should be stated in the inquiry.
The listed protection is project-specific outdoor protection. Suitability for coastal, corrosive, high-temperature, cold-storage, vibration, or wash-down environments must be checked against the final project configuration.
Optional 0-10V dimming, photocell, and sensor configurations are available. Control accessories and protocols are optional unless explicitly included in the final quotation.
Please provide mounting height, pole or ceiling layout, spacing, application dimensions, target lux level, operating schedule, ambient conditions, supply voltage, and quantity.
Yes. IES photometric files and DIALux support are available for project evaluation. Please share the site drawing, mounting positions, heights, and target illuminance.
The current warranty basis is Project-specific warranty terms. Warranty terms depend on the selected LED, driver, controls, working conditions, and final order configuration.
Please send the model or wattage, quantity, destination market, input voltage, color temperature, beam distribution, control requirements, certification needs, mounting accessories, and expected delivery schedule.
Project Inquiry
Need a lighting solution for your project?
Send us your project details, including installation height, application area, quantity, voltage, and certification requirements. Hishine will recommend a suitable LED lighting solution.
