Hishine Hi-Titan LED Stadium Light

The two versions use different LED packages, quantities, lumen outputs, beam selections, and driver combinations. The best option depends on target illuminance, mounting height, beam control, voltage, control requirements, and project budget. Hishine can compare both versions without publishing product pricing on this page.

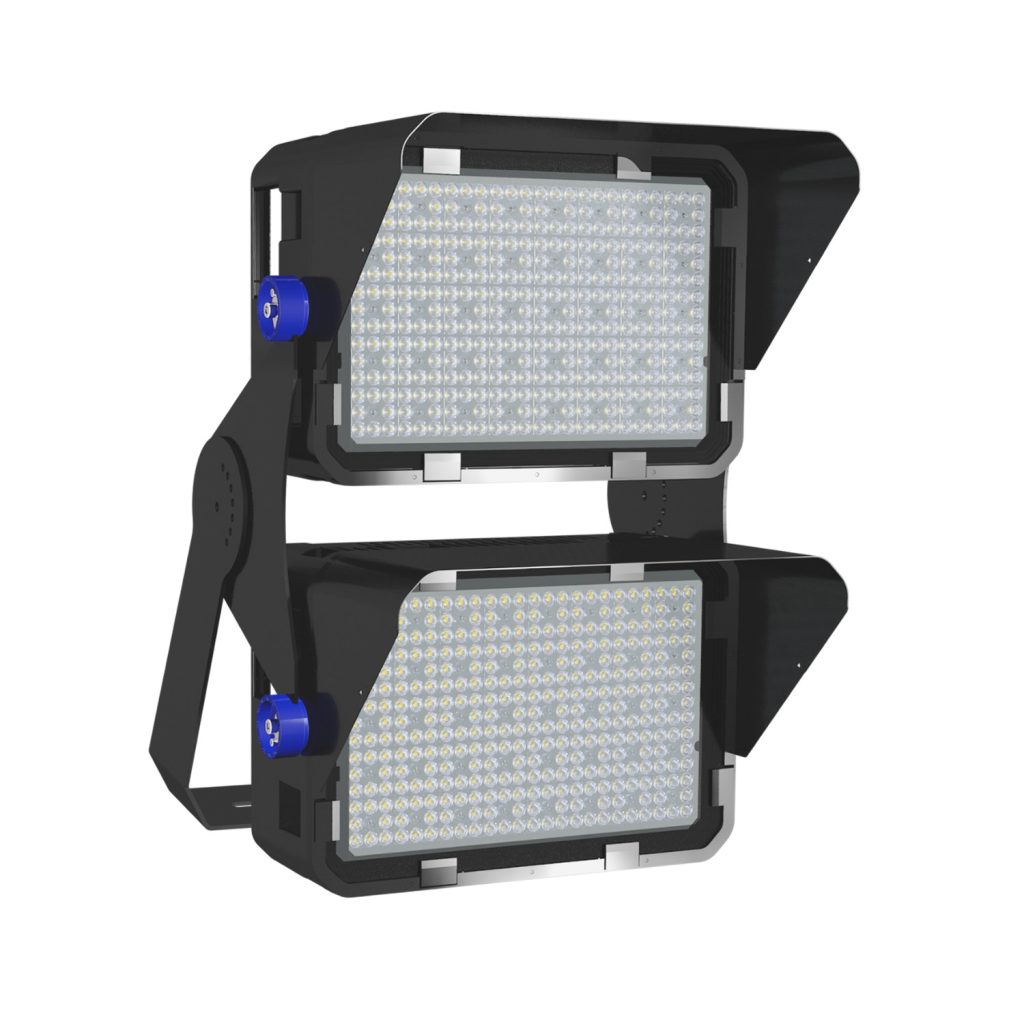

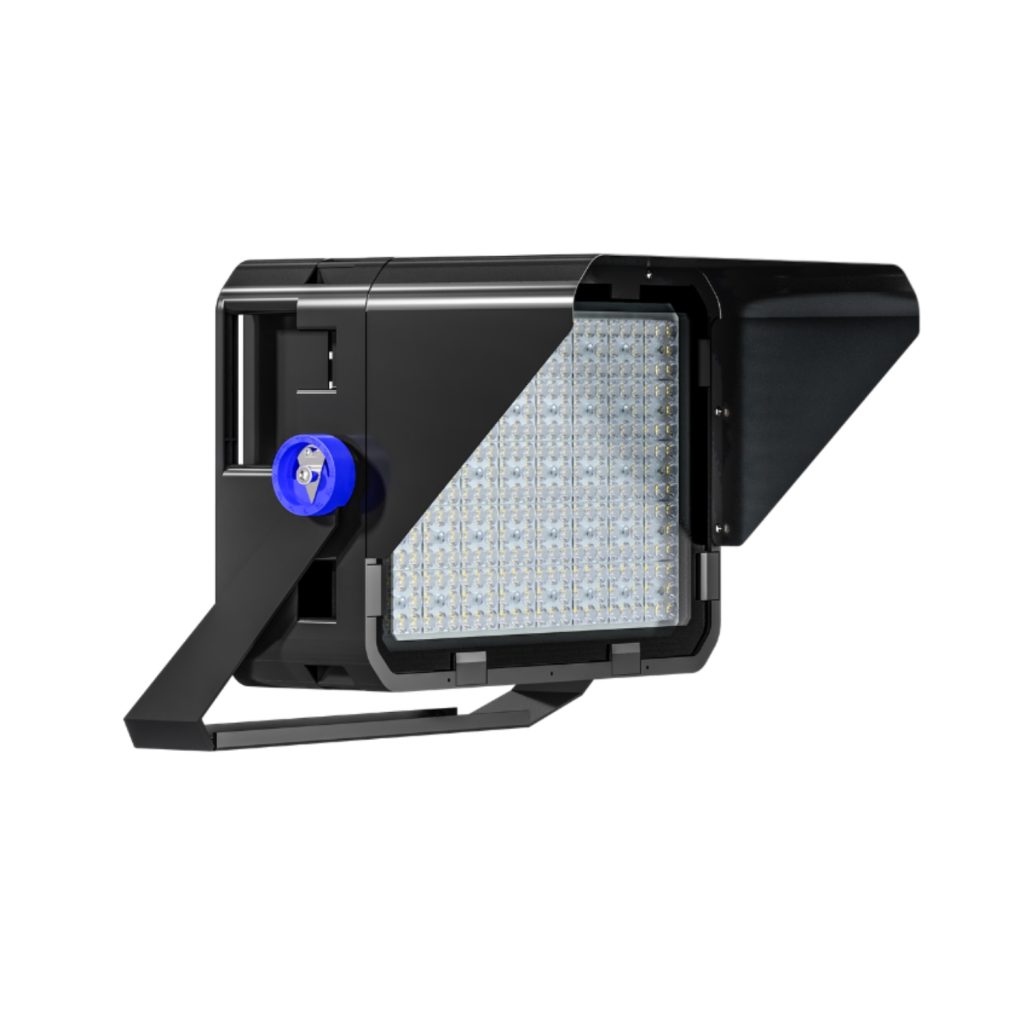

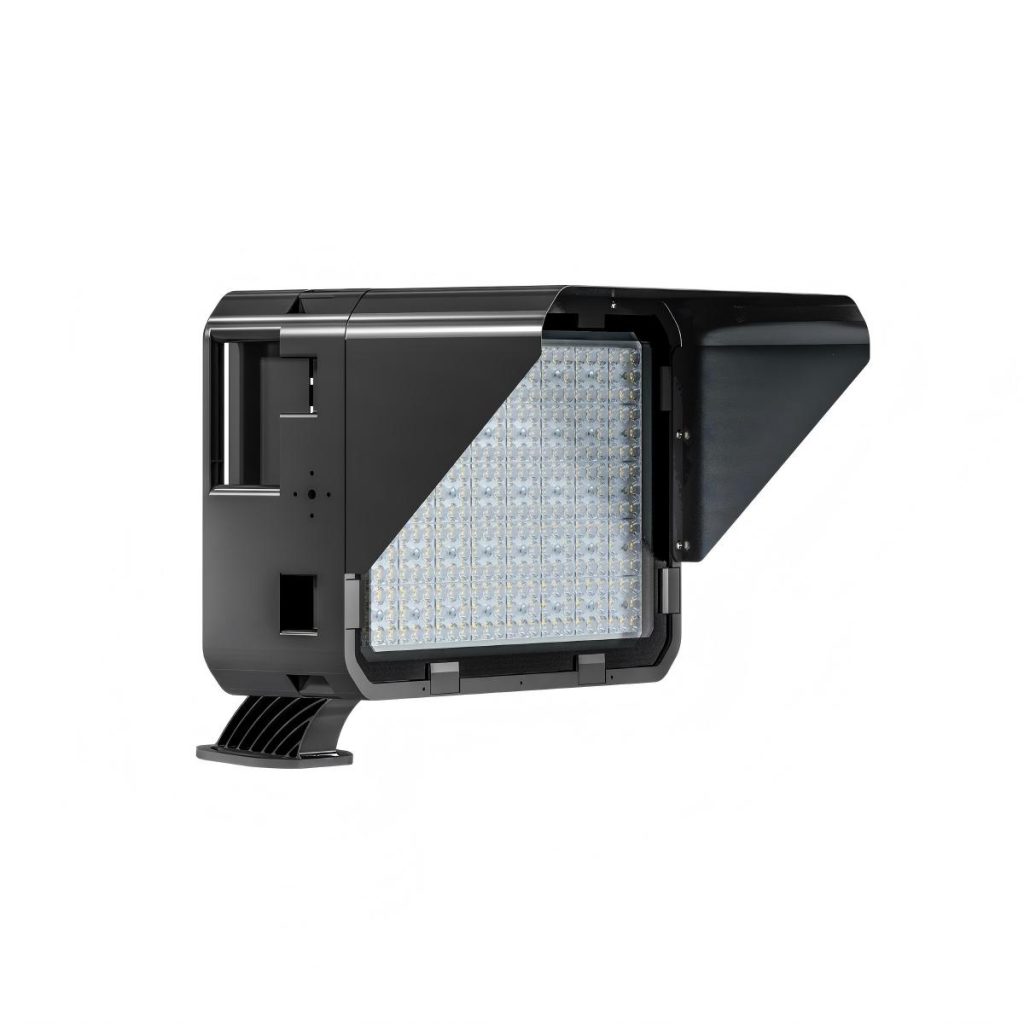

The 300W and 400W fixtures measure 345 × 345 × 179 mm and weigh approximately 10.5-11 kg. The 500W, 680W, and 750W fixtures measure 495 × 345 × 179 mm; confirmed 500W and 680W weights are approximately 15-16 kg. The 1500W fixture measures 778.8 × 570.5 × 531.8 mm. Final weight drawings for 750W and 1500W should be confirmed before ordering.

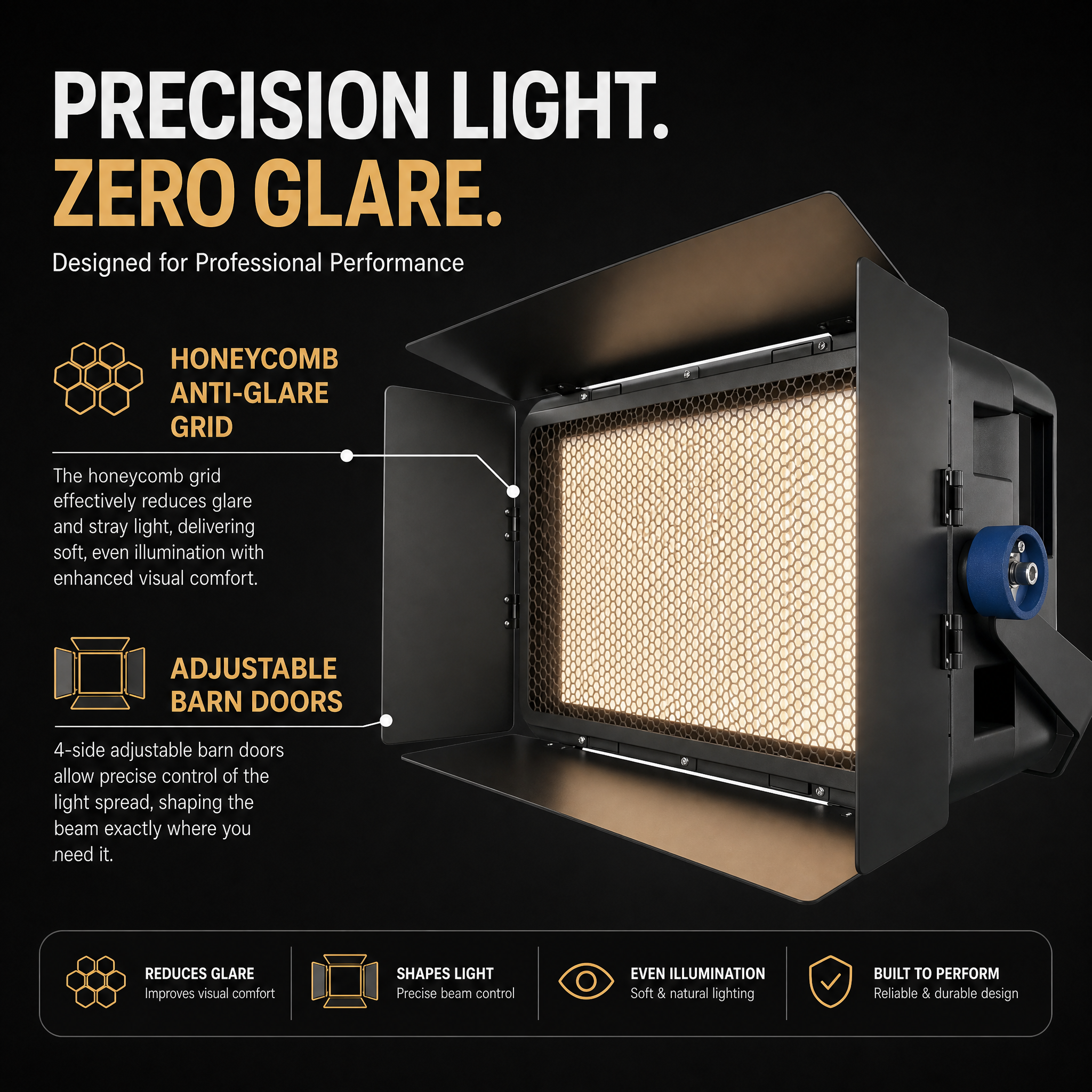

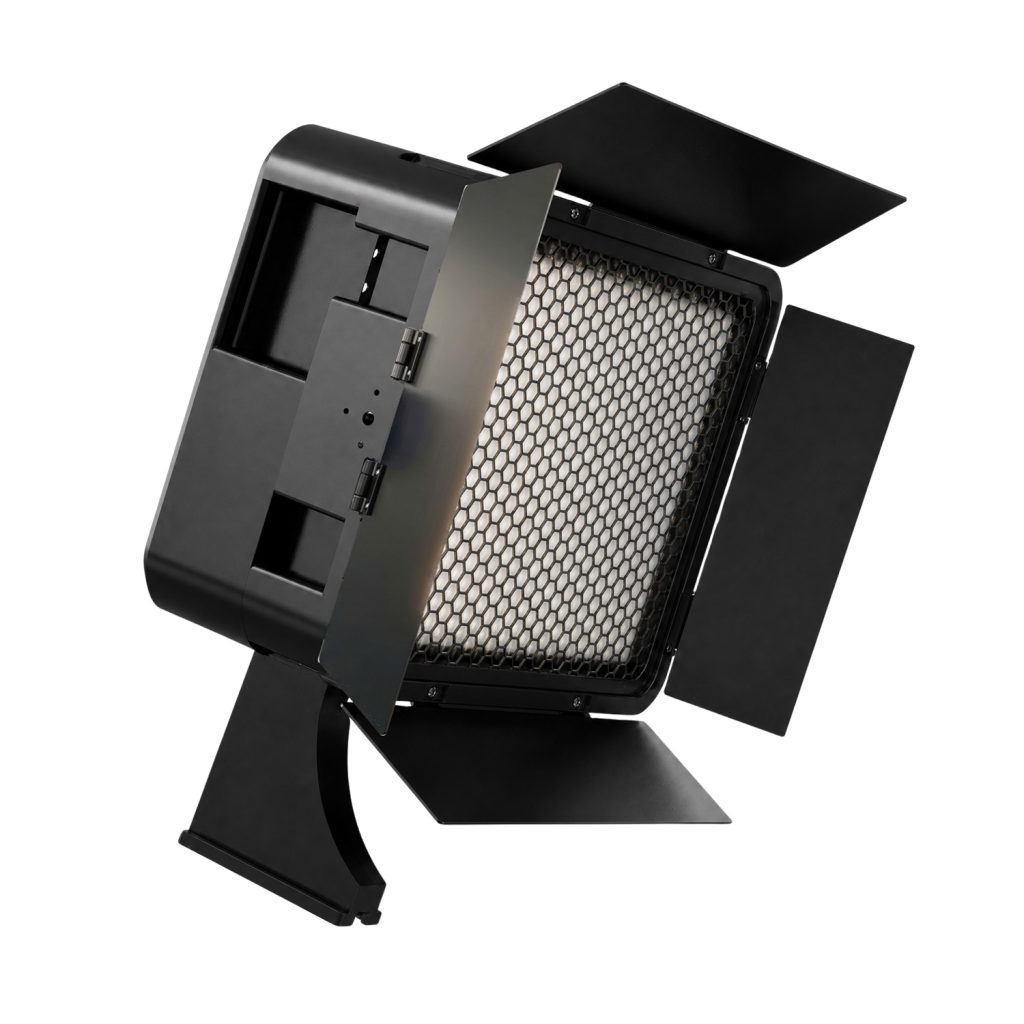

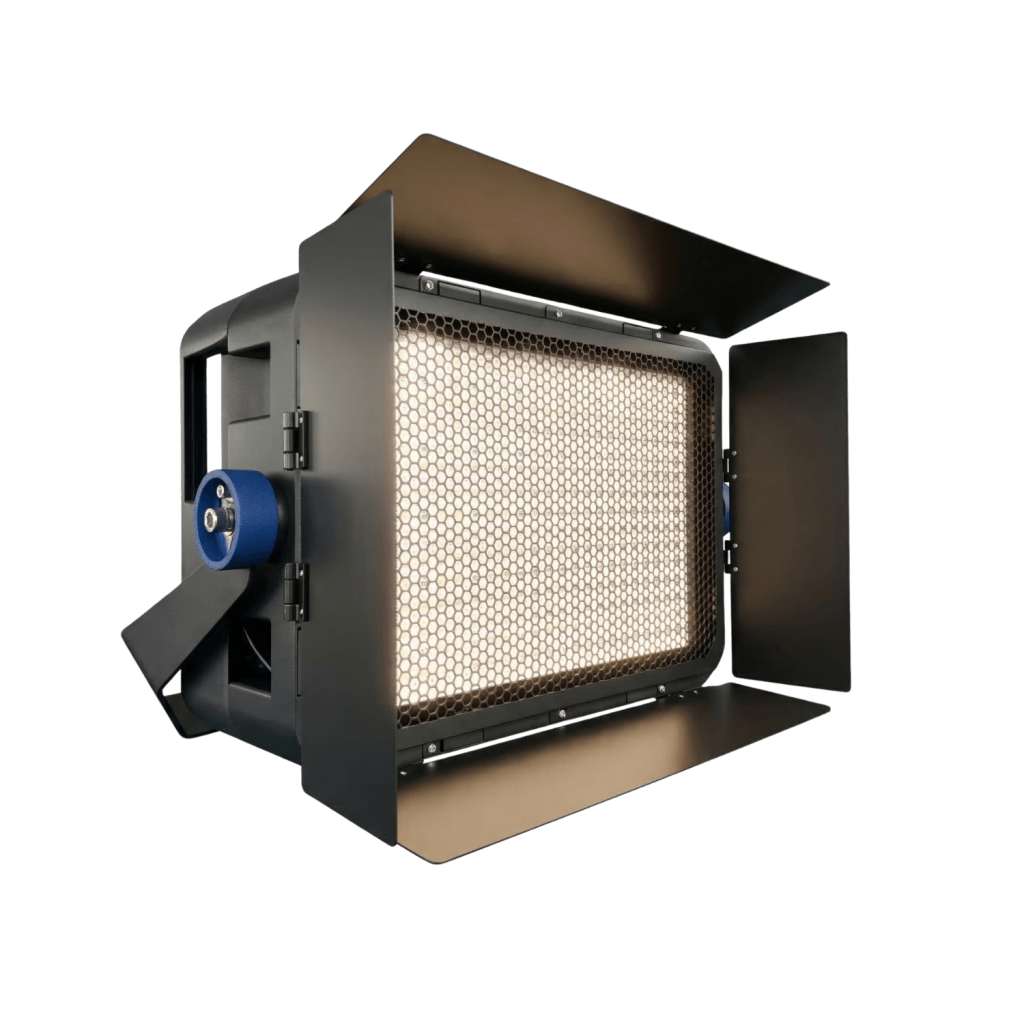

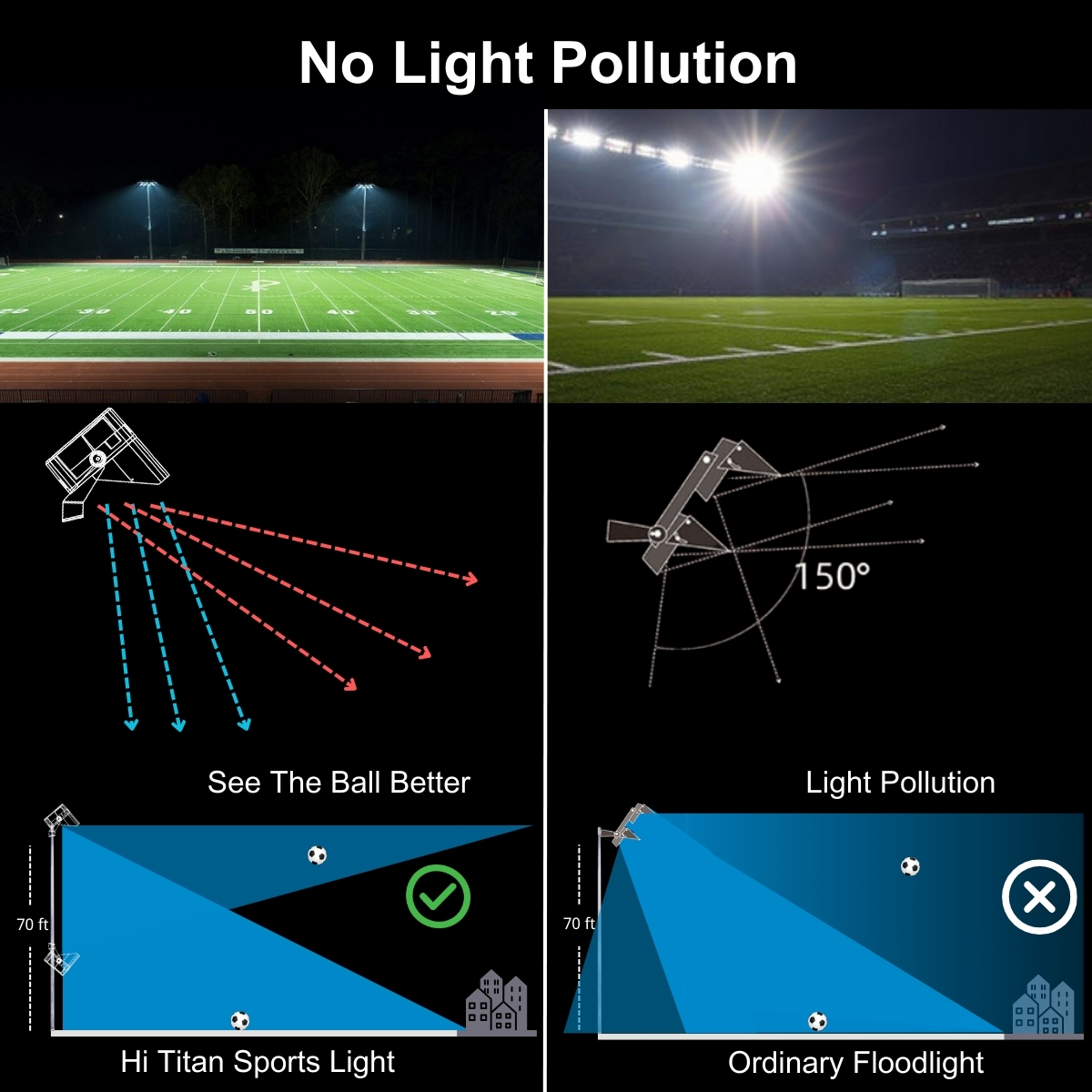

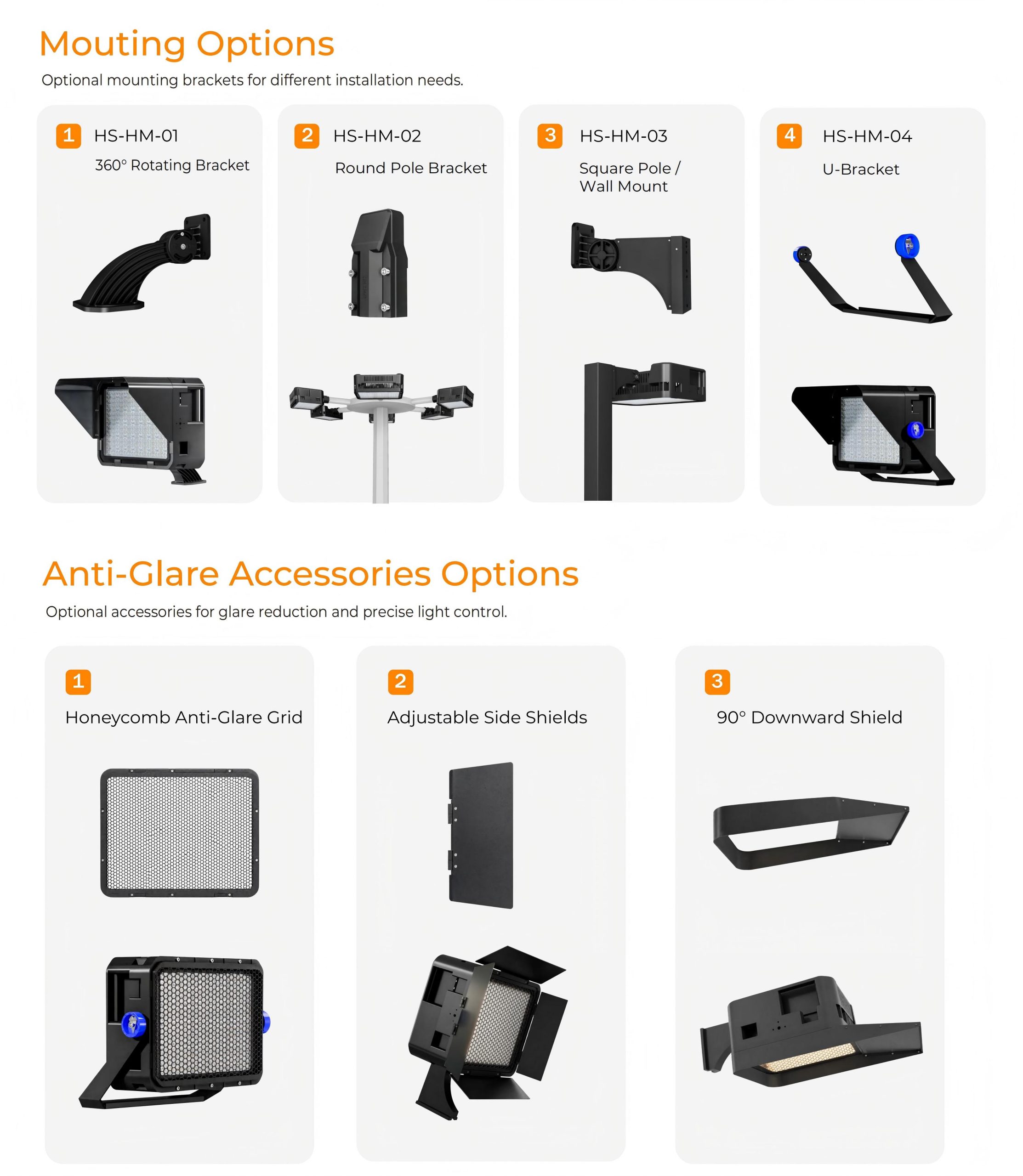

The optional honeycomb louver limits direct glare and spill light, while adjustable visors shape the beam edge and block unwanted light toward stands, roads, nearby buildings, or sensitive boundaries. Both accessories should be selected together with the lighting calculation.

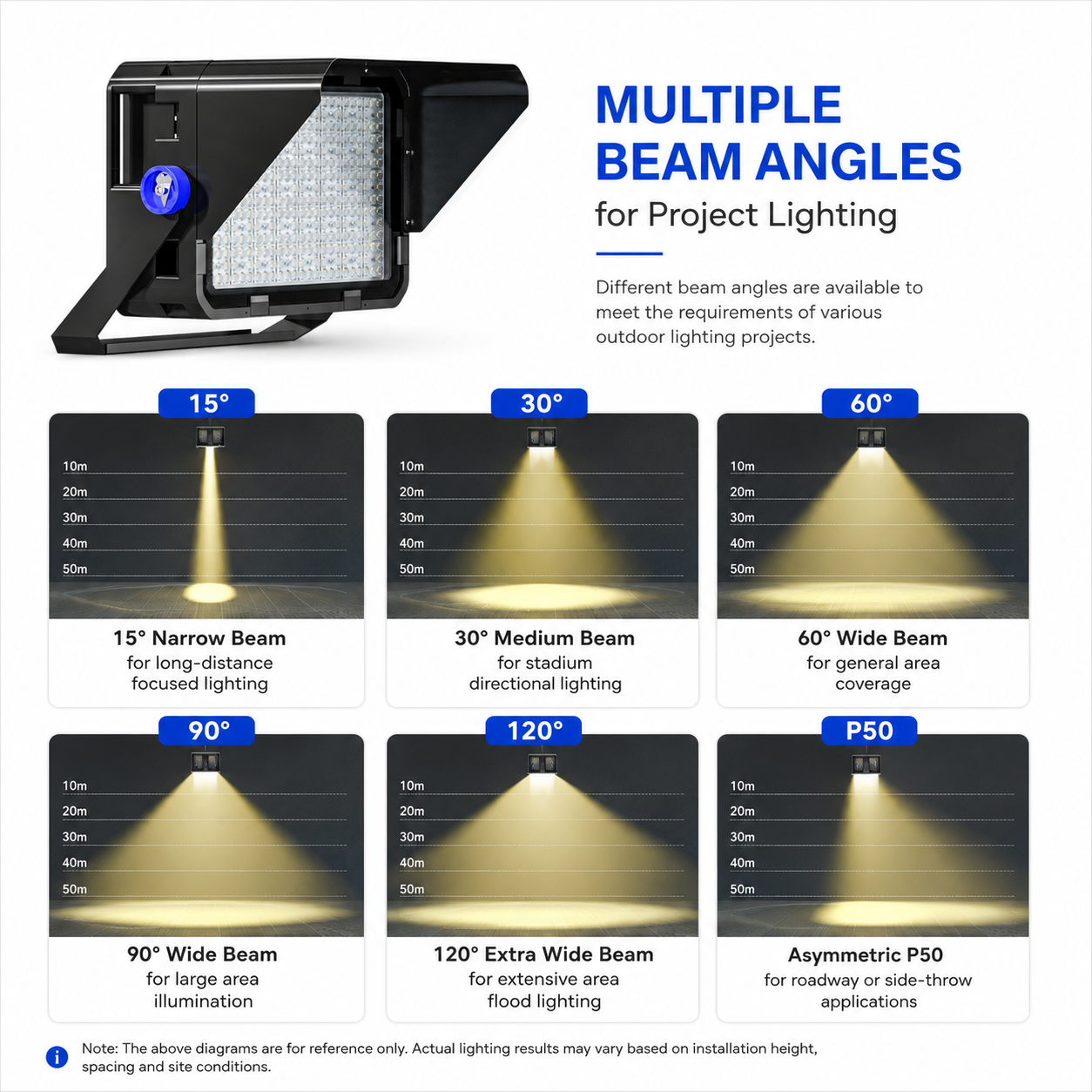

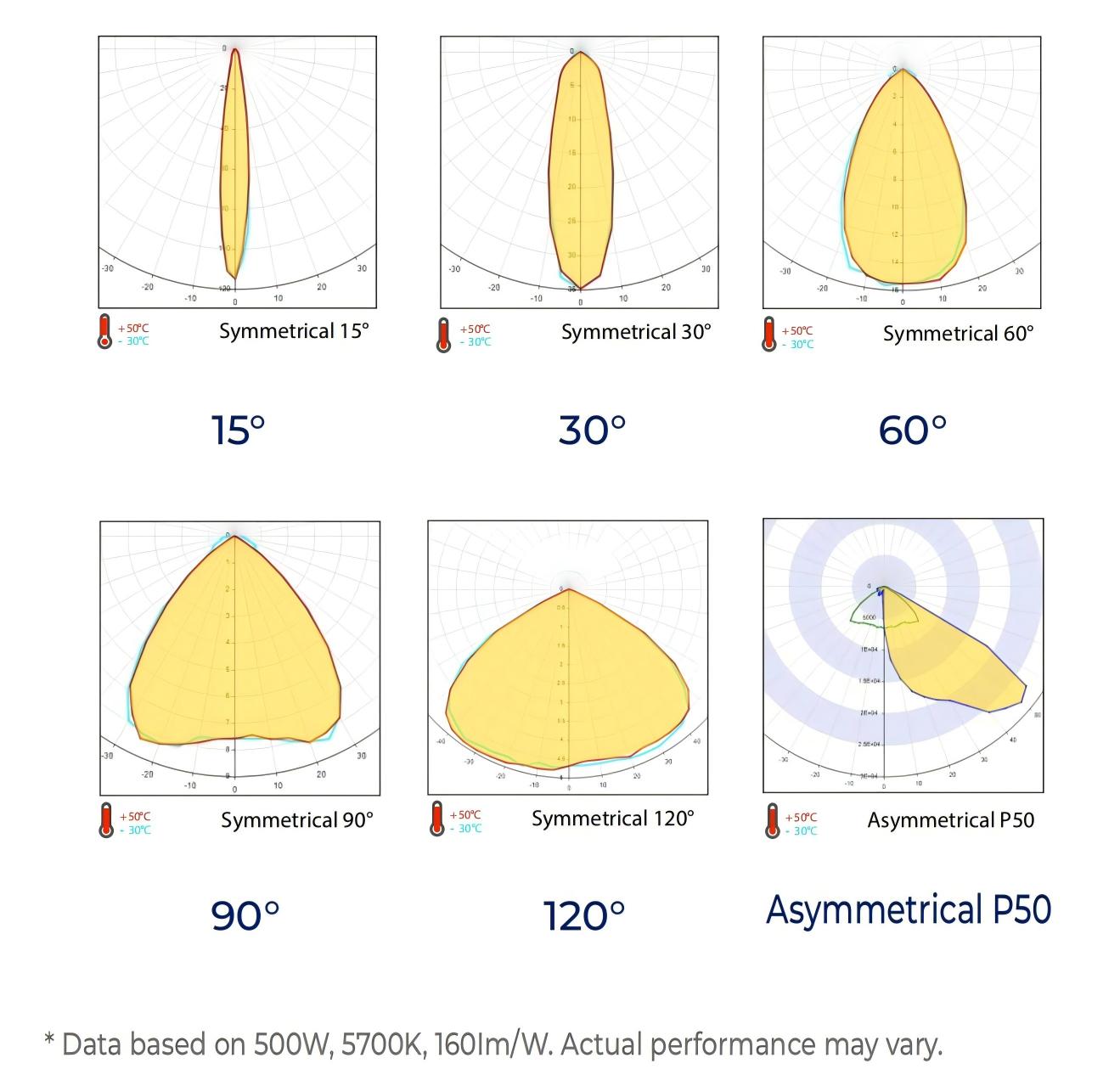

Current quotation options for the 3030 version include 15°, 30°, 60°, 90°, 120°, and asymmetric P50. The 5050 quotation lists 30°, 60°, 120°, and P50 for 300W-680W. Hishine can provide IES files and DIALux support; 750W and 1500W photometry must be confirmed against the final IES file.

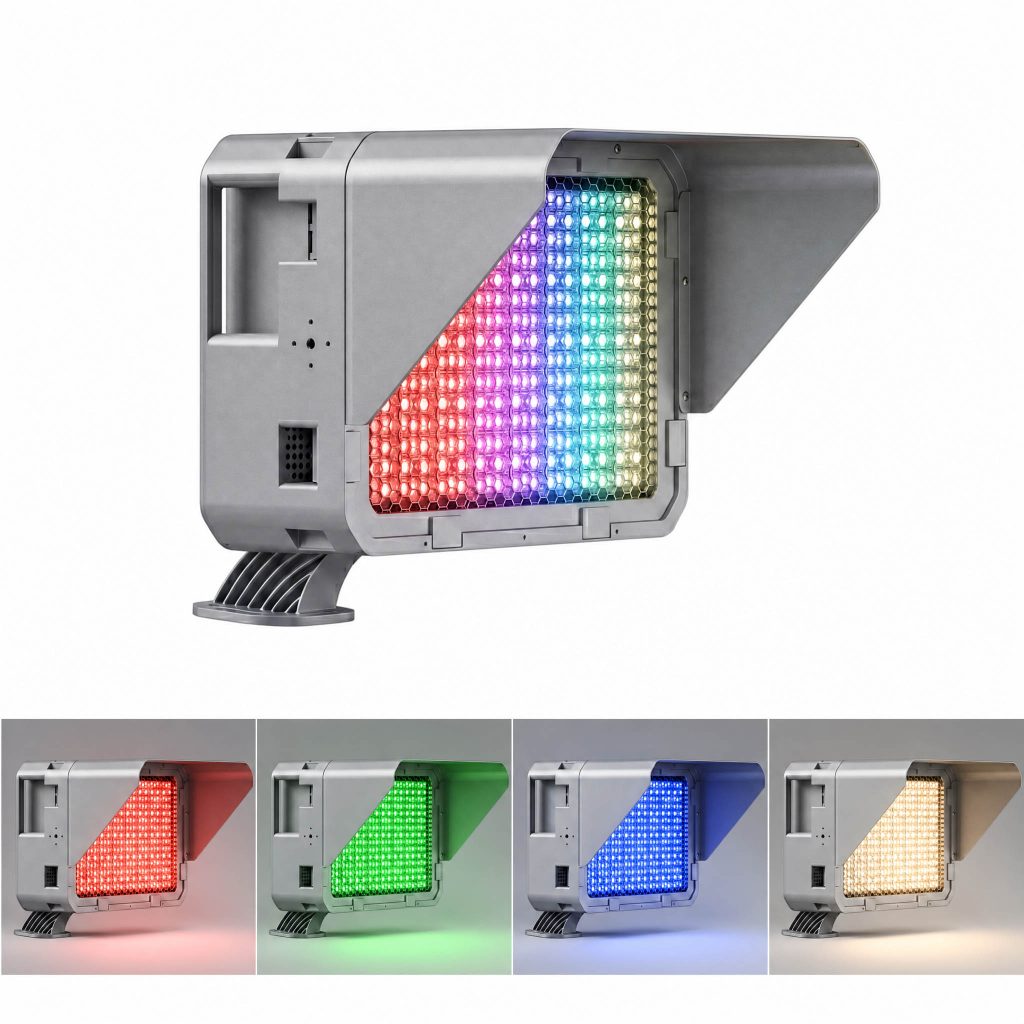

Yes. An optional RGBW configuration supports four-color mixing, 0-100% smooth dimming, low-flicker effects, and programmable scenes for ceremonies, entertainment events, architectural lighting, and stadium atmosphere lighting.

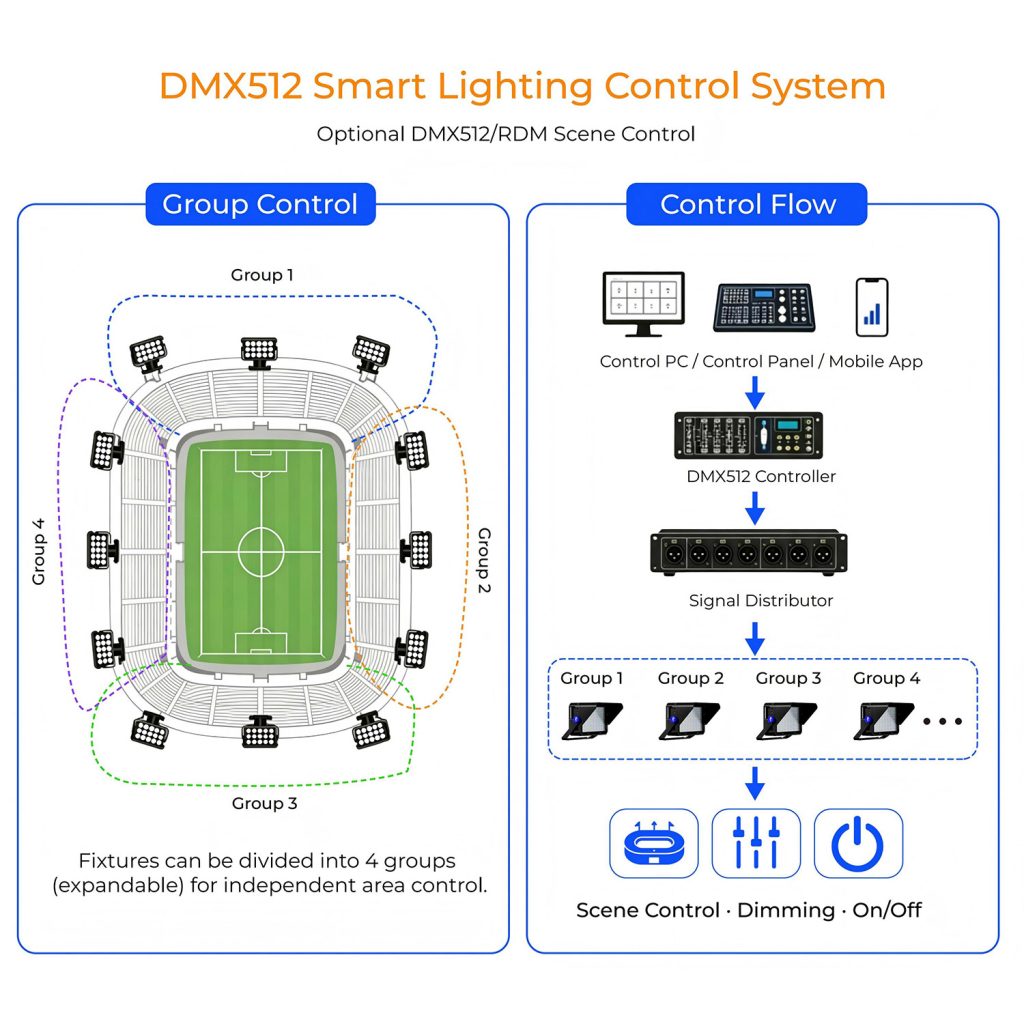

Yes. Optional DMX512 and RDM control can support luminaire addressing, grouping, synchronized effects, scene control, and integration with gateways or a stadium lighting management platform. The control architecture should be confirmed during project design.

Hi-Titan supports 100-277V configurations and project-specific high-voltage driver options. The product platform is rated IP66 and IK08, with C4-H corrosion protection, 10kV/20kV surge options, power factor of at least 0.95, and an operating range of approximately -30°C to +50°C. Confirm the exact driver and voltage before ordering.

The product specification supports sports broadcast applications and states residual flicker below 1%. Final compliance depends on the required competition level, camera frame rate, illuminance, uniformity, glare, CRI, and control configuration. The standard product documentation lists a 5-year warranty, subject to the confirmed project configuration and warranty terms.

Please provide the application, field dimensions, mounting height, pole quantity and positions, target illuminance and uniformity, preferred wattage or chip version, input voltage, beam and anti-glare requirements, control method, quantity, certification needs, and project schedule. Hishine can then prepare a suitable configuration, IES selection, DIALux calculation, and quotation.
