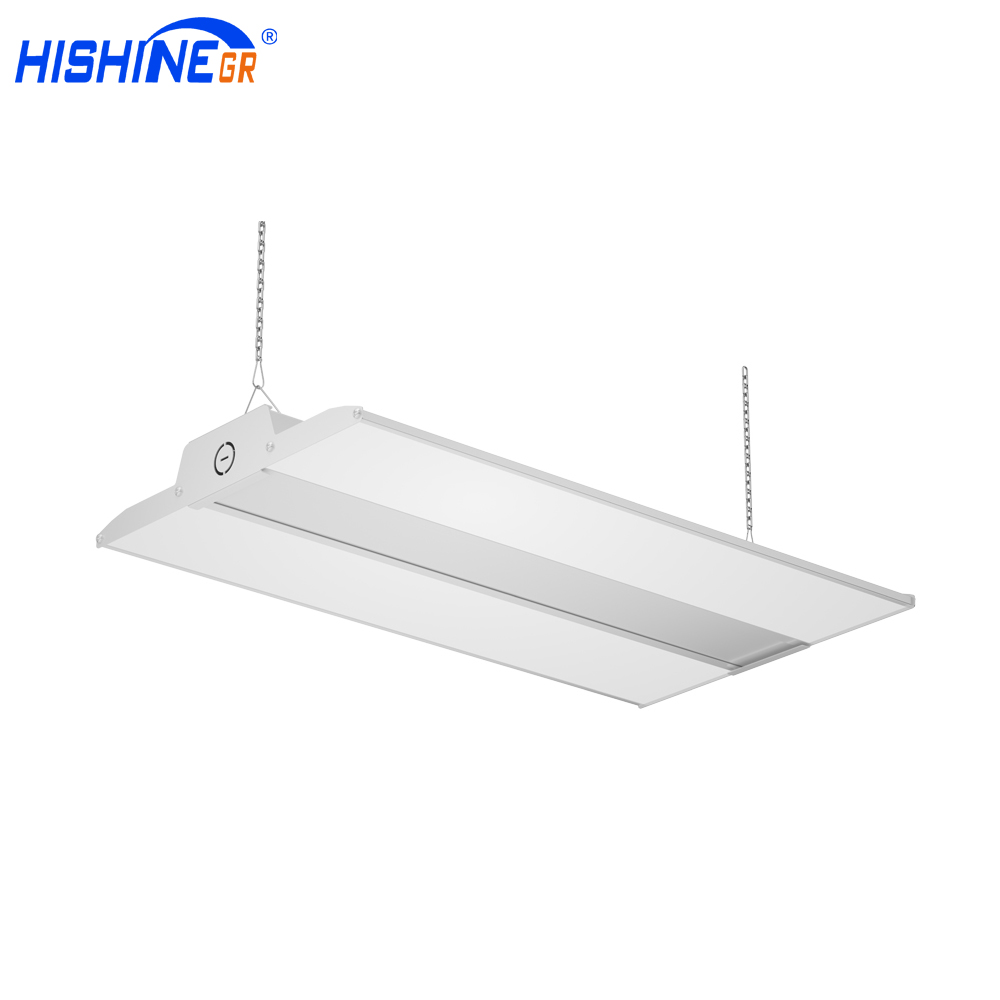

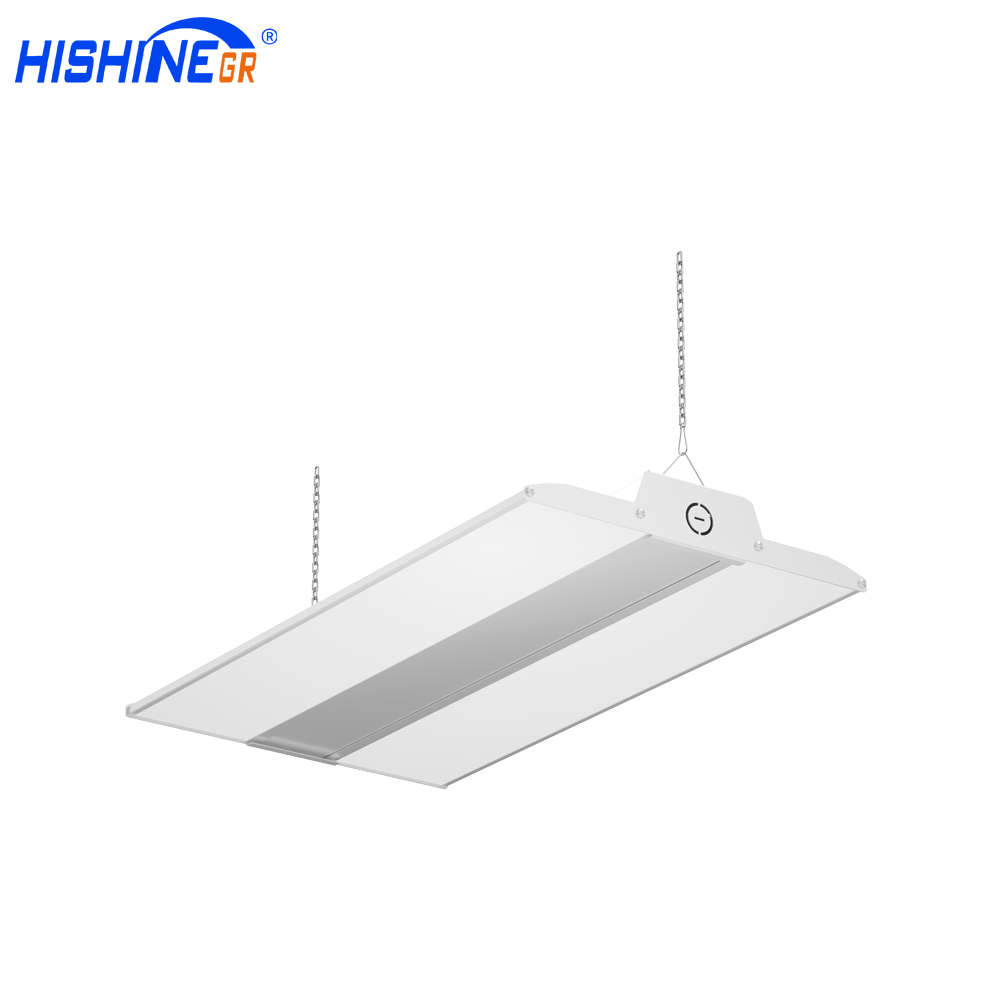

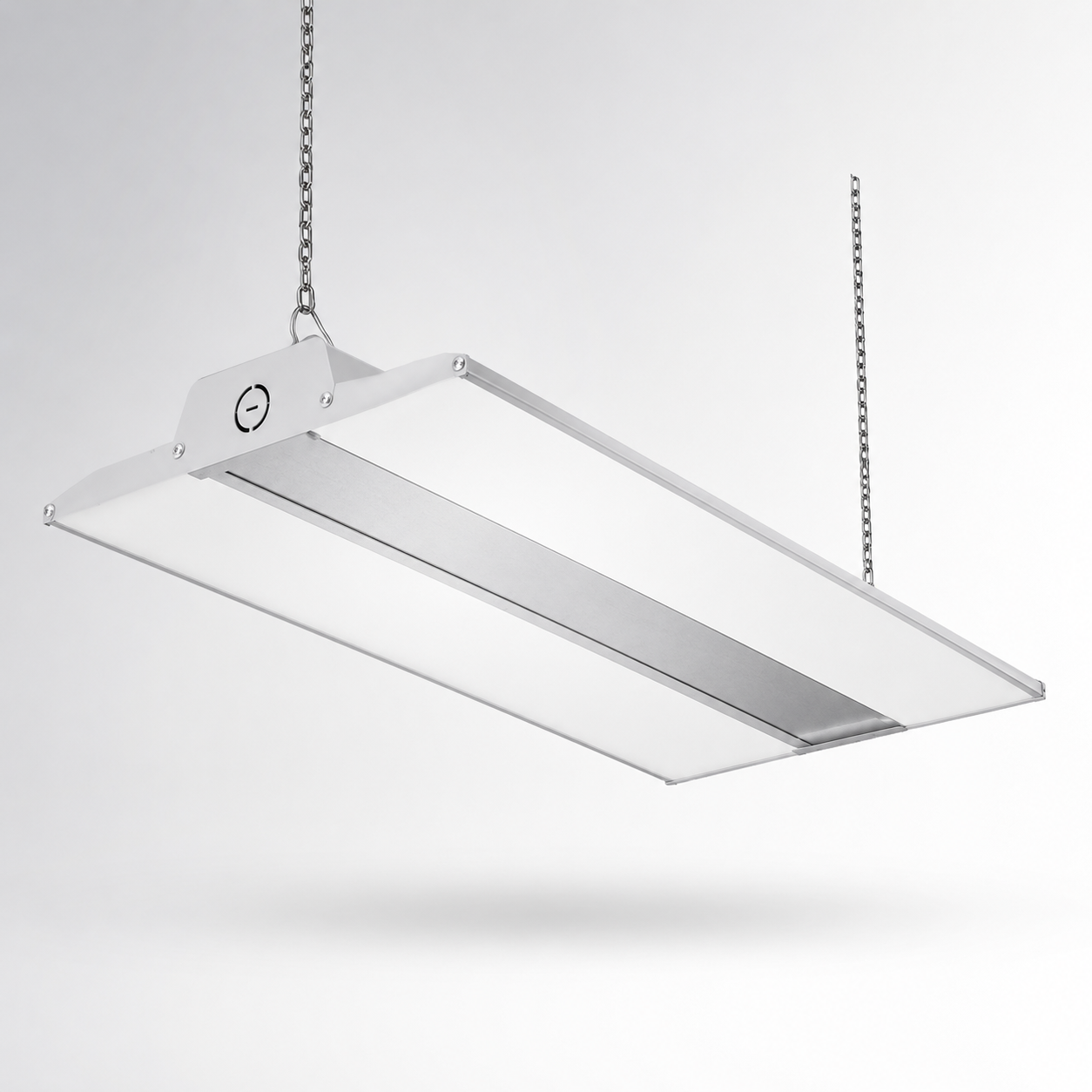

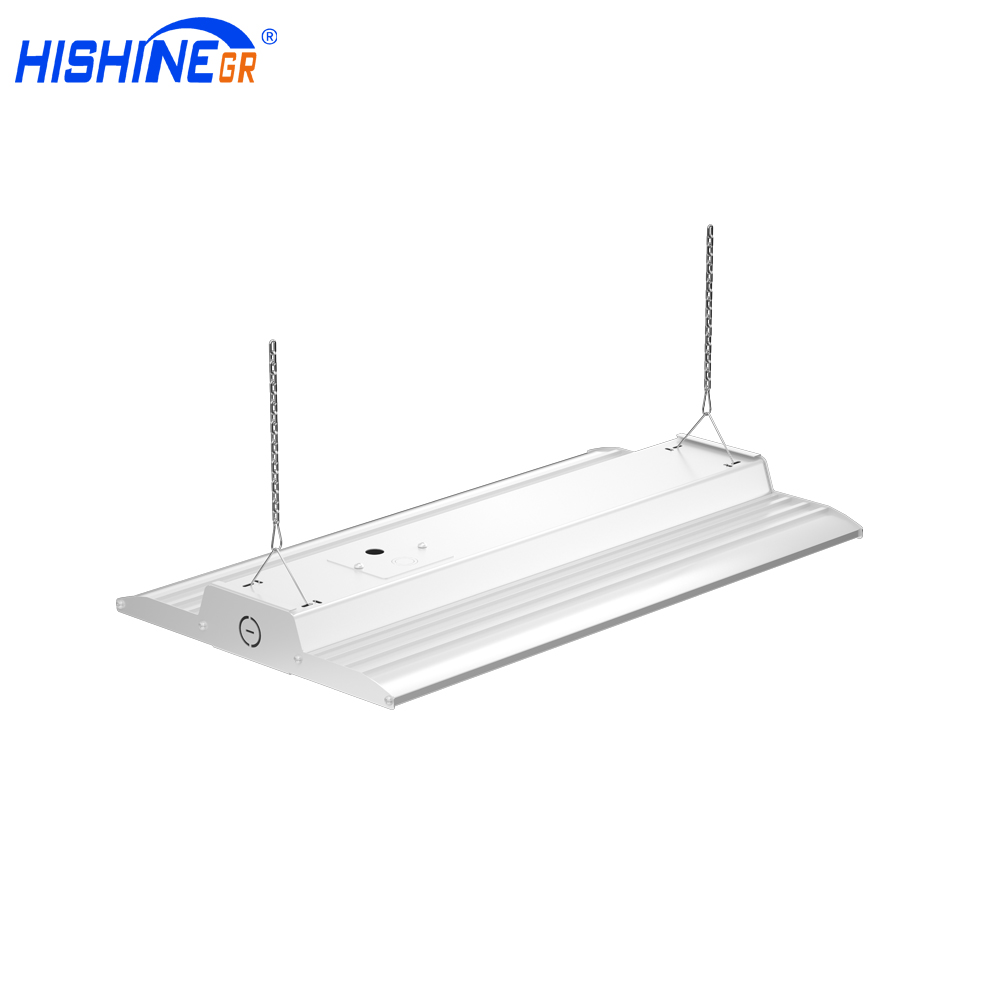

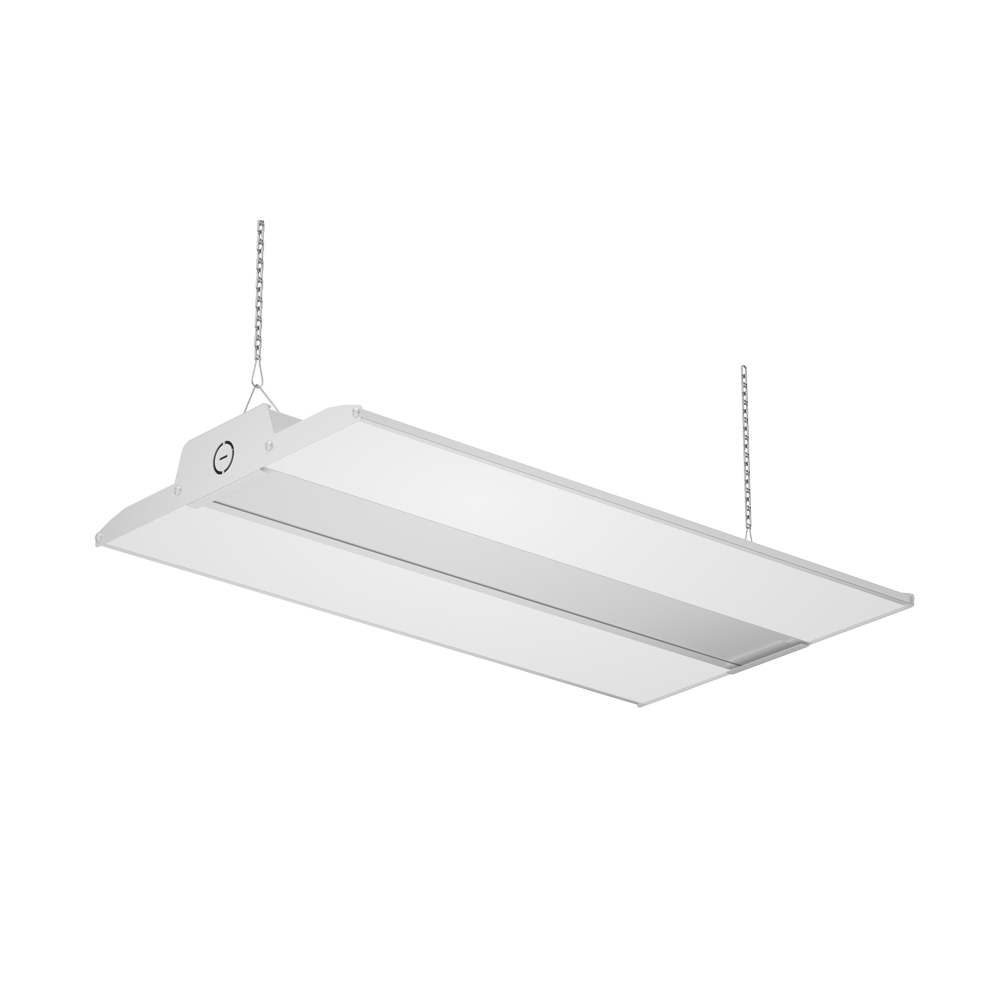

Hishine K9 LED Linear High Bay Light
Hishine K9 LED Linear High Bay Light is an industrial LED linear high bay light for warehouses, factories, workshops, and logistics centers.
Features
Linear high bay design for industrial applications
Linear high bay design for industrial applications
High efficiency LED system
High efficiency LED system
Aluminum heat dissipation structure
Aluminum heat dissipation structure
Anti-glare optical design
Anti-glare optical design
Modular driver system
Modular driver system
Hishine K9 LED Linear High Bay Light Features
- Linear high bay design for industrial applications
- High efficiency LED system
- Aluminum heat dissipation structure
- Anti-glare optical design
- Modular driver system
Specification
| Model | Power | LED Chip | Luminous / Flux | Beam Angle | IP / Rating | Lamp Size | Input Voltage | Driver |
|---|---|---|---|---|---|---|---|---|
| HS-HB40W-K9 | 40W | SMD2835 | 200lm/w | 120° | 300*342*55mm (1FT*13.5''*2.2'') | AC100-277V | HS Driver | |
| HS-HB80W-K9 | 80W | SMD2835 | 200lm/w | 120° | 300*342*55mm (1FT*13.5''*2.2'') | AC100-277V | HS Driver | |
| HS-HB100W-K9 | 100W | SMD2835 | 200lm/w | 120° | 600*342*55mm (2FT*13.5''*2.2'') | AC100-277V | HS Driver | |
| HS-HB150W-K9 | 150W | SMD2835 | 200lm/w | 120° | 600*342*55mm (2FT*13.5''*2.2'') | AC100-277V | HS Driver | |
| HS-HB200W-K9 | 200W | SMD2835 | 200lm/w | 120° | 900*342*55mm (3FT*13.5''*2.2'') | AC100-277V | HS Driver | |
| HS-HB250W-K9 | 250W | SMD2835 | 200lm/w | 120° | 900*342*55mm (3FT*13.5''*2.2'') | AC100-277V | HS Driver | |
| HS-HB300W-K9 | 300W | SMD2835 | 200lm/w | 120° | 1200*342*55mm (4FT*13.5''*2.2'') | AC100-277V | HS Driver |
Optics
Hishine K9 LED Linear High Bay Light supports project-oriented optical distribution. Beam options from the quotation include 120°. Contact Hishine for IES files and lighting simulation.
Applications
Applications
- Warehouses
- Factories
- Workshops
- Logistics centers
- Industrial halls
Video
Cases
Project cases can be added based on installation photos, DIALux reports, and customer application references.
Download
Datasheets, IES files, certificates, and manuals can be uploaded in the Downloads fields when available.
FAQ
K9 is available in 40W-300W according to the quotation data. Hishine can recommend a suitable wattage based on installation height and target lux level.
Yes. Hishine can provide IES files and lighting simulation support for project evaluation before bulk procurement.
K9 is suitable for Warehouses, factories, workshops, logistics centers, industrial halls.
Yes. Hishine supports OEM/ODM customization for B2B buyers, including product configuration, branding, packaging, and project requirements.
Send your installation height, application area, quantity, voltage, certification requirements, and project schedule. Hishine sales will reply with a suitable product recommendation.
