500W LED Linear Warehouse Light

Product Parameters:

  • Part Number: HS-HB500W-K5-B
  • Wattage: 400W
  • Luminous Efficacy: 200LM/W
  • Lumen Output: 10000lm
  • Warranty: 7 years
  • Certification: UL,DLC,CB,CE,SAA

Product Details

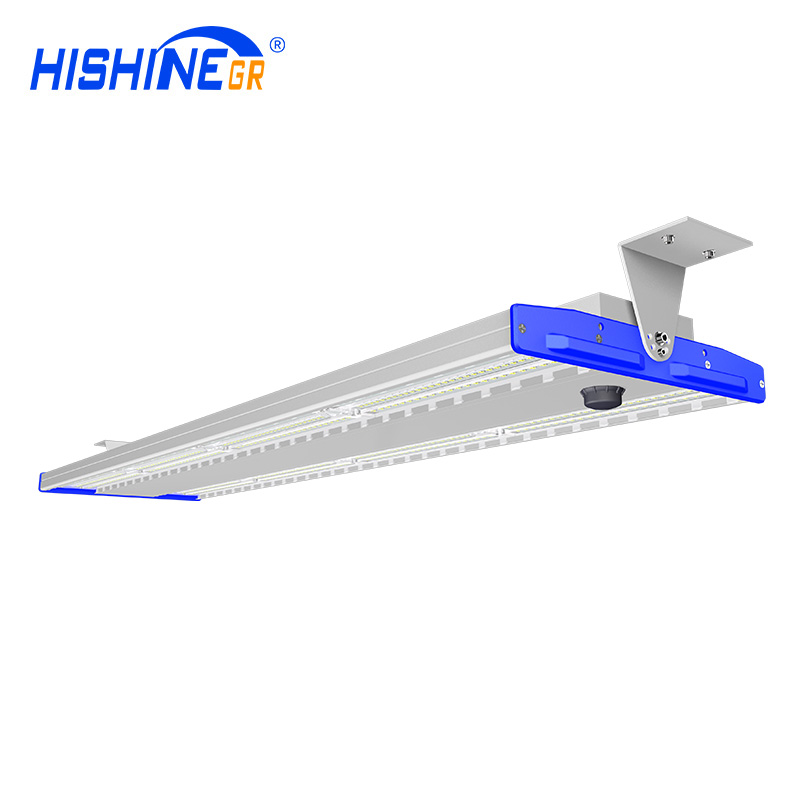

500W LED Linear Warehouse Light插图

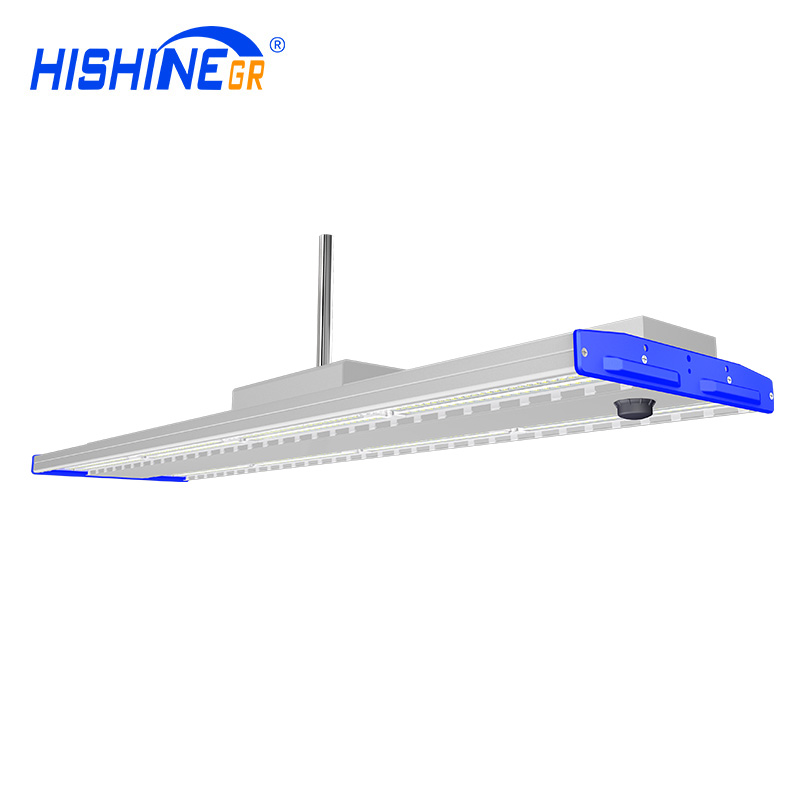

500W LED Linear Warehouse Light插图1


When planning or upgrade warehouse lighting, there are many factors to consider. The upgraded version of K5-B LED Linear high bay light can provide high lumens of over 190lm/w for industrial lighting, corridors, indoor parking lots, shopping malls and exhibition halls. The heat sink adopts aluminum stretching process, the lens adopts diamond cutting process, and provides a variety of light-emitting angles. Smart standard base, only need to replace the sensor module to change the smart mode. Support infrared remote control, Zigbee, Bluetooth Mesh, high altitude microwave sensor, infrared light sensor, Zigbee version supports heat map, supports light decay compensation. It improves cost performance and market competitiveness.


500W LED Linear Warehouse Light Dimension


500W LED Linear Warehouse Light插图2



500W LED Linear Warehouse Light Technical Parameters


Part Number HS-HB500W-K5-B
Wattage 500W
Lumen Output 10000lm
LED Quantity 1536pcs
Size(MM) L1203*W299*H62
LED Chip Lumileds 2835
Luminous Efficacy 200LM/W
CCT 3000K-6500K
CRI ≥80
Beam Angle 60°/90°/120°
IP Rating IP54
Working Temperature -30℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, >0.92
Warranty 7 years
Lifespan >50,000hrs
Material Die-casting Aluminum housing+PC lens



Why Choose 500W LED Linear Warehouse Light?


High efficiency up to 190lm/w


K5-B LED linear high bay light is an upgraded version of K5. It uses high-brightness Lumileds 2835 lamp beads to make the whole lamp high efficiency up to 190lm/w. It is also the highest lumen linear lamp on the market.

500W LED Linear Warehouse Light插图3

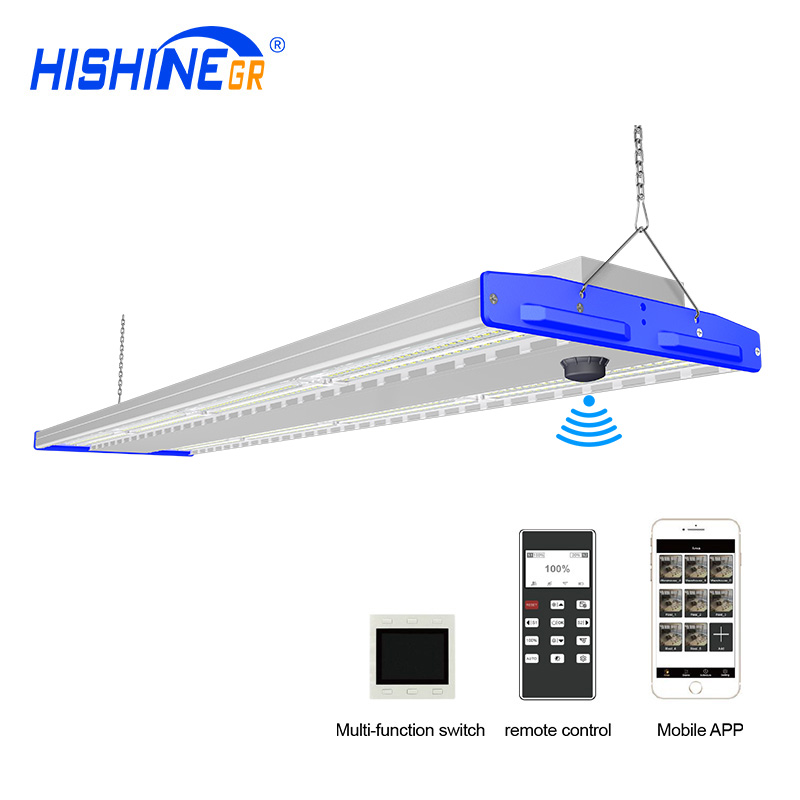

Intelligent control option

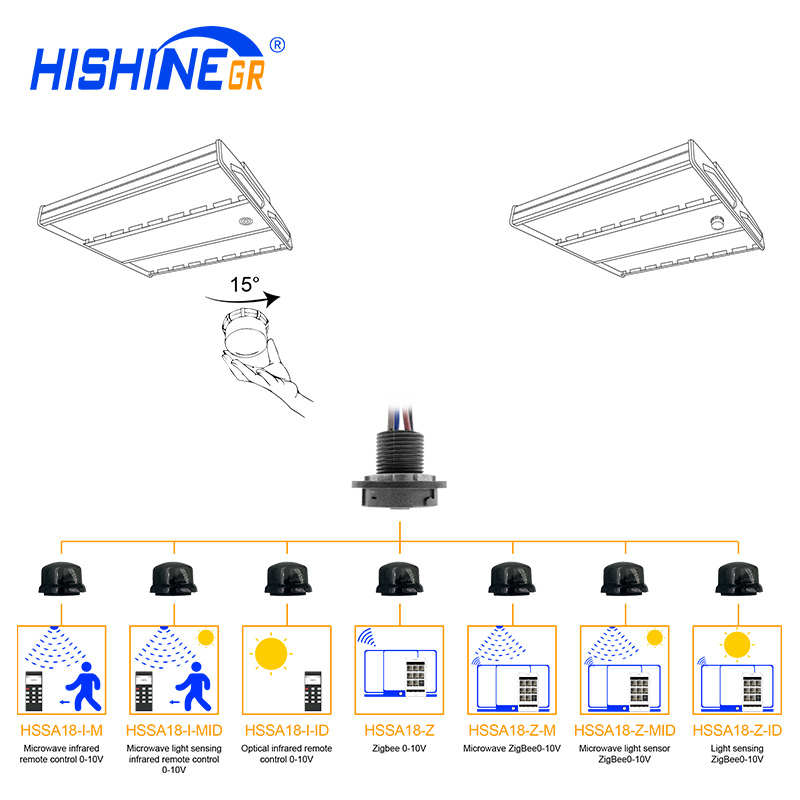

Just replace the smart accessories and install Intelligent control freely: infrared remote control, Zigbee, Bluetooth Mesh, high-altitude microwave sensor, infrared light sensor, Zigbee version supports heat map, supports light decay compensation


500W LED Linear Warehouse Light插图4

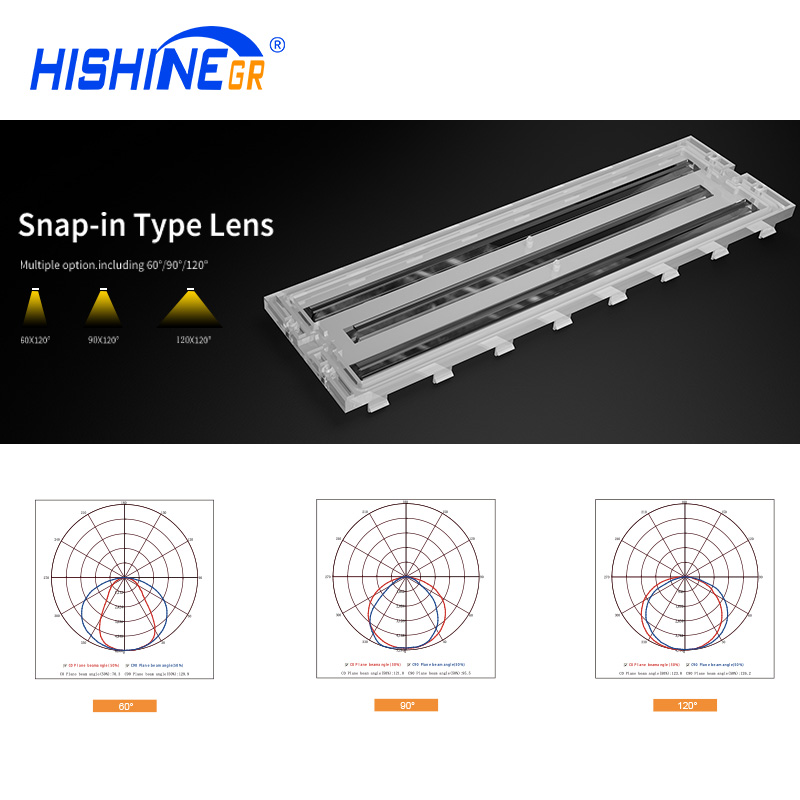

Snap-in Type Lens PC Lens 30×120° / 60×120° / 90×120° , Milky Lens /Transparent Lens optional


Linear high bay has multiple different beam pattern options to suit different lighting requirements in different areas of the warehouse.Good color rendering, more vivid presentation of the real color.All kinds of light color is optional, can satisfy the demand of different environment.The depressed emotion caused by high or low temperature makes the visual sense more comfortable and improves the working efficiency of workers.


500W LED Linear Warehouse Light插图5



Special Process Surface Treatment


Sandblasting oxidation treatment on heat sink makes fixture body insulated with better abrasion performance and corrosion resistance


500W LED Linear Warehouse Light插图6



NEW 400W K5-B LED Linear High Bay Light Multiple Mounting Options


500W LED Linear Warehouse Light插图7



500W LED Linear Warehouse Light Applications


Widely used in Factory, Workshop, Warehouse, Logistics Center Exhibition Hall,Gymna-sium, Shipyards, Mining, Gas Station, Supermarket, etc.


500W LED Linear Warehouse Light插图8
