Product

Hi-Robot LED Stadium Flood Light football field court lighting

Product Parameters:

  • Wattage: 120W 320W 480W 720W 960W 1500W
  • Luminous Efficacy: 160LM/W
  • Warranty: 7 years
  • Certification: UL, DLC, CB, CE, SAA, SASO, IP67

Product Details

Product name: LED Stadium Flood Light


Overview:

Hi-Robot LED Stadium Floodlights (DLC) have been approved for rebates in many cities. The high-lumen design makes the power of 1500W LED floodlight Up to 160LM/W. The hexagonal design has the largest cooling area and the best heat dissipation performance, and the service life is more than 100,000 hours, while the service life of HID bulbs is less than 10,000 hours. The zero flicker light is very suitable for slow-motion images and HD TV live broadcasts. Provide excellent security, warehouses, buildings, landscapes, stadiums, playgrounds, and surrounding outdoor lighting. These floodlights are waterproof and consume 70% less power. Use UL-rated IP67 Meanwell drives. Use these high-lumen floodlights to make the most of your stadium light lumens.

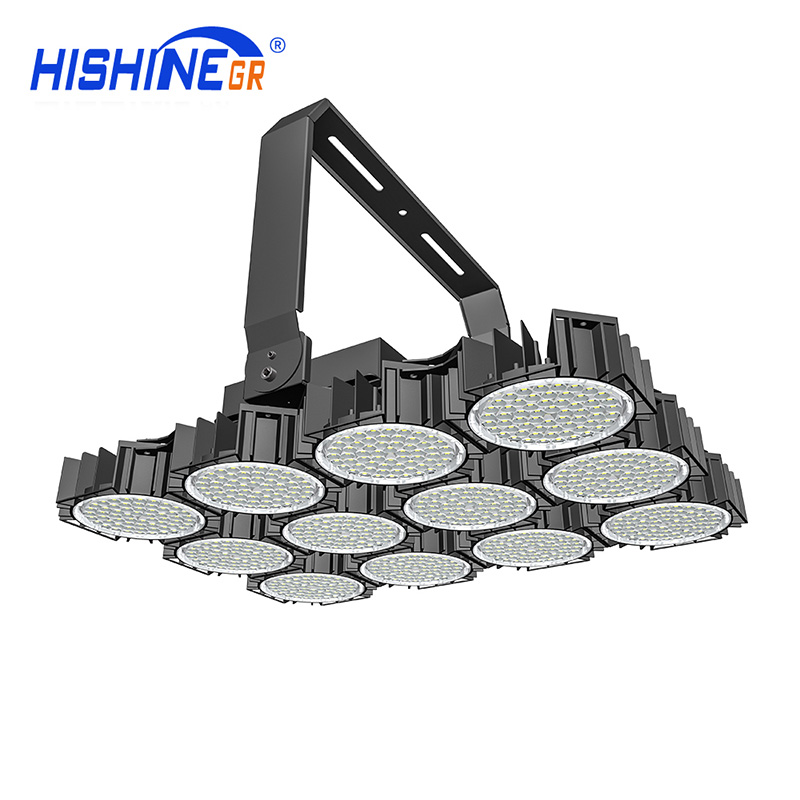

Hi-Robot LED Stadium Flood Light football field court lighting插图

Why Choose Hi-Robot Stadium Lights?


-Modular design



-320W/480W/720W/1000W/1300W, 160 LM/W



-UL / DLC/CB/SASO/RoHS/CE/SAA/IK10 approved



-20°, 30°, 45°, &60°x100° beam angle



-AC100-277 or AC240-480 Voltage



-5000K CCT (4000 & 6000K optional)



-Drag coefficient: 12 windage



-Custom bracket optional



-1-10v dimming, intelligent dimming (light control, optional wireless control)



-Intelligent control system



-Wind Test Certified & 20KV Surge Protection.



-Power Factor .95, IP Rating: IP66



-Equipped with a 6FT Power Cord (12FT Power Cord Optional)

HI-ROBOT LED Flood Lighting Specifications


Part Number HS-HM320W-A HS-HM480W-A HS-HM720W-A HS-HM1000W-A HS-HM1500W-A
Wattage 320W 480W 720W



1000W 1500W



Lumen Output 51200lm 76800lm 115200lm



160000lm 240000lm



LED Quantity 180pcs 240pcs 360pcs



540pcs 720pcs



Size(MM) L690*W230*H75 L460*W460*H75 L690*W460*H75 L690*W690*H75 L920*W690*H75
LED Chip Lumileds 5050
Luminous Efficacy 160LM/W
CCT 3000K-6500K
CRI 70Ra/80Ra/90Ra
Beam Angle 20°/30°/45°/60°X100°
IP Rating IP67
SPD 20kV SPD standard (40kV optional)
Working Temperature -30℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, >0.92
Warranty 7 years
Lifespan >100,000 Hrs
Material Die-casting Aluminum housing+PC lens
Certificates UL/CB/CE/ROHS/SAA/SASO/IK10



Actual Picture

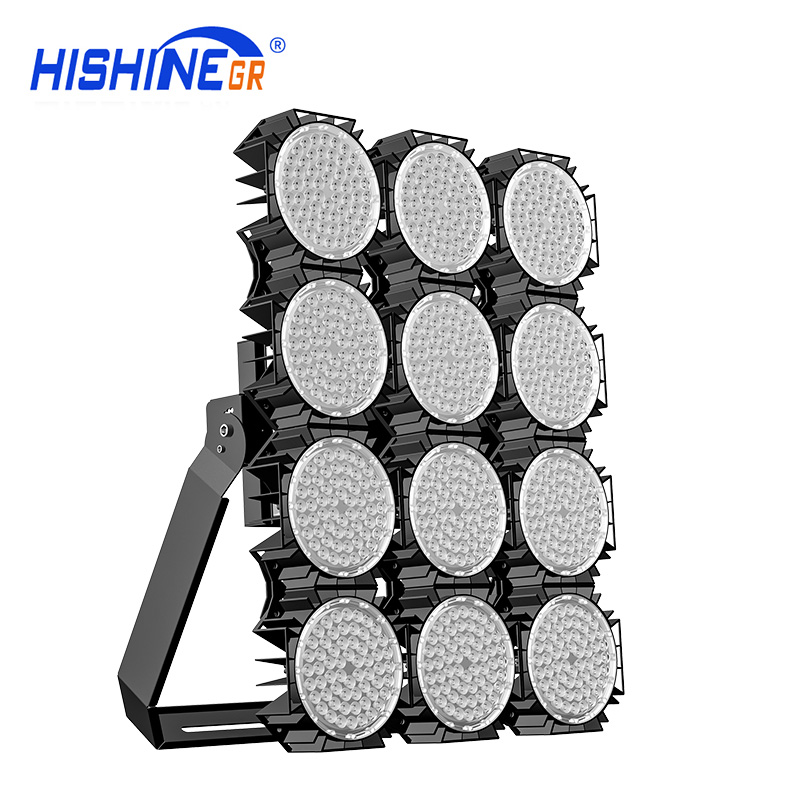

Hi-Robot LED Stadium Flood Light football field court lighting插图1

Hi-Robot LED Stadium Flood Light football field court lighting插图2

Application


※ Olympic Stadium: Hi-Robot provides bright and even illumination for players and spectators. With DMX/DALI control high mast light can make complex light shows and scene modes.

※ Outdoor Sports Arenas: 160LM/W  provides powerful illumination that allows games to be played well into the night. Such as basketball fields, soccer fields, tennis courts, rugby fields, beach volleyball fields, baseball fields, hockey fields, racetracks, velodromes, golf courses, and swimming pools…

※ Indoor Sports Arenas: Hi-Robot’s design allows the lamps to be evenly distributed across the playing surface.

※ Port Terminals: Super high mast light provides bright and efficient illumination that enhances safety and visibility.

※ Airport and Aprons:  Hi-Robot high mast light’s powerful illumination and Typhoon 12 resistance allow workers to see, even in low-light conditions, reducing the risk of accidents and increasing productivity.

※ Squares and School Playgrounds: Hi-Robot high mast light powerful illumination allows children to play safely, even in low-light conditions, reducing the risk of accidents and increasing playtime.

※ Circular Roads and Bridges:  Hi-Robot high mast light’s high brightness lighting chip and IP67 waterproof, make road driving safe and bright.

※ Prison Courtyards: Powerful illumination allows drivers and security personnel to see, even in low-light conditions, reducing the risk of accidents and enhancing security.

Tennis Court Lighting Solution in Cyprus

Hi-Robot LED Stadium Flood Light football field court lighting插图3

Football Court Lighting Solution in Malaysia

Hi-Robot LED Stadium Flood Light football field court lighting插图4

Meet More Application Requirements


-Football field, stadium, football field, baseball field, golf course, basketball court, swimming pool, hockey field, volleyball court and racing field

-Entertainment areas, parks, and tennis courts

-Large parking lot and airport, seaport terminal

-High mast applications on highways and bridges

-Lighting for oil refineries, drilling platforms, derricks, prisons, military camps and manufacturing sites

Related Products

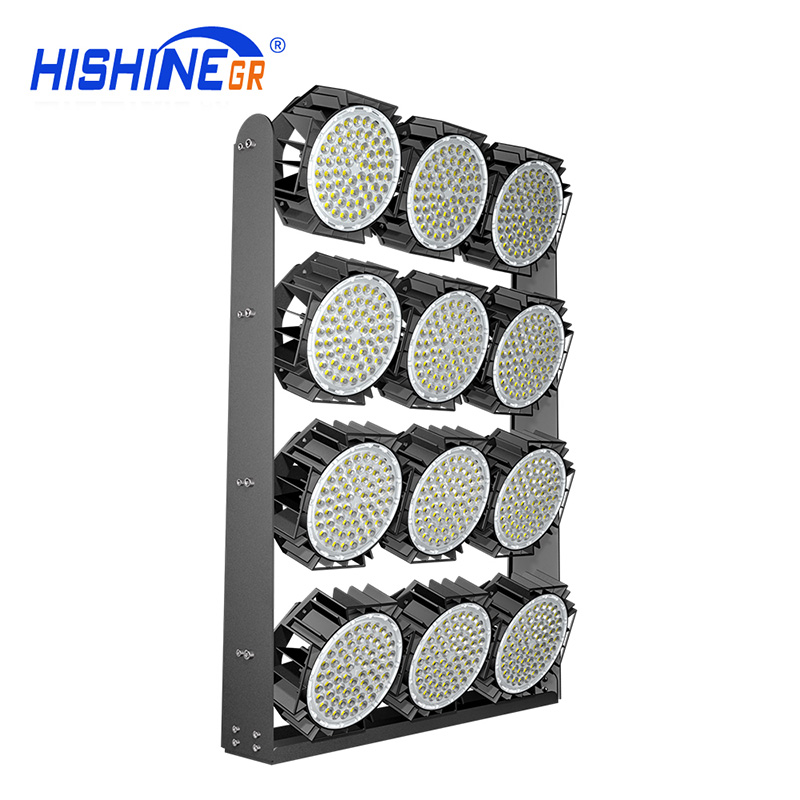

1300W stadium light, the best outdoor sports court lighting solut
