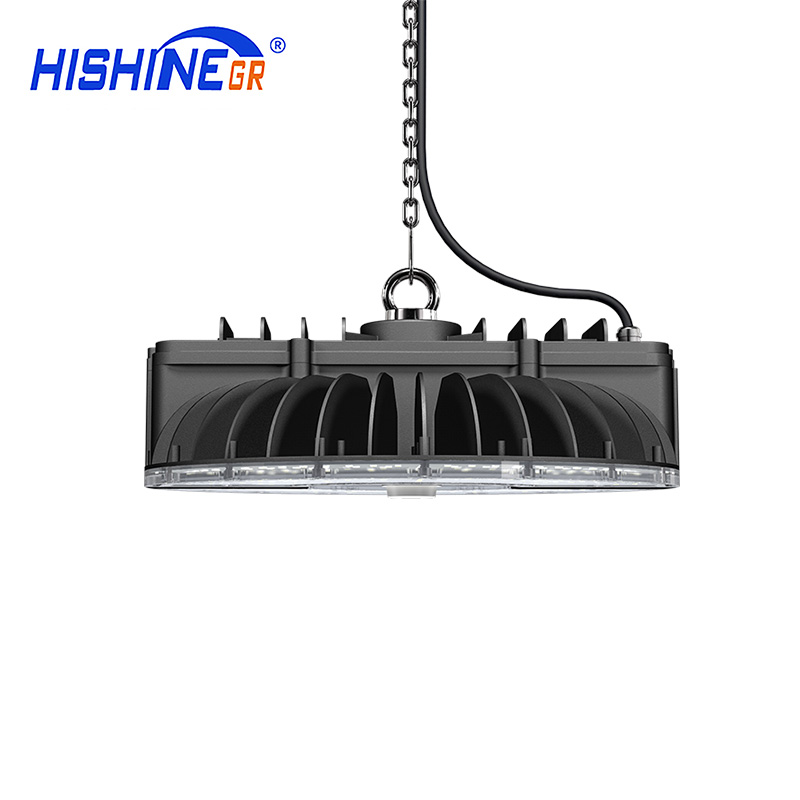

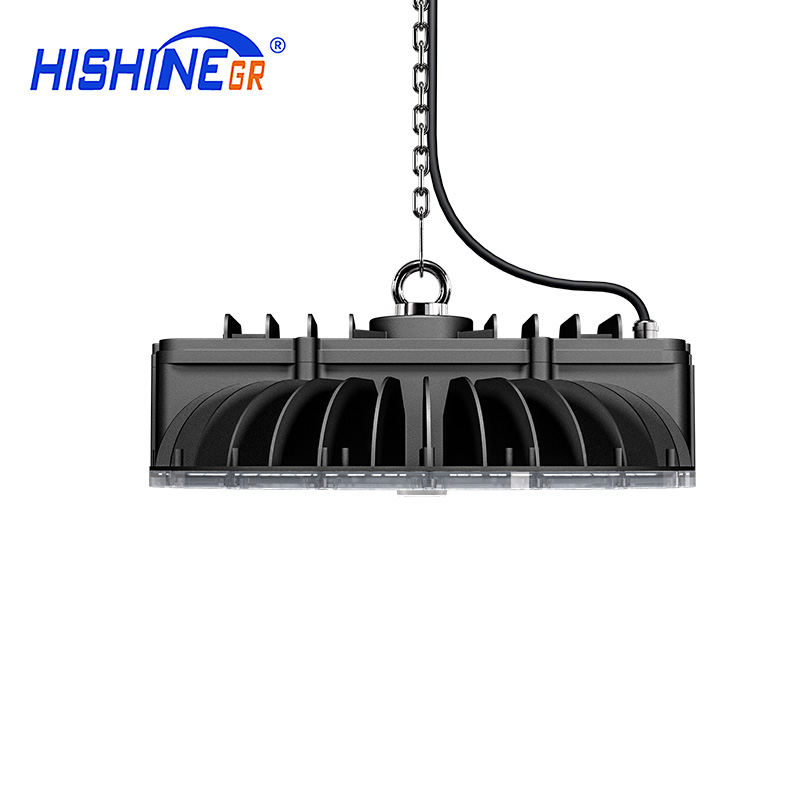

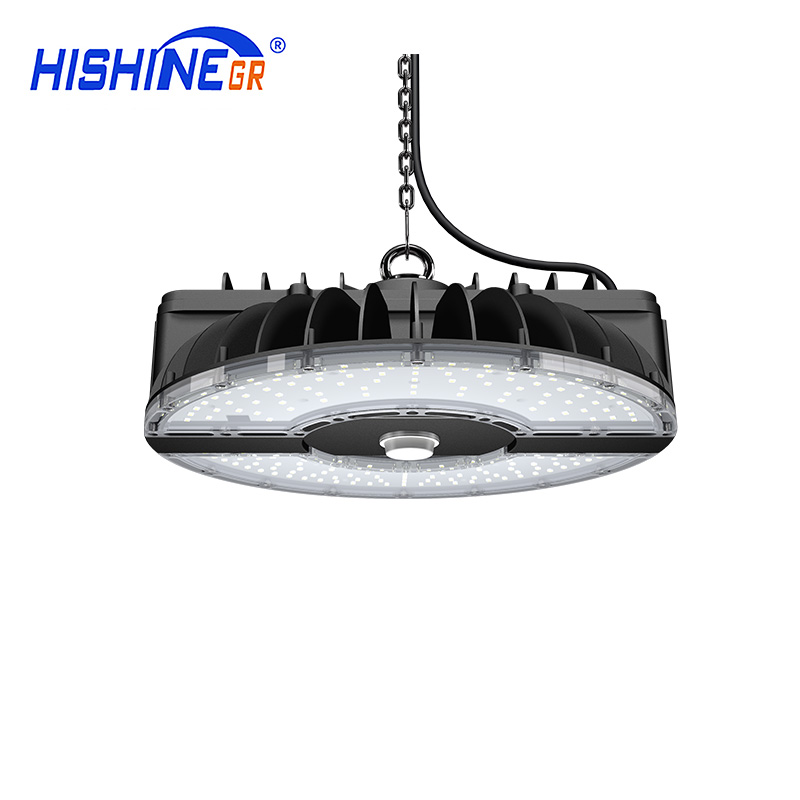

Hi-Smart H3 LED UFO High Bay Light

Product Parameters:

Wattage: 100W 150W 200W 250W
Luminous Efficacy: 152LM/W
Lumen Output: 15200lm-38000lm
Warranty: 7 years
Certification: UL,DLC,CB,CE,SAA，IP65

Product Details

Features Of H3 LED UFO High Bay Light

1. Ultra slim heat sink design makes the lamp lighter and better in heat dissipation

2.High lumen SMD3030 chip, luminous efficacy 152lm/w

3.Waterproof IP67, high thermal conductivity housing

4. Beam angle 120-degree PC lens with transmittance of 92%

5.Support all kinds of intelligent sensors(Microwave, Daylight, Camera)

Hi-Smart H3 LED UFO High Bay Light Product Parameters

Part Number	HS-HB100W-H3	HS-HB150W-H3	HS-HB200W-H3	HS-HB250W-H3
Wattage	100W	150W	200W	250W
Lumen Output	15200lm	22800lm	30400lm	38000lm
LED Quantity	154pcs	210pcs	308pcs	308pcs
Size(MM)	Φ340*H108
LED Chip	Lumileds/Cree
Luminous Efficacy	152LM/W
CCT	3000K-6500K
CRI	≥80
Beam Angle	120°
IP Rating	IP65
Working Temperature	-30℃ to +55℃
Input Voltage	AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty	7 years
Lifespan	＞50,000hrs
Material	Die-casting Aluminum housing+PC lens

Hi-Smart H3 LED UFO High Bay Light Product Specifications

Hi-Smart H3 LED UFO High Bay Light Product Decomposition

Hi-Smart H3 LED UFO High Bay Light IP Rating IP65

Silicon rubber ring sealing process, IP grade reach IP65,completely prevent dust invasion and heavy rain.

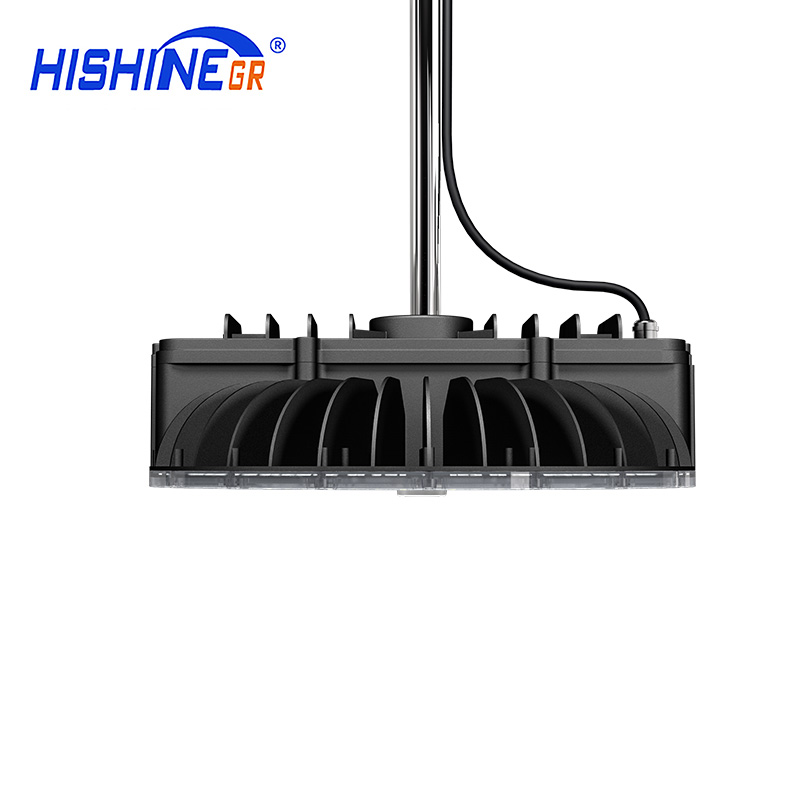

Hi-Smart H3 LED UFO High Bay Light Multiple Mounting Options

Hi-Smart H3 LED UFO High Bay Light Applications

Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.
