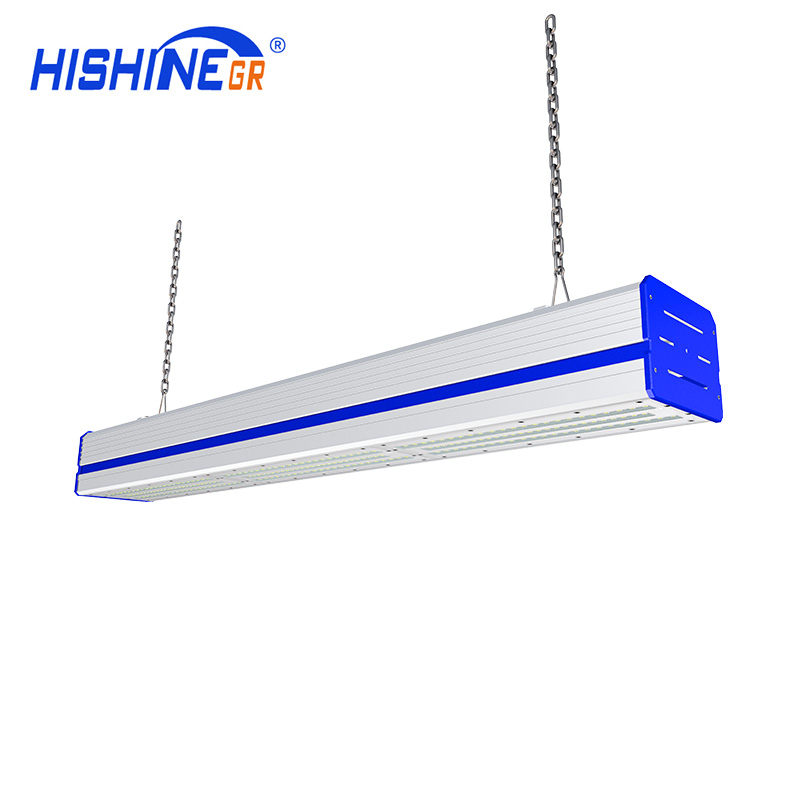

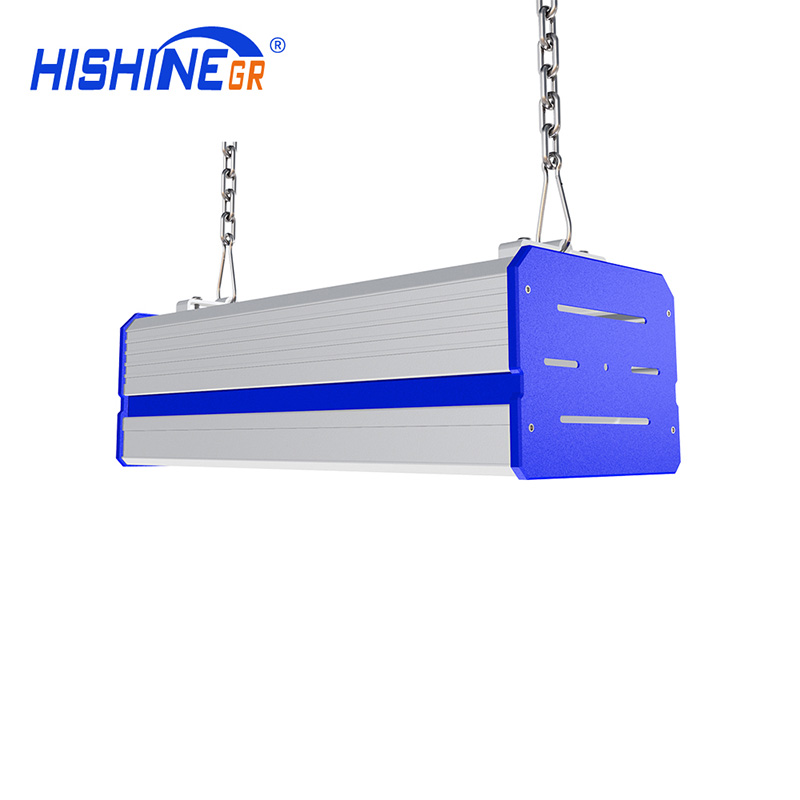

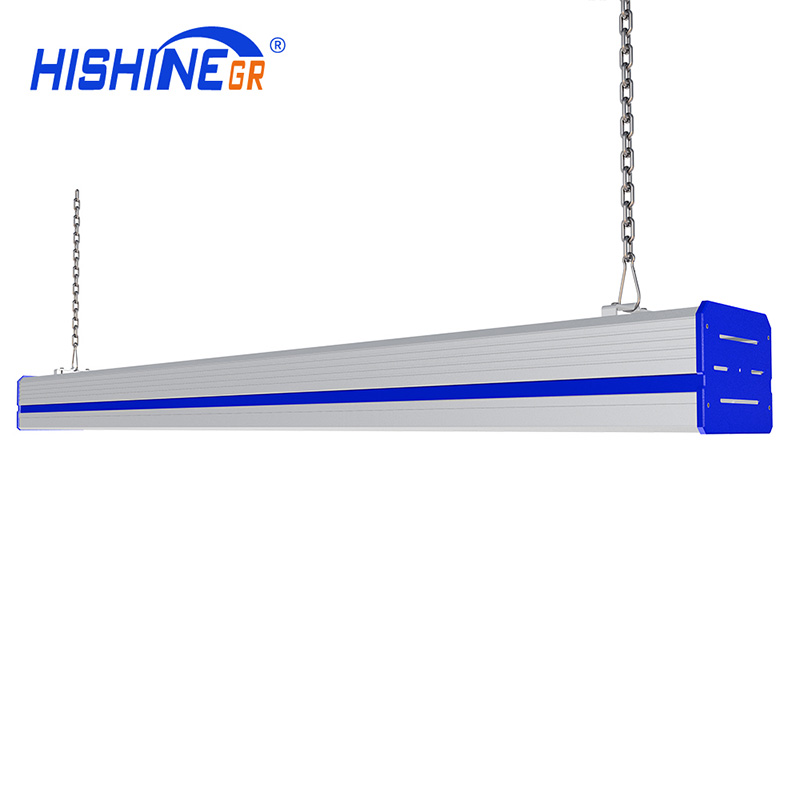

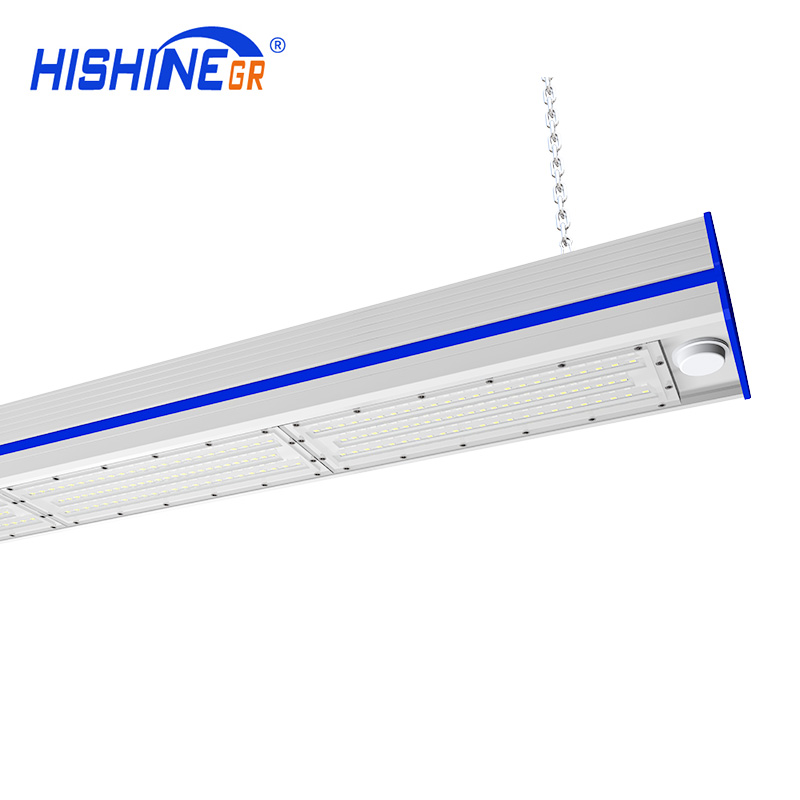

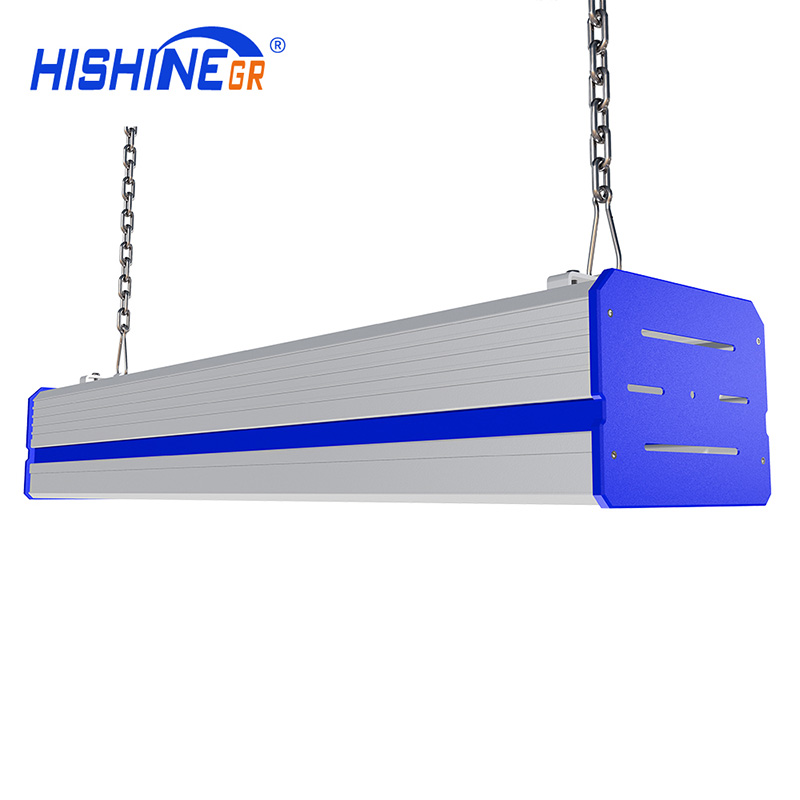

K1 LED Linear High Bay Light

Product Parameters:

  • Wattage: 50W 100W 150W 200W 250W
  • Luminous Efficacy: 152LM/W
  • Lumen Output: 7600lm-38000lm
  • Warranty: 7 years
  • Certification: UL,DLC,CB,CE,SAA,SASO,IP65

Product Details

HS-HB-K1 linear LED luminairies deliver a high lumen output to replace legacy HID and 2-, 4- or 6-lamp T5HO fluorescent fixtures in both low bay and high bay applications. The HS-HB-K1 family of linear LED high bay fixtures are available in six different wattages including 50W,100W, 150W, 200W, 250W. They’re designed to replace 500W HID equivalents while achieving up to 75% energy savings. Rugged construction and sophisticated LED technology add unparalleled energy efficiency and reliability for years of maintenance-free operation.

The HS-HB-K1 linear high bay delivers industry-leading performance with an extremely attractive payback advantage. The full body assembly features a value-optimized chassis design and is made of extruded aluminum that provides durable protection and optimal heat dissipation for LEDs, optics and electrical components. The high flux density SMD LEDs produce 152 lm/W system efficacy (lensed). Combined with perfectly matched driving circuit with full featured protections as well as superior thermal management, HS-HB-K1 LED modules offer an extraordinary lumen maintenance greater than 90 percent at 50,000 hours and projected life over 200,000 hours.

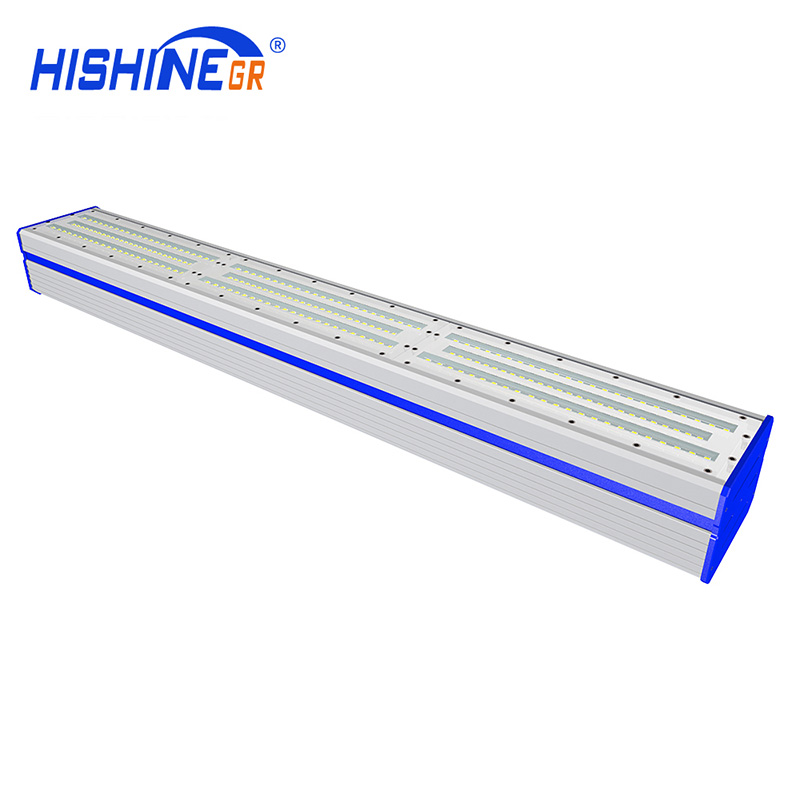

K1 LED Linear High Bay Light Product Decomposition

•  Separate heat sink for driver and Led chip

•  Three-dimensional diamond light guide technology

•  Beam angle 60° /90° /120° with transparent / frosted PC lens available

•  Endless Connection

• Colorful housing can be customized

K1 LED Linear High Bay Light Product Specifications

K1 LED Linear High Bay Light Product Parameters

Part Number HS-HB50W-K1 HS-HB100W-K1 HS-HB150W-K1 HS-HB200W-K1 HS-HB250W-K1
Wattage 50W 100W 150W 200W 250W
Lumen Output 7600lm 15200lm 22800lm 30400lm 38000lm
LED Quantity 77pcs 154pcs 231pcs 308pcs 308pcs
Size(MM) L305*W122*H95 L600*W122*H95 L895*W122*H95 L1190*W122*H95 L1190*W122*H95
LED Chip Lumileds/Cree
Luminous Efficacy 152LM/W
CCT 3000K-6500K
CRI ≥80
Beam Angle 60°/90°/120°
IP Rating IP65
Working Temperature -30℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, >0.92
Warranty 7 years
Lifespan >50,000hrs
Material Die-casting Aluminum housing+PC lens

K1 LED Linear High Bay Light Intelligent Control

K1 LED Linear High Bay Lighting includes 0-10V Dimming,Timer Control, Zigbee Control , Occupancy sensor,DALI Control,Emergency power supply

K1 LED Linear High Bay Light Milky Lens And Transparent Lens

K1 LED Linear High Bay Lighting Milky Lens And Transparent Lens.Multiple option.including 60°/90°/120°

K1 LED Linear High Bay Light IP Rating IP65

Silicon rubber ring sealing process, IP grade reach IP65,completely prevent dust invasion and heavy rain.

K1 LED Linear High Bay Light Multiple Mounting Options

K1 LED UFO High Bay Light Applications

Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.
