Description
Features:
1. Mainstream integrated structured design, saving transportation costs.
2. Bridgelux chips 3030 (Lifetime 100000 hours).
3. imported high-efficiency monocrystalline silicon.
4. The whole lamp can be 30′ adjustable.
5. Built-in large-capacity LifePO4 battery
6. The beam angle is 70°140″, Asymmetric 30.
7. Easy to install and disassemble, convenient maintenance.
8. With 4 lighting modes, flexible to switch via remote control.
9. Remote control distance of up to 15 meters.
Product Details:
1.Smart Sensor: Multifunctional microwave induction.
2.Induction Range: 130° induction angle, 10 meters induction distance
3.Smart Remote: There are multi-working modes, you can change the working mode are you need.
4.Bridgelux Chips 3030: High Brightness, lifetime 100,000 hours.
5.Solar Panle: High-efficiency solar panel, >21% photoelectric conversion rate, special surface treatment.
6.Thickened Aluminum Die-Casting Shell: The shell is made of ADC12 die-casting aluminum, which has high temperature resistance anti-corrosion, effecticely guarantees the service life of the lamps.
7.The Whole Lamp IP66 Ingress Protection: Lamp with silicone waterproof sealing striop, UV-resistant without failure.
Smart Sensing
Microwave Induction: When the sensor detects the movement of the human or object, the light will turn on. the sensing distance is about 10 meters.

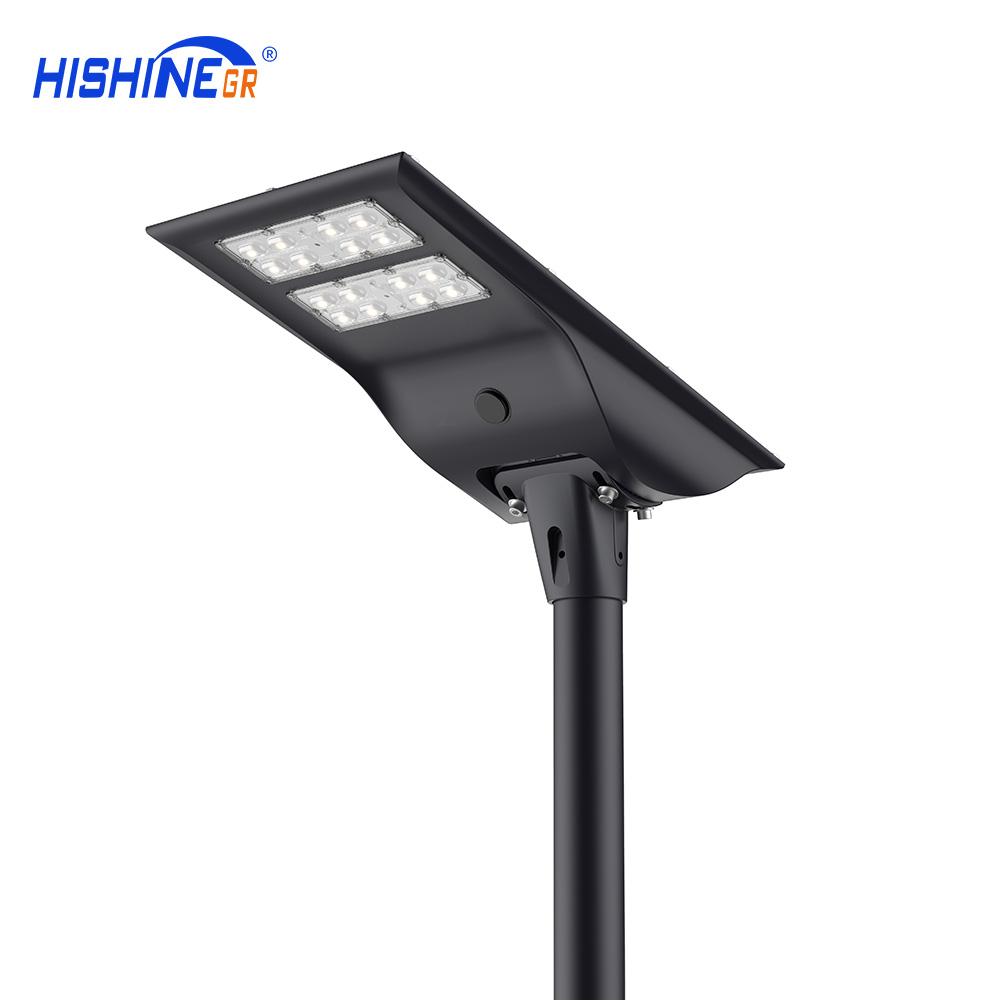

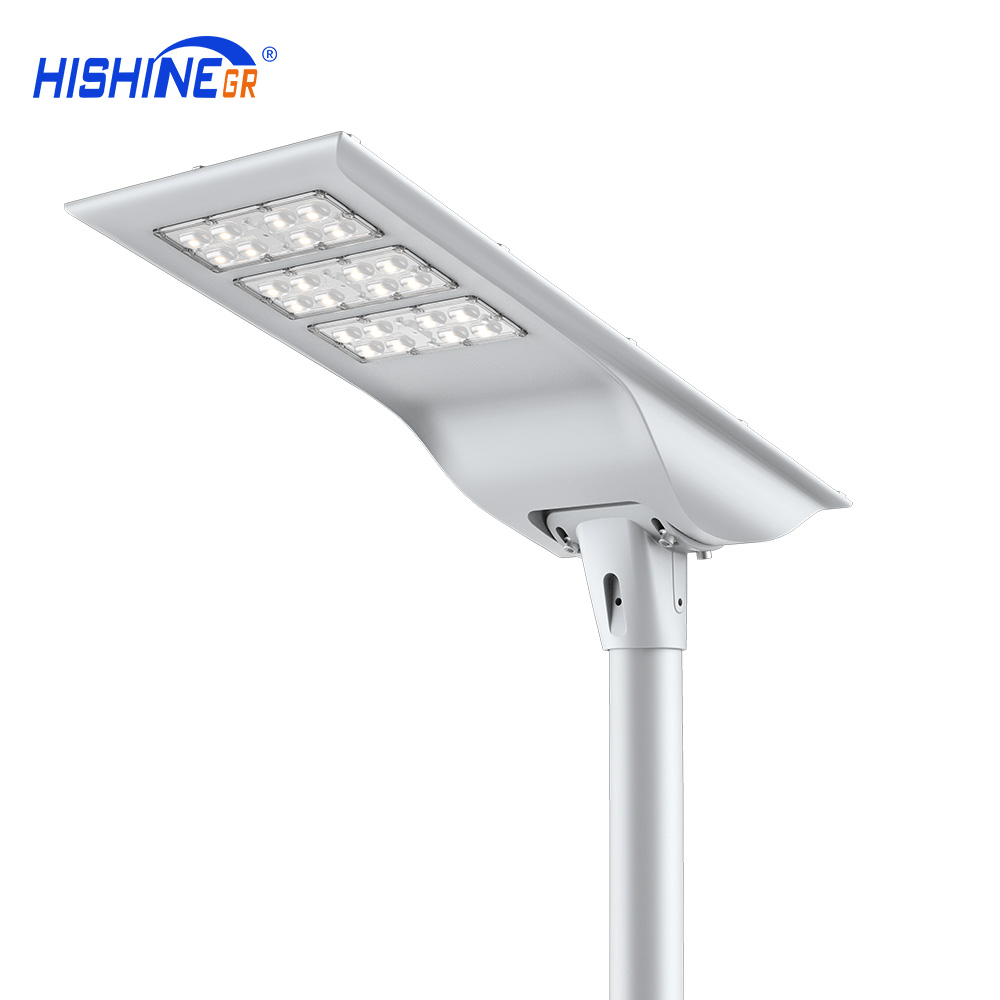

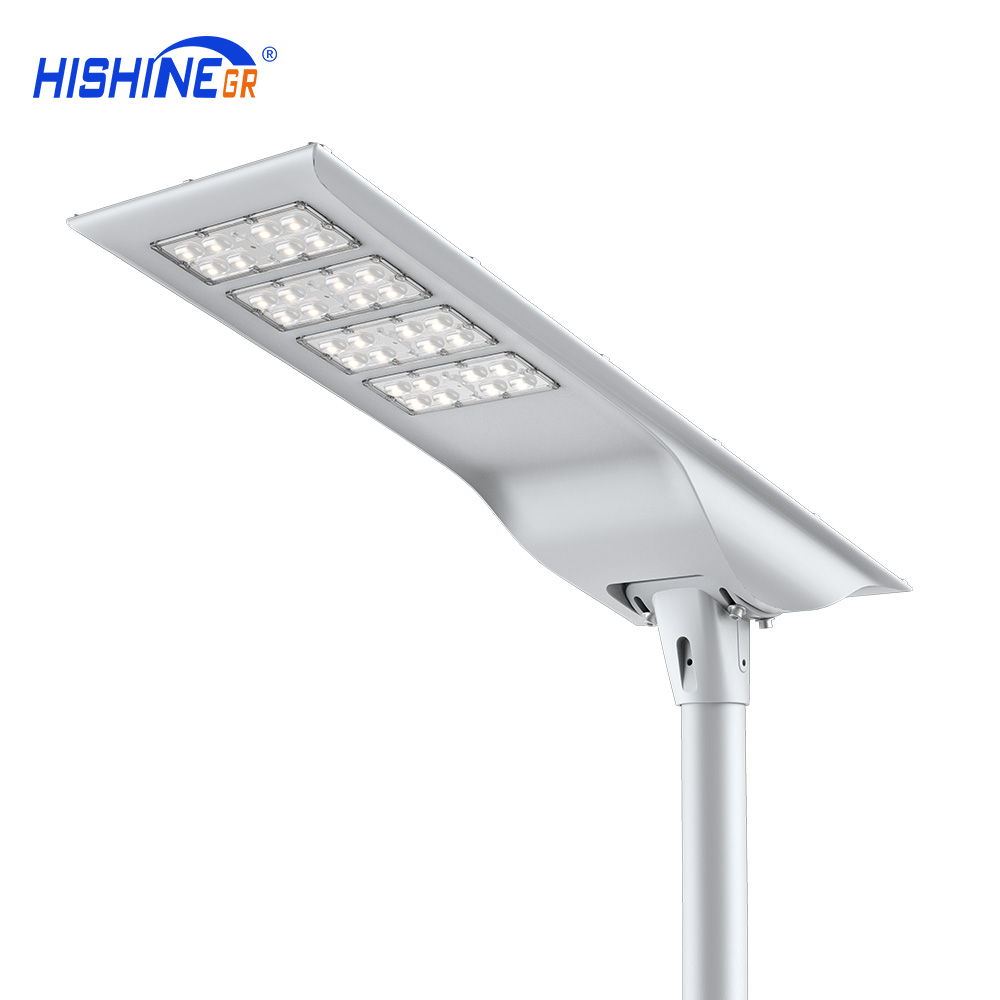

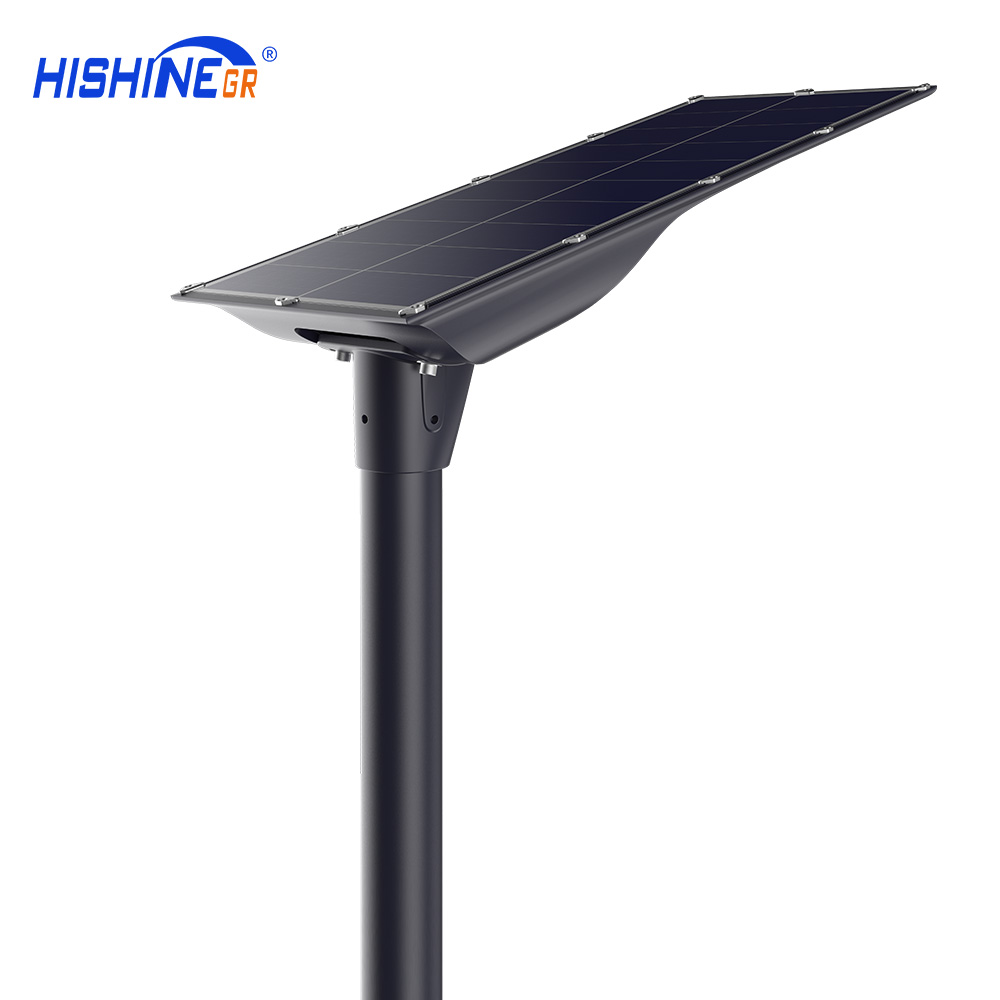

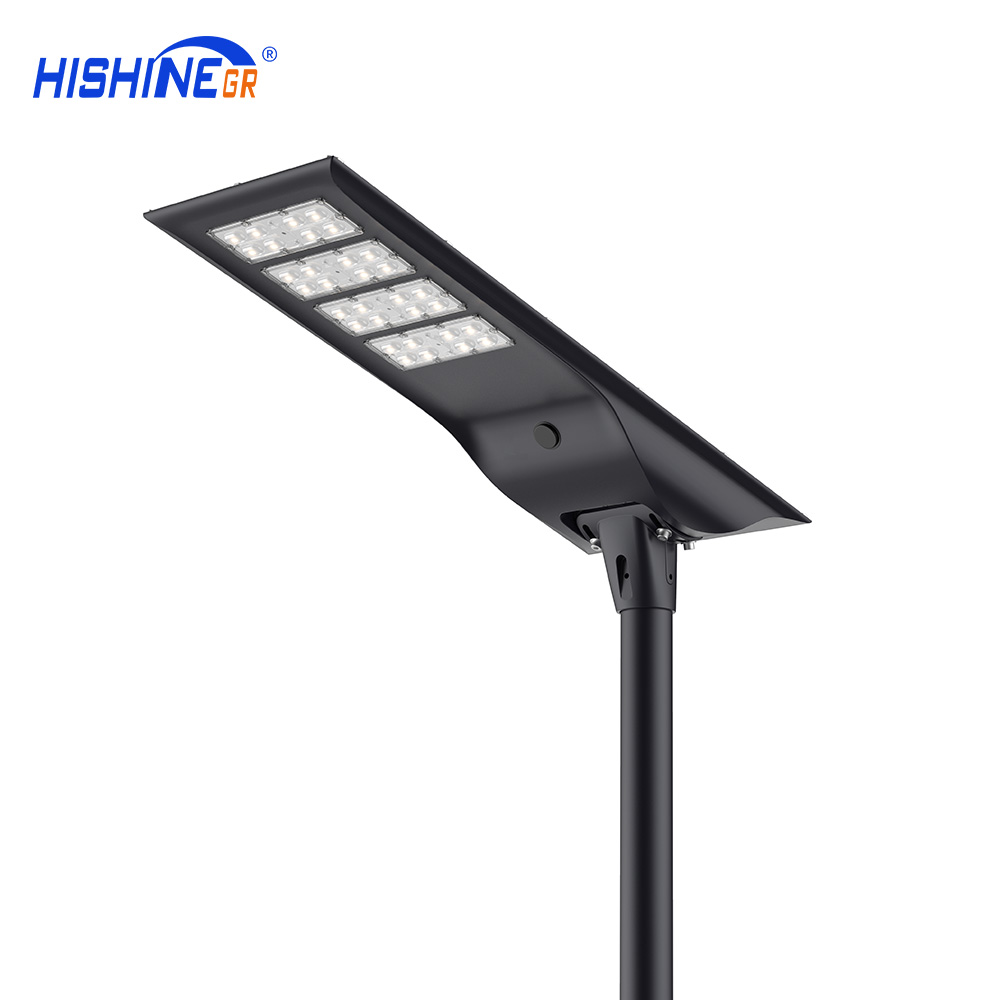

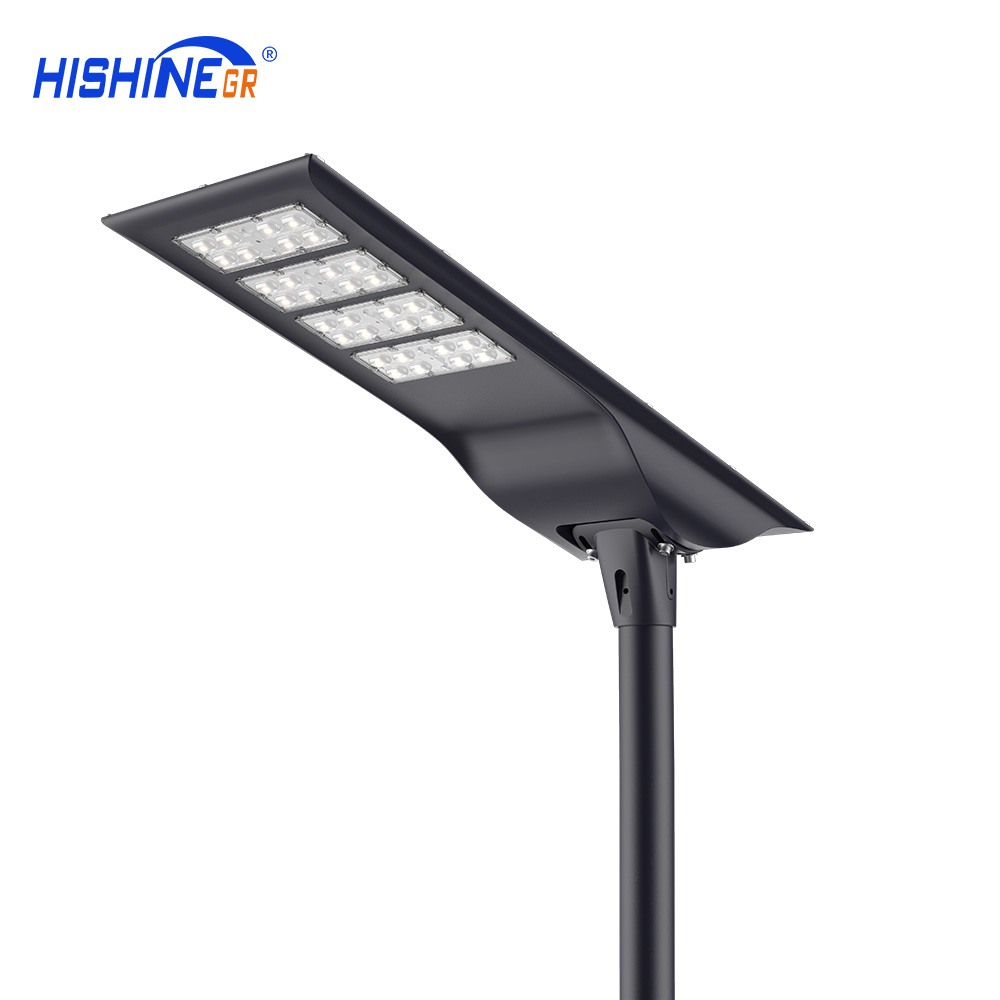

Actual Picture
Datasheet
| Model | HS-SSL-30W | HS-SSL-40W | HS-SSL-60W | HS-SSL-80W | HS-SSL-100W | HS-SSL-120W |
| Solar Panel | 6V, 30W | 6V, 40W | 6V, 42W | 6V, 50W | 6V, 55W | 6V, 65W |
| Lithium Battery | 80WH,3.2V | 116WH,3.2V | 144WH, .2V | 192WH,3.2V | 240WH,3.2V | 288WH,3.2V |
| CCT | 2700-6500K | |||||
| Lumen Efficiency | 180LPW | |||||
| Charging Time | 6-8 hours | |||||
| Working Time | 12-15 hours(5-7 rainy days) | |||||
| Control Mode | Time control+Microwave induction or Infrared induction | |||||
| IP Rating | IP66 | |||||
| Mounting Height | 4-6 meters | 5-7 meters | 6-8 meters | 9-10 meters | 10-11 meters | |
| Installing Space
Between 2 Lamps |
10-22 meters | |||||
| Warranty | 3 years | |||||
| Product Size(mm) | 697*361*209 | 846*361*209 | 1096*361*209 | |||
| Net Weight(KG) | 7 | 7.7 | 9 | 9.5 | 11 | 11.7 |
Applications:
1. Highway: Hi-Small LED solar street light provides powerful light efficacy and an independent heat dissipation system, with an intelligent control system（LoRa/DALI/ZigBee…）, it can be easily managed without leaving the center room.
2. Urban Roads: A sleek and modern design that blends well with contemporary urban environments. They are also compact and lightweight, making them easy to install and maintain.
3. Outdoor Way & Parking Lot: Hi-Small LED solar street light is equipped with advanced sensors and controls that allow for remote monitoring and adjustment of lighting levels. This ensures that energy is not wasted by lighting areas that are not in use and that the lighting is optimized for maximum efficiency.
